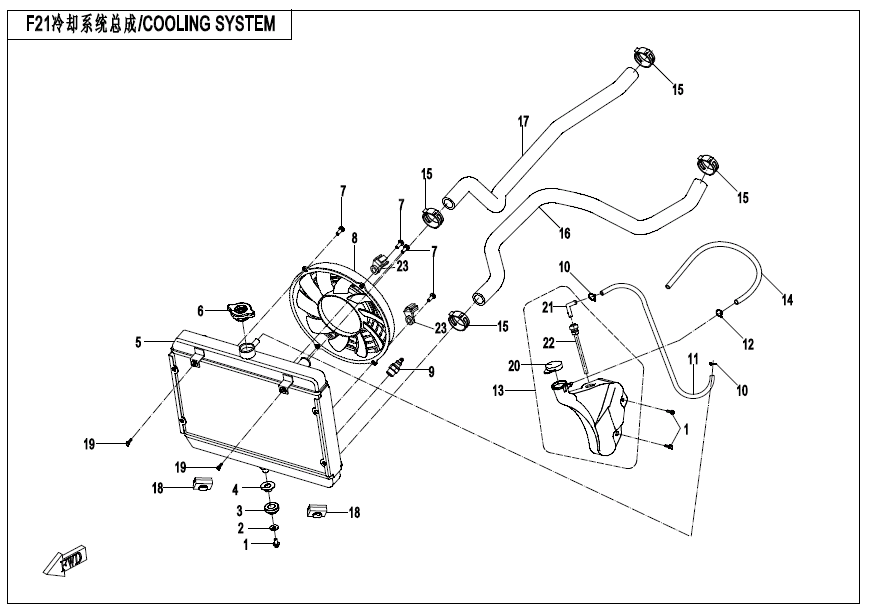

COOLING SYSTEM - F21 　

COOLING SYSTEM - F21 　

No.

01
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Alternative parts: 30006-060012810
Specification: M6x12
Price: 1,50 € : 1,50 €
02
P/N (SKU): 30301-060442
Part Name: WASHER
Remarks: φ10
Alternative parts: 30301-060412
Specification: 6
Price: 1,50 € : 1,50 €
03
P/N (SKU): 9010-180004
Part Name: RUBBER SLEEVE, RADIATOR
Alternative parts:
Price: 6,00 € : 6,00 €
-+
04
P/N (SKU): 9010-180010
Part Name: STEEL SLEEVE, RADIATIOR
Alternative parts:
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 9010-180100
Part Name: RADIATOR ASSY
Remarks: is replaced by 9010-180100-1000
Alternative parts: 9010-180100-1000
Price: 158,00 € : 158,00 €
05
P/N (SKU): 9010-180100-1000
Part Name: RADIATOR ASSY
Alternative parts:
Specification: STAINLESS STEEL
Price: 171,00 € : 171,00 €
-+
06
P/N (SKU): 9010-180300
Part Name: CAP, WATER FILLER
Alternative parts: 8010-180024
Price: 7,50 € : 7,50 €
07
P/N (SKU): 30112-060012440
Part Name: SCREW COMP
Alternative parts:
Specification: M6×12
Price: 2,00 € : 2,00 €
-+
07
P/N (SKU): 30006-060020840
Part Name: BOLT M6x20
Alternative parts: 30006-060020810
Specification: M6x20
Price: 1,50 € : 1,50 €
08
P/N (SKU): 9010-180200
Part Name: FAN&MOTOR
Remarks: CHANGXIN；is replaced by 9010-180200-3000+9010-180201
Alternative parts: 9010-180200-3000+9010-180201
Price: 64,00 € : 64,00 €
08
P/N (SKU): 9010-180200-A000
Part Name: FAN&MOTOR
Remarks: HUALIN；isreplaced by 9010-180200-3000+9010-180201
Alternative parts: 9010-180200-3000+9010-180201
Price: 63,00 € : 63,00 €
09
P/N (SKU): 0010-135000
Part Name: THERMO SWITCH
Remarks: 80±4℃,Non-waterproofed
Alternative parts:
Price: 16,00 € : 16,00 €
-+
10
P/N (SKU): 30601-112010
Part Name: CLAMP A12
Alternative parts:
Specification: A12
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 8060-180001
Part Name: WATER HOSE, RESERVOIR TANK
Alternative parts:
Price: 7,50 € : 7,50 €
-+
12
P/N (SKU): 30601-108510
Part Name: CLAMP A8.5
Remarks: is replaced by 30601-108520
Alternative parts: 30601-109010
Price: 3,50 € : 3,50 €
13
P/N (SKU): 9010-180400-1000
Part Name: RESERVOIR TANK ASSY
Alternative parts:
Price: 16,00 € : 16,00 €
-+
14
P/N (SKU): 9010-180005
Part Name: OVERFLOW HOSE, RESERVOIR TANK
Alternative parts:
Price: 8,00 € : 8,00 €
-+
15
P/N (SKU): 0180-023500-0030
Part Name: CLAMP, WATER HOSE
Alternative parts: 9010-180007
Price: 3,00 € : 3,00 €
16
P/N (SKU): 9010-180002
Part Name: WATER OUTLET HOSE,RADIATOR
Alternative parts:
Price: 22,00 € : 22,00 €
-+
17
P/N (SKU): 9010-180003
Part Name: WATER INLET HOSE,RADIATOR
Alternative parts:
Price: 22,00 € : 22,00 €
-+
18
P/N (SKU): 5190-001003
Part Name: RUBBER CUSHION, MAIN STAND
Alternative parts:
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 30006-060025840
Part Name: BOLT
Alternative parts: 30006-060025810
Specification: M6X25
Price: 1,50 € : 1,50 €
20
P/N (SKU): 8010-180023
Part Name: CAP, RESERVOIR TANK
Alternative parts:
Price: 3,00 € : 3,00 €
-+
21
P/N (SKU): 8030-180302
Part Name: JOINT
Alternative parts:
Price: 2,00 € : 2,00 €
-+
22
P/N (SKU): 8010-180028
Part Name: HOSE, RESERVOIR TANK
Alternative parts:
Price: 2,00 € : 2,00 €
-+
23
P/N (SKU): 9030-180071
Part Name: JOINT, CLIP
Alternative parts:
Price: 1,50 € : 1,50 €
-+
