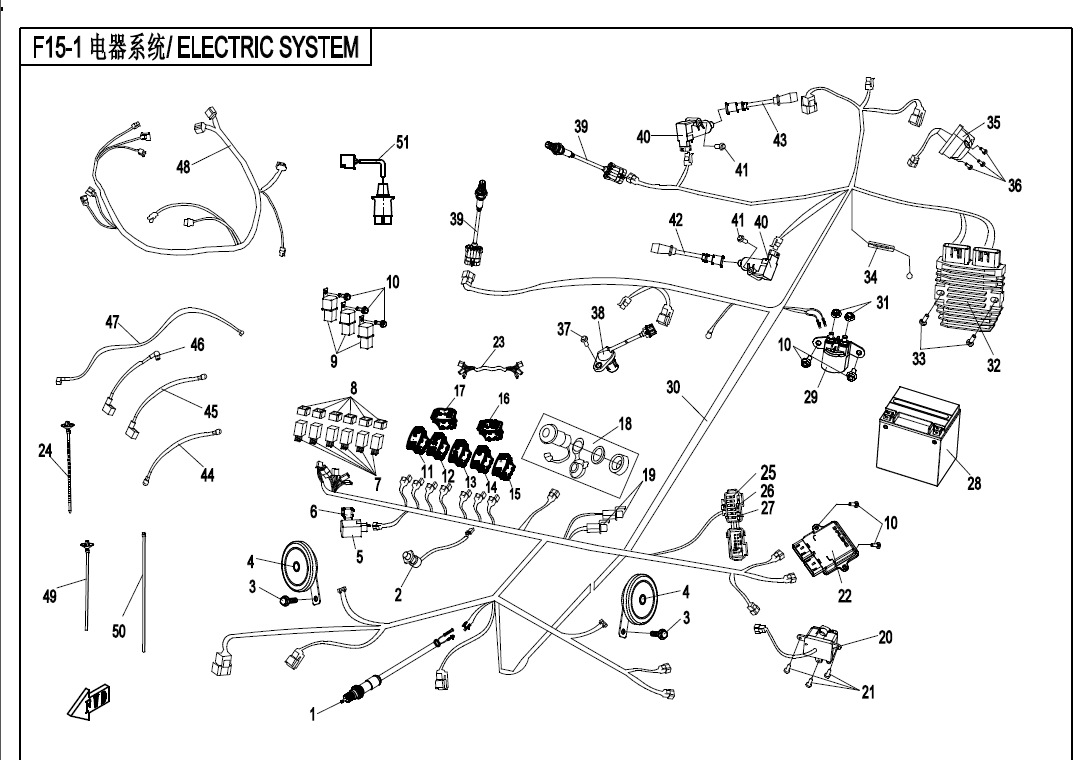

ELECTRIC SYSTEM - F15-1

ELECTRIC SYSTEM - F15-1

No.

01
P/N (SKU): 9010-150500
Part Name: REAR BRAKE SWITCH
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
02
P/N (SKU): 8030-150300
Part Name: ADJUSTING BUTTON, CLOCK
Effective: 2021-02-26
Alternative parts: null
Specification: WITH WIRE
Price: 5,00 € : 5,00 €
03
P/N (SKU): 30006-080014840
Part Name: null
Effective: 2021-02-26
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
04
P/N (SKU): 6060-150600
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts: null
Price: 10,00 € : 10,00 €
-+
05
P/N (SKU): 4020-150340
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts: null
Price: 19,00 € : 19,00 €
-+
06
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
07
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts: null
Price: 7,00 € : 7,00 €
-+
08
P/N (SKU): 9010-150002
Part Name: AUXILIARY RELAY RUBBER RING
Effective: 2021-02-26
Alternative parts: null
Price: 4,50 € : 4,50 €
-+
09
P/N (SKU): 8030-151400
Part Name: DIVERTER RELAY
Effective: 2021-02-26
Alternative parts: null
Price: 9,50 € : 9,50 €
-+
10
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts: 30006-060012810
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
11
P/N (SKU): 7000-151400
Part Name: OVERRIDE SWITCH
Effective: 2021-02-26
Alternative parts: null
Specification: ODRINARY
Price: 11,00 € : 11,00 €
12
P/N (SKU): 7000-151300
Part Name: HORN SWITCH
Effective: 2021-02-26
Alternative parts: null
Specification: ODRINARY
Price: 11,00 € : 11,00 €
13
P/N (SKU): 7000-151200
Part Name: DIMMER SWITCH
Effective: 2021-02-26
Alternative parts: null
Specification: ODRINARY
Price: 11,00 € : 11,00 €
14
P/N (SKU): 7000-151100
Part Name: ILLUMINATION SWITCH
Effective: 2021-02-26
Alternative parts: null
Specification: ODRINARY
Price: 11,00 € : 11,00 €
15
P/N (SKU): 7000-151600
Part Name: HAZARD SWITCH
Effective: 2021-02-26
Alternative parts: null
Specification: ORDINARY
Price: 11,00 € : 11,00 €
16
P/N (SKU): 7000-151000
Part Name: STOP SWITCH, ENGINE
Effective: 2021-02-26
Alternative parts: null
Specification: ODRINARY
Price: 11,00 € : 11,00 €
17
P/N (SKU): 7000-151500
Part Name: TURNING SWITCH
Effective: 2021-02-26
Alternative parts: null
Specification: ORDINARY
Price: 11,00 € : 11,00 €
18
P/N (SKU): 7020-150500
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-02-26
Alternative parts: null
Specification: ORDINARY
Price: 16,00 € : 16,00 €
-+
19
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
20
P/N (SKU): 7030-160700
Part Name: 2WD/4WD SWITCH ASSY
Effective: 2021-02-26
Alternative parts: 7030-160700-00001/7030-160700-00002
Specification: ORDINARY
Price: 26,00 € : 26,00 €
-+
21
P/N (SKU): 30110-480160040
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts: 30110-480160010
Specification: ST4.8x16@ARMY GREEN
Price: 1,50 € : 1,50 €
22
P/N (SKU): 0800-174000-2000
Part Name: ECU ASSY
Effective: 2021-02-26
Remarks: Only used for Z8。If used for U8,it is only for AUSTRALIA
Alternative parts: null
Specification: FOR ZFORCE 800 ONLY, DELPHI MT05.3
Price: 214,00 € : 214,00 €
23
P/N (SKU): 7000-152100
Part Name: SWITCH ADAPTOR CABLE
Effective: 2021-02-26
Alternative parts: null
Price: 4,50 € : 4,50 €
24
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 8080-151301
Part Name: FUSE 5A
Effective: 2021-02-26
Alternative parts: null
Specification: 5A
Price: 1,50 € : 1,50 €
26
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-02-26
Alternative parts: null
Specification: 10A
Price: 2,50 € : 2,50 €
-+
27
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2021-02-26
Alternative parts: null
Specification: 15A
Price: 1,50 € : 1,50 €
28
P/N (SKU): 31023000
Part Name: BATTERY
Effective: 2021-02-26
Remarks: 30A,DYNOVOLT
Alternative parts: 31023004
Specification: DYNOVOLT, 12V30Ah
Price: 158,00 € : 158,00 €
29
P/N (SKU): 5270-150500
Part Name: STARTER RELAY
Effective: 2021-02-26
Alternative parts: null
Price: 24,00 € : 24,00 €
-+
30
P/N (SKU): 7000-150100-1000
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: FOR BLACK AND WHITE SCREEN DASHBOARD,is replaced by 7000-150100-30000
Alternative parts: 7000-150100-30001
Price: 178,00 € : 178,00 €
31
P/N (SKU): 30202-060110
Part Name: HEXAGON NUTS FLANGE
Effective: 2021-02-26
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMI
Price: 1,50 € : 1,50 €
32
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts: null
Specification: 330W
Price: 104,00 € : 104,00 €
-+
33
P/N (SKU): 30006-060030840
Part Name: BOLT M6x30
Effective: 2021-02-26
Alternative parts: 30006-060030810
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
34
P/N (SKU): 7030-150111
Part Name: FUSE 25A
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
35
P/N (SKU): 7020-150800
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Alternative parts: null
Specification: ORDINARY
Price: 16,00 € : 16,00 €
-+
36
P/N (SKU): 30105-050030410
Part Name: PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2021-02-26
Alternative parts: null
Specification: M5x30
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 30006-060020840
Part Name: BOLT M6x20
Effective: 2021-02-26
Alternative parts: 30006-060020810
Specification: MILITARY GREEN
Price: 1,50 € : 1,50 €
38
P/N (SKU): 7020-150400
Part Name: SPEED SENSOR
Effective: 2021-02-26
Alternative parts: null
Price: 34,00 € : 34,00 €
-+
39
P/N (SKU): 0800-176000
Part Name: OXYGEN SENSOR
Effective: 2021-02-26
Alternative parts: null
Price: 128,00 € : 128,00 €
-+
40
P/N (SKU): 0800-178000
Part Name: IGNITION COIL
Effective: 2021-02-26
Alternative parts: null
Price: 47,00 € : 47,00 €
-+
41
P/N (SKU): 30006-060040840
Part Name: null
Effective: 2021-02-26
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
42
P/N (SKU): 0800-179100
Part Name: HIGH-TENSION CABLE ASSY 1
Effective: 2021-02-26
Alternative parts: 0800-179100-10000
Price: 13,00 € : 13,00 €
43
P/N (SKU): 0800-179200
Part Name: HIGH-TENSION CABLE ASSY 2
Effective: 2021-02-26
Alternative parts: 0800-179200-10000
Price: 13,00 € : 13,00 €
44
P/N (SKU): 7000-150620
Part Name: STARTER MOTOR NEGATIVE CABLE
Effective: 2021-02-26
Alternative parts: null
Price: 15,00 € : 15,00 €
45
P/N (SKU): 7000-150610
Part Name: NEGATIVE CABLE, BATTERY
Effective: 2021-02-26
Alternative parts: 700V-150420-1500
Price: 26,00 € : 26,00 €
46
P/N (SKU): 7000-150510
Part Name: POSITIVE CABLE, BATTERY
Effective: 2021-02-26
Alternative parts: 700V-150410-1500
Price: 17,00 € : 17,00 €
47
P/N (SKU): 7000-150520
Part Name: STARTER MOTOR POSITIVE CABLE
Effective: 2021-02-26
Alternative parts: null
Price: 33,00 € : 33,00 €
48
P/N (SKU): 7000-150200-00001
Part Name: EFI AUXILIARY CABLE
Effective: 2021-02-26
Alternative parts: null
Specification: ORDINARY
Price: 185,00 € : 185,00 €
49
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
50
P/N (SKU): 9010-150004
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
51
P/N (SKU): 9010-151020
Part Name: TRAILER POWER ADAPTOR SEAT
Effective: 2021-02-26
Alternative parts: null
Price: 16,00 € : 16,00 €
-+
