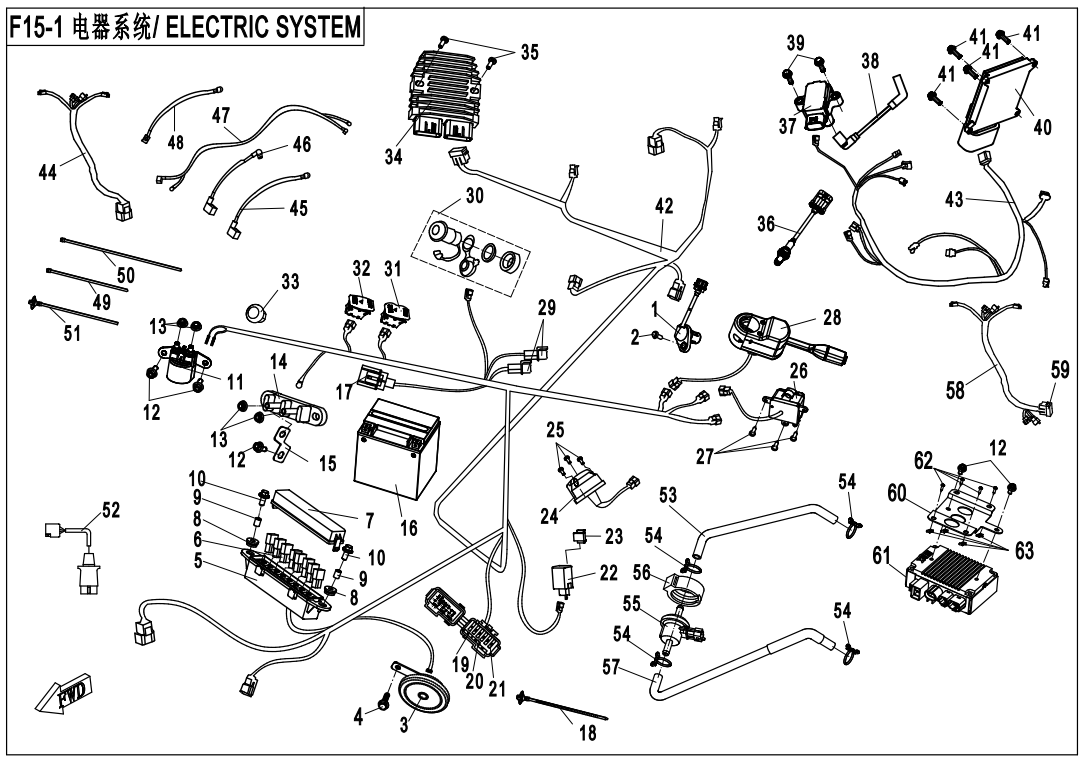

ELECTRIC SYSTEM - F15-1

ELECTRIC SYSTEM - F15-1

No.

01
P/N (SKU): 0GR0-011020
Part Name: SPEEDOMETER SENSOR
Effective: 2021-02-26
Alternative parts: null
Price: 37,00 € : 37,00 €
-+
02
P/N (SKU): 0010-090005
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 0010-090005-0010
Specification: M6x16
Price: 1,50 € : 1,50 €
03
P/N (SKU): 6060-150600
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts: null
Price: 10,00 € : 10,00 €
-+
04
P/N (SKU): 30006-080014810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 7020-040411
Part Name: RELAY BOX
Effective: 2021-02-26
Alternative parts: null
Price: 7,50 € : 7,50 €
-+
06
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts: null
Price: 7,00 € : 7,00 €
-+
07
P/N (SKU): 7020-040412
Part Name: COVER, RELAY BOX
Effective: 2021-02-26
Alternative parts: 7020-040412-10000
Price: 6,50 € : 6,50 €
08
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 6090-040303
Part Name: BUSHING
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 5270-150500
Part Name: STARTER RELAY
Effective: 2021-02-26
Alternative parts: null
Price: 24,00 € : 24,00 €
-+
12
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
13
P/N (SKU): 30202-060110
Part Name: HEXAGON NUTS FLANGE
Effective: 2021-02-26
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMI
Price: 1,50 € : 1,50 €
14
P/N (SKU): 7030-151611
Part Name: TERMINAL, CABLE
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
15
P/N (SKU): 7030-151612
Part Name: GROUND CONNECTOR
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
16
P/N (SKU): 31023000
Part Name: BATTERY
Effective: 2021-02-26
Remarks: 30A,DYNOVOLT
Alternative parts: 31023004
Specification: DYNOVOLT, 12V30Ah
Price: 158,00 € : 158,00 €
17
P/N (SKU): 7020-150111
Part Name: CHIP-TYPE FUSE 30A
Effective: 2021-02-26
Alternative parts: null
Specification: 30A
Price: 4,00 € : 4,00 €
18
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 8080-151301
Part Name: FUSE 5A
Effective: 2021-02-26
Alternative parts: null
Specification: 5A
Price: 1,50 € : 1,50 €
20
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-02-26
Alternative parts: null
Specification: 10A
Price: 2,50 € : 2,50 €
-+
21
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2021-02-26
Alternative parts: null
Specification: 15A
Price: 1,50 € : 1,50 €
22
P/N (SKU): 4020-150340
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts: null
Price: 19,00 € : 19,00 €
-+
23
P/N (SKU): 8010-470003
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts: 9010-150002
Price: 1,50 € : 1,50 €
24
P/N (SKU): 9010-151010-1000
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Remarks: LOF
Alternative parts: null
Specification: LOF
Price: 15,00 € : 15,00 €
-+
24
P/N (SKU): 7020-150800-1000
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Remarks: Sumitomo
Alternative parts: null
Specification: SUMITOMO PLUG
Price: 21,00 € : 21,00 €
24
P/N (SKU): 7020-150800
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Alternative parts: null
Specification: ORDINARY
Price: 16,00 € : 16,00 €
-+
25
P/N (SKU): 30105-050030410
Part Name: PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2021-02-26
Alternative parts: null
Specification: M5x30
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 7030-160700
Part Name: 2WD/4WD SWITCH ASSY
Effective: 2021-02-26
Alternative parts: 7030-160700-00001/7030-160700-00002
Specification: ORDINARY
Price: 26,00 € : 26,00 €
-+
26
P/N (SKU): 7030-160700-10000
Part Name: 2WD/4WD SWITCH ASSY
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts: 7030-160700-10002
Specification: SUMITOMO PLUG
Price: 35,00 € : 35,00 €
-+
27
P/N (SKU): 30110-480160010
Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS
Effective: 2021-02-26
Alternative parts: null
Specification: ST4.
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 7030-160800-10000
Part Name: COMBINATION SWITCH
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts: null
Specification: SUMITOMO PLUG
Price: 62,00 € : 62,00 €
-+
28
P/N (SKU): 7030-160800
Part Name: COMBINATION SWITCH
Effective: 2021-02-26
Alternative parts: null
Specification: ORDINARY
Price: 55,00 € : 55,00 €
28
P/N (SKU): 5UR0-160800
Part Name: COMBINATION SWITCH
Effective: 2021-02-26
Remarks: EURO
Alternative parts: null
Specification: EURO
Price: 53,00 € : 53,00 €
-+
28
P/N (SKU): 5UR0-160800-10000
Part Name: COMBINATION SWITCH
Effective: 2021-02-26
Alternative parts: null
Specification: EURO;SUMITOMO PLUG
Price: 62,00 € : 62,00 €
29
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
30
P/N (SKU): 7020-150500
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-02-26
Alternative parts: null
Specification: ORDINARY
Price: 16,00 € : 16,00 €
-+
30
P/N (SKU): 7020-150500-1000
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-02-26
Remarks: Sumitomo
Alternative parts: null
Specification: SUMITOMO PLUG
Price: 18,00 € : 18,00 €
31
P/N (SKU): 7030-151400
Part Name: OVERRIDE SWITCH
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
32
P/N (SKU): 7030-151600
Part Name: HAZARD SWITCH
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
33
P/N (SKU): 6060-150800
Part Name: ADJUSTING BUTTON, CLOCK
Effective: 2021-02-26
Alternative parts: null
Price: 7,00 € : 7,00 €
-+
34
P/N (SKU): 0800-177000
Part Name: REGULATOR
Effective: 2021-02-26
Remarks: FOR EPS
Alternative parts: 0800-177000-10000
Specification: HIGH POWER, JAPANESE
Price: 274,00 € : 274,00 €
34
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts: null
Specification: 330W
Price: 104,00 € : 104,00 €
-+
35
P/N (SKU): 30006-060030810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
36
P/N (SKU): 018B-176000
Part Name: OXYGEN SENSOR
Effective: 2021-02-26
Alternative parts: null
Price: 112,00 € : 112,00 €
-+
37
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2021-02-26
Alternative parts: null
Price: 41,00 € : 41,00 €
-+
38
P/N (SKU): 0GR0-178000
Part Name: HIGH-TENSION CABLE
Effective: 2021-02-26
Alternative parts: 0GR0-178000-10000
Price: 16,00 € : 16,00 €
39
P/N (SKU): 30006-060025810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Remarks: M6×25
Alternative parts: null
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
40
P/N (SKU): 0GRB-174000
Part Name: ECU ASSY
Effective: 2021-02-26
Alternative parts: null
Specification: BOSCH MSE3.0
Price: 189,00 € : 189,00 €
41
P/N (SKU): 30105-050016410
Part Name: PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2021-02-26
Alternative parts: null
Specification: M5x16@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
42
P/N (SKU): 5UR0-150100-00001
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts: 5UR0-150100-00002
Price: 227,00 € : 227,00 €
42
P/N (SKU): 5UR0-150100-20000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts: null
Specification: SUMITOMO
Price: 292,00 € : 292,00 €
42
P/N (SKU): 5UR0-150100-A0000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts: null
Specification: FOR LOF
Price: 238,00 € : 238,00 €
43
P/N (SKU): 5UR0-150200-00001
Part Name: EFI AUXILIARY CABLE
Effective: 2021-02-26
Alternative parts: 5UR0-150200-00002
Price: 86,00 € : 86,00 €
43
P/N (SKU): 5UR0-150200-10000
Part Name: EFI AUXILIARY CABLE
Effective: 2021-02-26
Alternative parts: null
Specification: SUMITOMO PLUG
Price: 117,00 € : 117,00 €
44
P/N (SKU): 7030-150300
Part Name: TAIL LIGHT AUXILIARY CABLE
Effective: 2021-02-26
Alternative parts: null
Specification: ORDINARY STATE
Price: 19,00 € : 19,00 €
44
P/N (SKU): 7030-150300-A0000
Part Name: TAIL LIGHT AUXILIARY CABLE
Effective: 2021-02-26
Remarks: LOF
Alternative parts: null
Specification: LOF
Price: 19,00 € : 19,00 €
44
P/N (SKU): 7030-150300-10000
Part Name: TAIL LIGHT AUXILIARY CABLE
Effective: 2021-02-26
Remarks: SUMITOMO
Alternative parts: null
Specification: SUMITOMO PLUG
Price: 43,00 € : 43,00 €
45
P/N (SKU): 7030-150510
Part Name: POSITIVE CABLE, BATTERY
Effective: 2021-02-26
Alternative parts: null
Price: 18,00 € : 18,00 €
46
P/N (SKU): 7030-150610
Part Name: NEGATIVE CABLE, BATTERY
Effective: 2021-02-26
Alternative parts: null
Price: 13,00 € : 13,00 €
47
P/N (SKU): 7030-150520
Part Name: STARTER MOTOR CABLE ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 83,00 € : 83,00 €
48
P/N (SKU): 7030-150530
Part Name: CABLE, STARTER RELAY
Effective: 2021-02-26
Alternative parts: null
Price: 8,00 € : 8,00 €
49
P/N (SKU): 9010-150004
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
50
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts: null
Specification: 5x250
Price: 1,50 € : 1,50 €
51
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
52
P/N (SKU): 9010-151020
Part Name: TRAILER POWER ADAPTOR SEAT
Effective: 2021-02-26
Alternative parts: null
Price: 16,00 € : 16,00 €
-+
53
P/N (SKU): 5UR0-000002
Part Name: IDLE VALVE OUTLET PIPE
Effective: 2021-02-26
Alternative parts: null
Price: 7,00 € : 7,00 €
54
P/N (SKU): 30601-112020
Part Name: STEEL WIRE ELASTIC RING HOOP
Effective: 2021-02-26
Alternative parts: 30601-112010
Price: 1,50 € : 1,50 €
55
P/N (SKU): 018B-172000
Part Name: IDLE AIR CONTROL VALVE
Effective: 2021-02-26
Alternative parts: 6KJB-1550A0
Price: 80,00 € : 80,00 €
56
P/N (SKU): 901F-000005
Part Name: IDLE VALVE RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
57
P/N (SKU): 5UR0-000010
Part Name: IDLE SPEED AIR INLET PIPE ASSY
Effective: 2021-02-26
Alternative parts: 5UR0-000001
Price: 11,00 € : 11,00 €
58
P/N (SKU): 7030-150400
Part Name: EPS CONTROL CABLE
Effective: 2021-02-26
Alternative parts: null
Price: 44,00 € : 44,00 €
59
P/N (SKU): 9CR6-103501
Part Name: FUSE 40A
Effective: 2021-02-26
Alternative parts: null
Specification: 40A
Price: 4,00 € : 4,00 €
60
P/N (SKU): 7030-106001
Part Name: BRACKET, EPS CONTROLLER
Effective: 2021-02-26
Alternative parts: null
Price: 5,00 € : 5,00 €
61
P/N (SKU): 5UR0-150800
Part Name: EPS CONTROLLER
Effective: 2021-02-26
Alternative parts: null
Price: 307,00 € : 307,00 €
-+
62
P/N (SKU): 30110-481130010
Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS
Effective: 2021-02-26
Alternative parts: 30110-480130010
Specification: ST4.8x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
63
P/N (SKU): 8010-000002
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts: F07V-040002-1000
Specification: ST4.2
Price: 1,50 € : 1,50 €
-+
