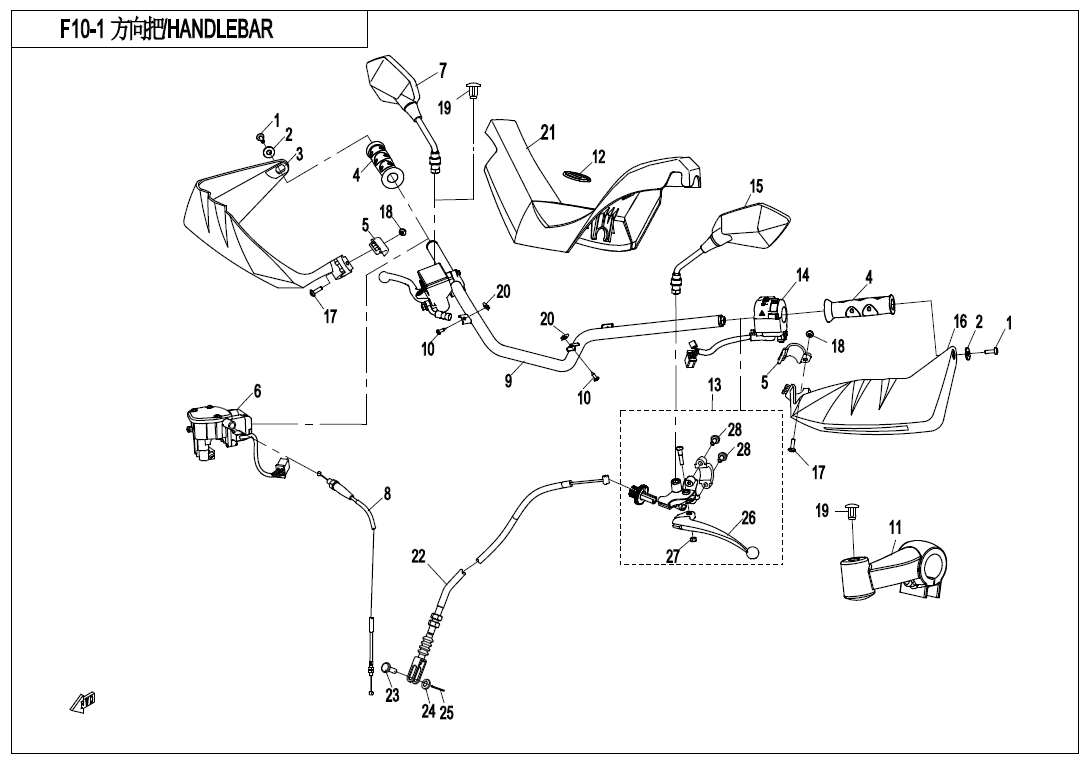

HANDLEBAR - F10-1

HANDLEBAR - F10-1

No.

01
P/N (SKU): A000-040703
Part Name: INNER HEX SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M6x20
Price: 2,00 € : 2,00 €
-+
02
P/N (SKU): 30305-080112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: φ8
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 7020-100203
Part Name: RH HAND GUARD COVER
Effective: 2021-02-26
Alternative parts:
Price: 30,00 € : 30,00 €
-+
04
P/N (SKU): 8060-100001
Part Name: LH HAND GRIP
Effective: 2021-02-26
Alternative parts: 9DQV-100005-3000
Price: 7,50 € : 7,50 €
-+
05
P/N (SKU): 7020-100204
Part Name: HAND GUARD CLAMP
Effective: 2021-02-26
Alternative parts:
Price: 11,00 € : 11,00 €
-+
06
P/N (SKU): 7020-160700
Part Name: RH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Alternative parts: 7020-160700-00002
Specification: ORDINARY PLUG
Price: 49,00 € : 49,00 €
06
P/N (SKU): 7020-160700-1000
Part Name: RH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Alternative parts: 7020-160700-10002
Specification: SUMITOMO PLUG
Price: 46,00 € : 46,00 €
07
P/N (SKU): 7020-200300
Part Name: REAR VIEW MIRROR, RH
Effective: 2021-02-26
Alternative parts: 9AY0-200300
Price: 17,00 € : 17,00 €
08
P/N (SKU): 7020-100510
Part Name: THROTTLE CABLE
Effective: 2021-02-26
Alternative parts: 9AWV-100500-2B00
Price: 13,00 € : 13,00 €
09
P/N (SKU): 7020-100100
Part Name: HANDLEBAR ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 42,00 € : 42,00 €
-+
10
P/N (SKU): 30110-480160010
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts:
Specification: ST4.8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 8050-080301-1000
Part Name: REAR VIEW MIRROR BRACKET
Effective: 2021-02-26
Alternative parts:
Price: 11,00 € : 11,00 €
-+
12
P/N (SKU): 9060-190001
Part Name: CFMOTO LOGO 58x49
Effective: 2021-02-26
Alternative parts:
Specification: 58x49
Price: 19,00 € : 19,00 €
-+
13
P/N (SKU): 9010-080250-1000
Part Name: LEVER, INTERLOCKING BRAKE
Effective: 2021-02-26
Alternative parts: 9DSV-083010-6H00
Price: 20,00 € : 20,00 €
14
P/N (SKU): 7020-160600-40000
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY PLUG@HEDALIGHT A
Price: 34,00 € : 34,00 €
-+
14
P/N (SKU): 7020-160600-3000
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 47,00 € : 47,00 €
-+
14
P/N (SKU): 7020-160600-2000
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 47,00 € : 47,00 €
-+
14
P/N (SKU): 7020-160600
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-02-26
Alternative parts:
Price: 39,00 € : 39,00 €
-+
15
P/N (SKU): 7020-200200
Part Name: LH REARVIEW MIRROR ASSY
Effective: 2021-02-26
Alternative parts: 9AY0-200200
Price: 17,00 € : 17,00 €
16
P/N (SKU): 7020-100202
Part Name: HAND GUARD, LH
Effective: 2021-02-26
Alternative parts:
Price: 39,00 € : 39,00 €
-+
17
P/N (SKU): 30112-060016410
Part Name: SCREW ASSY
Effective: 2021-02-26
Alternative parts:
Specification: M6x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 30200-060810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 9010-080004
Part Name: M8 RUBBER PLUG
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 5020-040049
Part Name: CLAMP ST4.8
Effective: 2021-02-26
Alternative parts:
Specification: ST4.8
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 7020-100201
Part Name: HANDLEBAR TOP GUARD
Effective: 2021-02-26
Remarks: LONG REAR BRAKE CABLE
Alternative parts:
Price: 20,00 € : 20,00 €
-+
22
P/N (SKU): 7020-080230-1000
Part Name: REAR BRAKE CABLE
Effective: 2021-02-26
Remarks: SHORT REAR BRAKE CABLE
Alternative parts:
Price: 2,50 € : 2,50 €
-+
22
P/N (SKU): 7020-080230
Part Name: REAR BRAKE CABLE
Effective: 2021-02-26
Alternative parts:
Price: 13,00 € : 13,00 €
-+
23
P/N (SKU): 30904-0602010
Part Name: PIN SHAFT
Effective: 2021-02-26
Alternative parts:
Specification: 6x20@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
24
P/N (SKU): 30306-060112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: 30306-060142
Specification: φ6
Price: 1,50 € : 1,50 €
25
P/N (SKU): 30903-0162010
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts:
Specification: GB/T91_1.6×20
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 9010-080251
Part Name: LEVER
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
27
P/N (SKU): 30204-060810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 30006-060022810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×22
Price: 1,50 € : 1,50 €
-+
