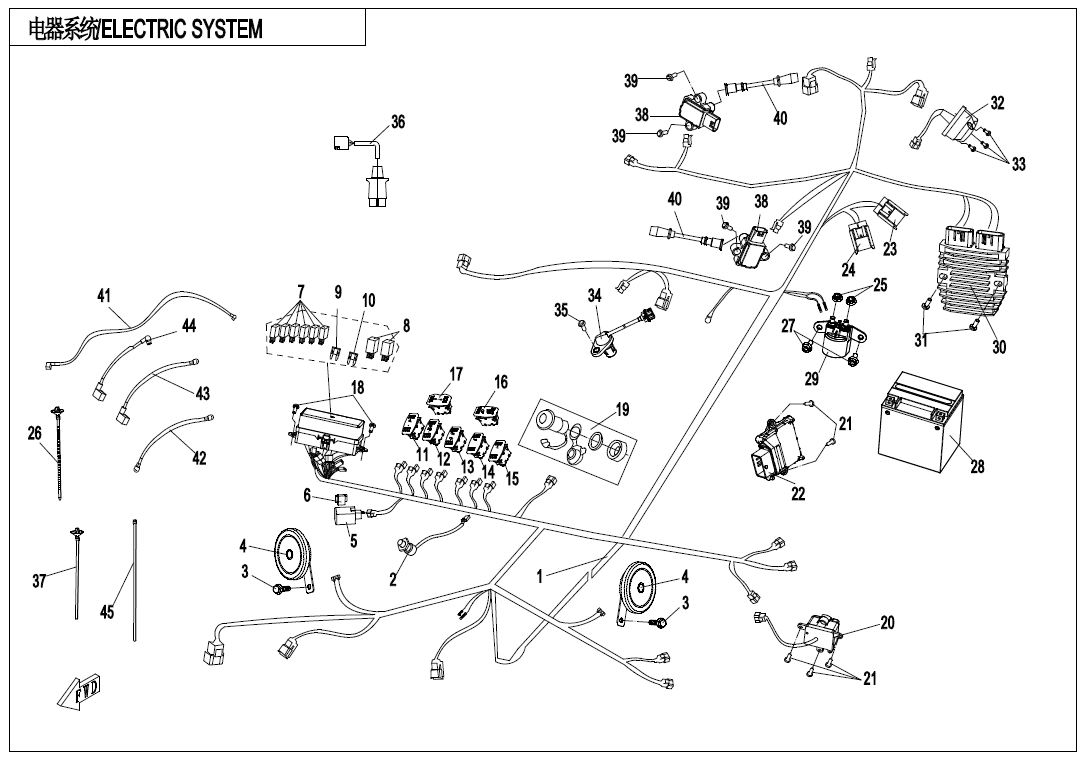

ELECTRIC SYSTEM - F15-1

ELECTRIC SYSTEM - F15-1

No.

01
P/N (SKU): 5BY4-150100
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts: 5BY4-150100-00001
Price: 643,00 € : 643,00 €
02
P/N (SKU): 7030-170300
Part Name: BUTTON, CLOCK
Effective: 2021-02-26
Alternative parts: null
Specification: WITHOUT WIRE
Price: 11,00 € : 11,00 €
-+
03
P/N (SKU): 30006-080014810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 6060-150600
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts: null
Price: 10,00 € : 10,00 €
-+
05
P/N (SKU): 5UW2-150340
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts: null
Price: 17,00 € : 17,00 €
-+
06
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
07
P/N (SKU): 5BY4-150330
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts: null
Price: 7,50 € : 7,50 €
-+
08
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts: null
Price: 7,00 € : 7,00 €
-+
09
P/N (SKU): 8080-151301
Part Name: FUSE 5A
Effective: 2021-02-26
Alternative parts: null
Specification: 5A
Price: 1,50 € : 1,50 €
10
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2021-02-26
Alternative parts: null
Specification: 15A
Price: 1,50 € : 1,50 €
11
P/N (SKU): 7000-151400-10000
Part Name: OVERRIDE SWITCH
Effective: 2021-02-26
Alternative parts: null
Specification: SUMITOMO PLUG
Price: 15,00 € : 15,00 €
-+
12
P/N (SKU): 5BR0-151300
Part Name: HORN SWITCH
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
13
P/N (SKU): 5BR0-151200
Part Name: DIMMER SWITCH
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
14
P/N (SKU): 5BR0-151100
Part Name: ILLUMINATION SWITCH
Effective: 2021-02-26
Alternative parts: null
Price: 12,00 € : 12,00 €
15
P/N (SKU): 5BR0-151600
Part Name: HAZARD SWITCH
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
16
P/N (SKU): 5UW2-151000
Part Name: STOP SWITCH, ENGINE
Effective: 2021-02-26
Alternative parts: null
Price: 18,00 € : 18,00 €
-+
17
P/N (SKU): 5BR0-151500
Part Name: TURNING SWITCH
Effective: 2021-02-26
Alternative parts: null
Price: 12,00 € : 12,00 €
18
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 7020-150500
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-02-26
Alternative parts: null
Specification: ORDINARY
Price: 16,00 € : 16,00 €
-+
20
P/N (SKU): 5UW2-160700
Part Name: 2WD/4WD SWITCH ASSY
Effective: 2021-02-26
Alternative parts: 5UW2-160700-00001
Price: 27,00 € : 27,00 €
-+
21
P/N (SKU): 30110-480160010
Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS
Effective: 2021-02-26
Alternative parts: null
Specification: ST4.
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 0JYA-174000-40000
Part Name: ECU ASSY
Effective: 2021-02-26
Alternative parts: null
Specification: BOSCH US6.0
Price: 321,00 € : 321,00 €
-+
23
P/N (SKU): 5BY4-151301
Part Name: 30A FUSE
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
24
P/N (SKU): 9CR6-103501
Part Name: FUSE 40A
Effective: 2021-02-26
Alternative parts: null
Specification: 40A
Price: 4,00 € : 4,00 €
25
P/N (SKU): 30202-060110
Part Name: HEXAGON NUTS FLANGE
Effective: 2021-02-26
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMI
Price: 1,50 € : 1,50 €
26
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
28
P/N (SKU): 31023000
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 31023004
Specification: DYNOVOLT, 12V30Ah
Price: 158,00 € : 158,00 €
28
P/N (SKU): 31023002
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 31023004+5DYV-043055-3000
Specification: YUASA, 12V30Ah
Price: 563,00 € : 563,00 €
29
P/N (SKU): 5270-150500
Part Name: STARTER RELAY
Effective: 2021-02-26
Alternative parts: null
Price: 24,00 € : 24,00 €
-+
30
P/N (SKU): 0800-177000-10000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts: null
Specification: HIGH POWER, CHINESE
Price: 165,00 € : 165,00 €
-+
30
P/N (SKU): 0800-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts: 0800-177000-10000
Specification: HIGH POWER, JAPANESE
Price: 274,00 € : 274,00 €
30
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts: null
Specification: 330W
Price: 104,00 € : 104,00 €
-+
31
P/N (SKU): 30004-060030810
Part Name: HEXAGON HEAD BOLTS WITH FULL THREAD
Effective: 2021-02-26
Alternative parts: 30004-060030420
Specification: M6x30
Price: 1,50 € : 1,50 €
32
P/N (SKU): 7020-150800
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Alternative parts: null
Specification: ORDINARY
Price: 16,00 € : 16,00 €
-+
33
P/N (SKU): 30105-050030410
Part Name: PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2021-02-26
Alternative parts: null
Specification: M5x30
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): 7020-150400
Part Name: SPEED SENSOR
Effective: 2021-02-26
Alternative parts: null
Price: 34,00 € : 34,00 €
-+
35
P/N (SKU): 30006-060020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,50 € : 1,50 €
36
P/N (SKU): 9010-151020
Part Name: TRAILER POWER ADAPTOR SEAT
Effective: 2021-02-26
Alternative parts: null
Price: 16,00 € : 16,00 €
-+
37
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
38
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2021-02-26
Alternative parts: null
Price: 41,00 € : 41,00 €
-+
39
P/N (SKU): 30006-060040810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M6x40
Price: 1,50 € : 1,50 €
40
P/N (SKU): 0GRB-178000
Part Name: HIGH-TENSION CABLE
Effective: 2021-02-26
Alternative parts: 0GRB-178000-10000
Price: 16,00 € : 16,00 €
41
P/N (SKU): 7000-150520
Part Name: STARTER MOTOR POSITIVE CABLE
Effective: 2021-02-26
Alternative parts: null
Price: 33,00 € : 33,00 €
42
P/N (SKU): 7000-150620
Part Name: STARTER MOTOR NEGATIVE CABLE
Effective: 2021-02-26
Alternative parts: null
Price: 15,00 € : 15,00 €
43
P/N (SKU): 7000-150610
Part Name: NEGATIVE CABLE, BATTERY
Effective: 2021-02-26
Alternative parts: 700V-150420-1500
Price: 26,00 € : 26,00 €
44
P/N (SKU): 7000-150510
Part Name: POSITIVE CABLE, BATTERY
Effective: 2021-02-26
Alternative parts: 700V-150410-1500
Price: 17,00 € : 17,00 €
45
P/N (SKU): 9010-150004
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
