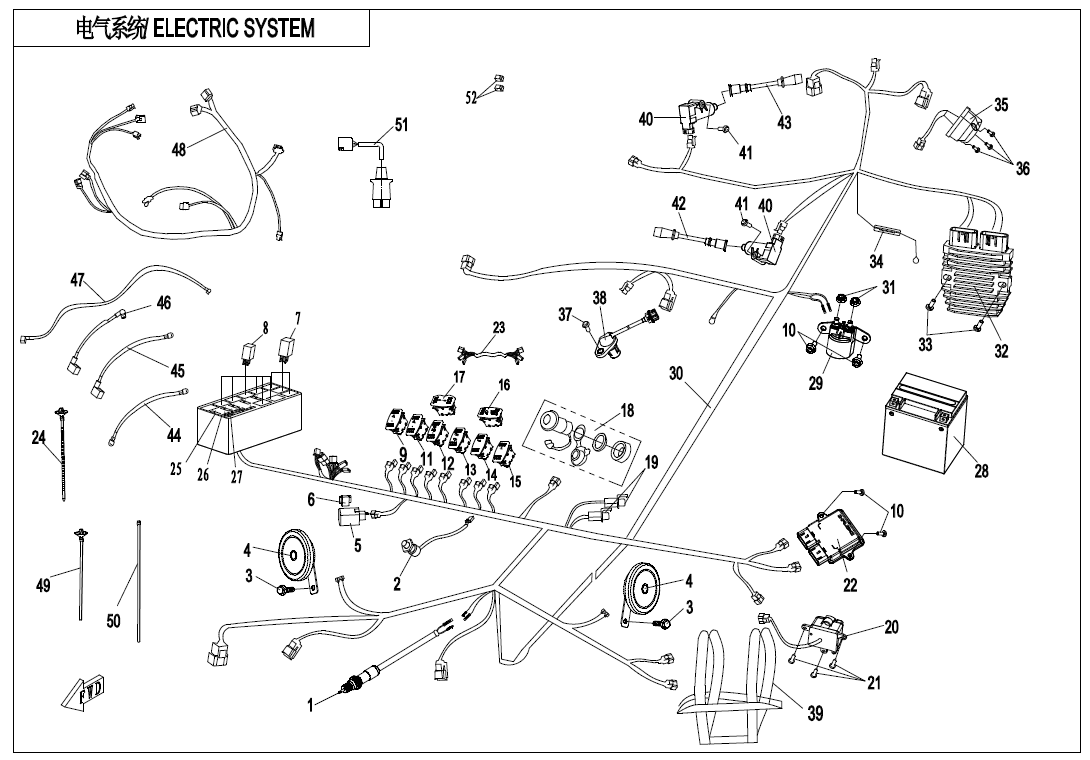

ELECTRIC SYSTEM - F15-1-V2

ELECTRIC SYSTEM - F15-1-V2

No.

01
P/N (SKU): 9010-150500
Part Name: REAR BRAKE SWITCH
Effective: 2021-02-26
Alternative parts:
Price: 11,00 € : 11,00 €
-+
02
P/N (SKU): 7030-170300
Part Name: BUTTON, CLOCK
Effective: 2021-02-26
Alternative parts:
Specification: WITHOUT WIRE
Price: 11,00 € : 11,00 €
-+
03
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 6060-150600
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts:
Price: 10,00 € : 10,00 €
-+
05
P/N (SKU): 4020-150340
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 19,00 € : 19,00 €
-+
06
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
08
P/N (SKU): 5BY4-150330
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 7,50 € : 7,50 €
-+
09
P/N (SKU): 7000-151700
Part Name: SWITCH, HIGH-BEAM LIGHT
Effective: 2021-02-26
Alternative parts:
Specification: HEAD LIGHT ALWAYS ON
Price: 12,00 € : 12,00 €
-+
09
P/N (SKU): 5BR0-151700
Part Name: SWITCH, HIGH-BEAM LIGHT
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 13,00 € : 13,00 €
-+
10
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
11
P/N (SKU): 7000-151400
Part Name: OVERRIDE SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ODRINARY
Price: 11,00 € : 11,00 €
-+
11
P/N (SKU): 7000-151400-10000
Part Name: OVERRIDE SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 15,00 € : 15,00 €
-+
12
P/N (SKU): 7000-151300-10000
Part Name: HORN SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 16,00 € : 16,00 €
-+
12
P/N (SKU): 7000-151300
Part Name: HORN SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ODRINARY
Price: 11,00 € : 11,00 €
-+
13
P/N (SKU): 7000-151200
Part Name: DIMMER SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ODRINARY
Price: 11,00 € : 11,00 €
-+
13
P/N (SKU): 7000-151200-10000
Part Name: DIMMER SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 16,00 € : 16,00 €
-+
14
P/N (SKU): 7000-151100-10000
Part Name: ILLUMINATION SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 16,00 € : 16,00 €
-+
14
P/N (SKU): 7000-151100
Part Name: ILLUMINATION SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ODRINARY
Price: 11,00 € : 11,00 €
-+
15
P/N (SKU): 7000-151600-10000
Part Name: HAZARD SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 16,00 € : 16,00 €
-+
15
P/N (SKU): 7000-151600
Part Name: HAZARD SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 11,00 € : 11,00 €
-+
16
P/N (SKU): 7000-151000
Part Name: STOP SWITCH, ENGINE
Effective: 2021-02-26
Alternative parts:
Specification: ODRINARY
Price: 11,00 € : 11,00 €
-+
16
P/N (SKU): 7000-151000-10000
Part Name: STOP SWITCH, ENGINE
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 19,00 € : 19,00 €
-+
17
P/N (SKU): 7000-151500-10000
Part Name: TURNING SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 16,00 € : 16,00 €
-+
17
P/N (SKU): 7000-151500
Part Name: TURNING SWITCH
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 11,00 € : 11,00 €
-+
18
P/N (SKU): 7020-150500
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 16,00 € : 16,00 €
-+
18
P/N (SKU): 7020-150500-1000
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 18,00 € : 18,00 €
-+
19
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): 7030-160700
Part Name: 2WD/4WD SWITCH ASSY
Effective: 2021-02-26
Alternative parts: 7030-160700-00001/7030-160700-00002
Specification: ORDINARY
Price: 26,00 € : 26,00 €
-+
20
P/N (SKU): 7030-160700-10000
Part Name: 2WD/4WD SWITCH ASSY
Effective: 2021-02-26
Alternative parts: 7030-160700-10002
Specification: SUMITOMO PLUG
Price: 35,00 € : 35,00 €
-+
21
P/N (SKU): 30110-480160010
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts:
Specification: ST4.8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 0800-174000-2000
Part Name: ECU ASSY
Effective: 2021-02-26
Alternative parts:
Specification: FOR ZFORCE 800 ONLY, DELPHI MT05.3
Price: 214,00 € : 214,00 €
-+
22
P/N (SKU): 0800-174000-20001
Part Name: ECU ASSY
Effective: 2021-02-26
Alternative parts:
Specification: FOR ZFORCE 800 ONLY, DELPHI MT05.3
Price: 214,00 € : 214,00 €
-+
23
P/N (SKU): 7000-152100
Part Name: SWITCH ADAPTOR CABLE
Effective: 2021-02-26
Alternative parts:
Price: 4,50 € : 4,50 €
-+
24
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 8080-151301
Part Name: FUSE 5A
Effective: 2021-02-26
Alternative parts:
Specification: 5A
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-02-26
Alternative parts:
Specification: 10A
Price: 2,50 € : 2,50 €
-+
27
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2021-02-26
Alternative parts:
Specification: 15A
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 31023002
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 31023004
Specification: YUASA, 12V30Ah
Price: 563,00 € : 563,00 €
28
P/N (SKU): 31023000
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 31023004
Specification: DYNOVOLT, 12V30Ah
Price: 158,00 € : 158,00 €
29
P/N (SKU): 5270-150500
Part Name: STARTER RELAY
Effective: 2021-02-26
Alternative parts:
Price: 24,00 € : 24,00 €
-+
30
P/N (SKU): 7000-150100-70000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts:
Specification: INTEGRATED RELAY BOX@SUMITOMO PLUG
Price: 509,00 € : 509,00 €
-+
30
P/N (SKU): 7000-150100-80000
Part Name: MAIN CABLE
Effective: 2021-02-26
Alternative parts:
Specification: INTEGRATED RELAY BOX@ORDINARY
Price: 390,00 € : 390,00 €
-+
30
P/N (SKU): 7000-150100-B0000
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: LOF
Alternative parts:
Specification: INTEGRATED RELAY BOX@ORDINARY@LOF
Price: 358,00 € : 358,00 €
-+
31
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2021-02-26
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 0800-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts: 0800-177000-10000
Specification: HIGH POWER, JAPANESE
Price: 274,00 € : 274,00 €
32
P/N (SKU): 0800-177000-10000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Specification: HIGH POWER, CHINESE
Price: 165,00 € : 165,00 €
-+
32
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Specification: 330W
Price: 104,00 € : 104,00 €
-+
33
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): 7020-150110
Part Name: FUSE ADAPTOR CABLE 30A
Effective: 2021-02-26
Alternative parts:
Price: 6,50 € : 6,50 €
-+
35
P/N (SKU): 7020-150800
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 16,00 € : 16,00 €
-+
35
P/N (SKU): 9010-151010-1000
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Remarks: LOF
Alternative parts:
Specification: LOF
Price: 15,00 € : 15,00 €
-+
35
P/N (SKU): 7020-150800-1000
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 21,00 € : 21,00 €
-+
36
P/N (SKU): 30105-050030410
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M5x30@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 30006-060020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,50 € : 1,50 €
38
P/N (SKU): 7020-150400
Part Name: SPEED SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 34,00 € : 34,00 €
-+
39
P/N (SKU): 9060-152100
Part Name: BATTERY BELT
Effective: 2021-02-26
Alternative parts:
Price: 4,00 € : 4,00 €
-+
40
P/N (SKU): 0800-178000
Part Name: IGNITION COIL
Effective: 2021-02-26
Alternative parts:
Price: 47,00 € : 47,00 €
-+
41
P/N (SKU): 30005-060040810
Part Name: BOLT M6x40
Effective: 2021-02-26
Alternative parts: 30006-060040810
Specification: GB5786 M6x40 TRIVALENT CHROMIUM 8.8
Price: 1,50 € : 1,50 €
42
P/N (SKU): 0800-179100
Part Name: HIGH-TENSION CABLE ASSY 1
Effective: 2021-02-26
Alternative parts: 0800-179100-10000
Price: 13,00 € : 13,00 €
43
P/N (SKU): 0800-179200
Part Name: HIGH-TENSION CABLE ASSY 2
Effective: 2021-02-26
Alternative parts: 0800-179200-10000
Price: 13,00 € : 13,00 €
44
P/N (SKU): 7000-150620
Part Name: STARTER MOTOR NEGATIVE CABLE
Effective: 2021-02-26
Alternative parts:
Price: 15,00 € : 15,00 €
-+
45
P/N (SKU): 7000-150610
Part Name: NEGATIVE CABLE, BATTERY
Effective: 2021-02-26
Alternative parts: 700V-150420-1500
Price: 26,00 € : 26,00 €
46
P/N (SKU): 7000-150510
Part Name: POSITIVE CABLE, BATTERY
Effective: 2021-02-26
Alternative parts: 700V-150410-1500
Price: 17,00 € : 17,00 €
47
P/N (SKU): 7000-150520
Part Name: STARTER MOTOR POSITIVE CABLE
Effective: 2021-02-26
Alternative parts:
Price: 33,00 € : 33,00 €
-+
48
P/N (SKU): 7000-150200-10001
Part Name: EFI AUXILIARY CABLE
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 268,00 € : 268,00 €
-+
48
P/N (SKU): 7000-150200-00001
Part Name: EFI AUXILIARY CABLE
Effective: 2021-02-26
Alternative parts:
Specification: ORDINARY
Price: 185,00 € : 185,00 €
-+
49
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
50
P/N (SKU): 9010-150004
Part Name: TIE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
51
P/N (SKU): 9010-151020
Part Name: TRAILER POWER ADAPTOR SEAT
Effective: 2021-02-26
Alternative parts:
Price: 16,00 € : 16,00 €
-+
52
P/N (SKU): 905B-150103
Part Name: PDA PLUG
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
