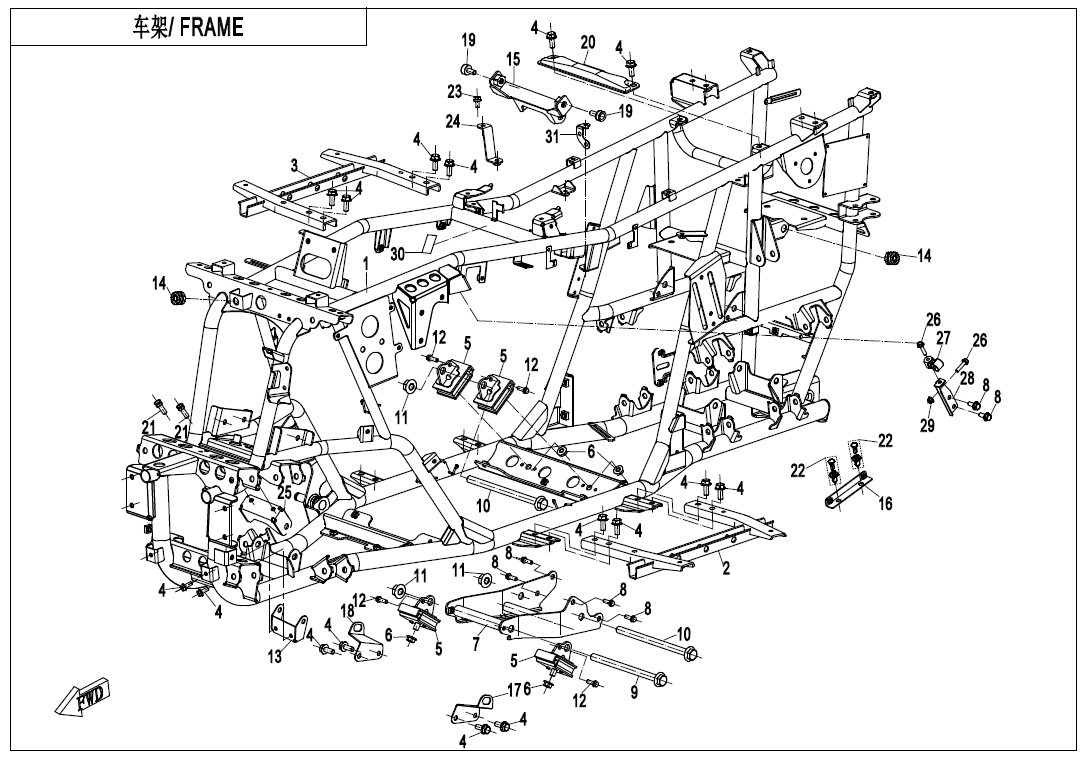

FRAME - F03-V4

FRAME - F03-V4

No.

01
P/N (SKU): 9GQ0-031000-60000
Part Name: FRAME ASSY
Effective: 2021-02-26
Alternative parts: 9GQ0-031000-80000/9GQ0-031000-C0000
Price: 734,00 € : 734,00 €
02
P/N (SKU): 9GQ0-039100
Part Name: FOOT PEDAL, LH
Effective: 2021-02-26
Alternative parts: null
Price: 18,00 € : 18,00 €
03
P/N (SKU): 9GQ0-039200
Part Name: RH FOOT PEDAL ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 18,00 € : 18,00 €
04
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M8x20@COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 401B-000200-10000
Part Name: DAMPER
Effective: 2021-02-26
Alternative parts: null
Price: 14,00 € : 14,00 €
-+
06
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2021-02-26
Alternative parts: null
Specification: M10×1.25
Price: 1,50 € : 1,50 €
07
P/N (SKU): 9CR6-001100-20000
Part Name: FRONT BRACKET, ENGINE
Effective: 2021-02-26
Alternative parts: null
Specification: ELECTROPHORESIS BLACK
Price: 26,00 € : 26,00 €
-+
08
P/N (SKU): 30006-103020810
Part Name: BOLT M10x20
Effective: 2021-02-26
Alternative parts: null
Specification: M10x20
Price: 2,00 € : 2,00 €
09
P/N (SKU): 30006-122170810
Part Name: BOLT M12x1.25x170
Effective: 2021-02-26
Alternative parts: null
Specification: M12x1.25x170
Price: 4,00 € : 4,00 €
10
P/N (SKU): 30006-122180810
Part Name: BOLT M12x1.25x180
Effective: 2021-02-26
Alternative parts: null
Specification: M12x1.25x180
Price: 4,50 € : 4,50 €
11
P/N (SKU): 30204-122810
Part Name: NUT
Effective: 2021-02-26
Alternative parts: null
Specification: M12×1.25
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 30102-060012810
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: null
Specification: M6×12
Price: 1,50 € : 1,50 €
13
P/N (SKU): 9GQ0-030110
Part Name: LOWER BRACKET,FRONT GEAR CASE
Effective: 2021-02-26
Alternative parts: null
Price: 4,00 € : 4,00 €
-+
14
P/N (SKU): 5020-031001
Part Name: RUBBER SLEEVE, FRONT LICENSE BRACKET
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
15
P/N (SKU): 9GQ0-030070-10000
Part Name: UPPER LINK SEAT, REAR GEAR CASE
Effective: 2021-02-26
Alternative parts: null
Price: 8,50 € : 8,50 €
16
P/N (SKU): 9GQ0-030060
Part Name: MOUNTING PLATE ASSY, ECU
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
17
P/N (SKU): 9GQ0-030004
Part Name: BRACKET, LH INNER FENDER
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
18
P/N (SKU): 9GQ0-030005
Part Name: RH INNER FENDER BRACKET
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
19
P/N (SKU): 30102-102020810
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: null
Specification: M10x1.25x20@COLOR ZINC-PLATED
Price: 2,50 € : 2,50 €
20
P/N (SKU): 9GQ0-030010-10000
Part Name: FIXING BRACKET,SEAT
Effective: 2021-02-26
Alternative parts: null
Price: 6,50 € : 6,50 €
21
P/N (SKU): 30102-080020110
Part Name: SCREW
Effective: 2021-02-26
Alternative parts: 30102-080020810
Specification: M8x20@COLOR ZINC-PLATED
Price: 2,00 € : 2,00 €
22
P/N (SKU): 9060-040310
Part Name: CLAMP ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
23
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
24
P/N (SKU): 9GQ0-030080
Part Name: AIR FILTER CONNECTING BRACKET ASSY
Effective: 2021-02-26
Alternative parts: 9GQV-030080-1400
Price: 2,50 € : 2,50 €
25
P/N (SKU): 9GQ0-030050-10000
Part Name: UPPER BRACKET, FRONT GEAR CASE
Effective: 2021-02-26
Alternative parts: null
Price: 9,50 € : 9,50 €
-+
26
P/N (SKU): 30006-080035810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M8×35
Price: 1,50 € : 1,50 €
27
P/N (SKU): 7020-000160
Part Name: CONNECTING PARTS, ENGINE UPPER BRACKET
Effective: 2021-02-26
Alternative parts: null
Price: 12,00 € : 12,00 €
-+
28
P/N (SKU): 9GQ0-030120
Part Name: SIDE SUPPORT ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
29
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2021-02-26
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 6NQ0-190005
Part Name: TAPE
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
31
P/N (SKU): 9GQ0-030131
Part Name: WIRE CONNECTOR LOCKING PLATE
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
