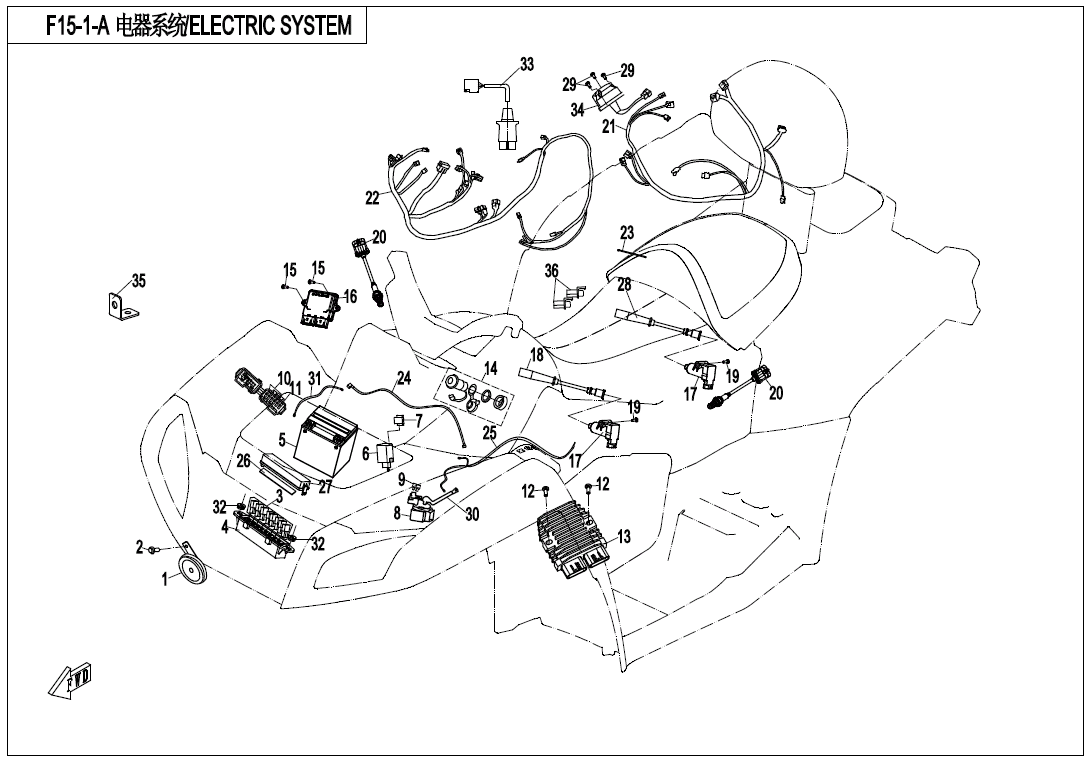

ELECTRIC SYSTEM - F15-1-A

ELECTRIC SYSTEM - F15-1-A

No.

01
P/N (SKU): 7020-150770
Part Name: ELECTRIC HORN
Effective: 2021-02-26
Alternative parts:
Price: 8,50 € : 8,50 €
-+
02
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-02-26
Alternative parts:
Price: 7,00 € : 7,00 €
-+
04
P/N (SKU): 7020-040411
Part Name: RELAY BOX
Effective: 2021-02-26
Alternative parts:
Price: 7,50 € : 7,50 €
-+
05
P/N (SKU): 31023000
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 31023004
Specification: DYNOVOLT, 12V30Ah
Price: 158,00 € : 158,00 €
05
P/N (SKU): 31023002
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts: 31023004
Specification: YUASA, 12V30Ah
Price: 563,00 € : 563,00 €
05
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2021-02-26
Alternative parts:
Specification: DYNAVOLT,12V 32Ah
Price: 272,00 € : 272,00 €
-+
06
P/N (SKU): 8010-151000
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 6,00 € : 6,00 €
-+
06
P/N (SKU): 9GQ1-150340
Part Name: FLASHER
Effective: 2021-02-26
Alternative parts: 9GQV-161000-7000
Price: 20,00 € : 20,00 €
-+
07
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 5270-150500
Part Name: STARTER RELAY
Effective: 2021-02-26
Alternative parts:
Price: 24,00 € : 24,00 €
-+
09
P/N (SKU): 7020-150111
Part Name: CHIP-TYPE FUSE 30A
Effective: 2021-02-26
Alternative parts:
Specification: 30A
Price: 4,00 € : 4,00 €
-+
10
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2021-02-26
Alternative parts:
Specification: 15A
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-02-26
Alternative parts:
Specification: 10A
Price: 2,50 € : 2,50 €
-+
12
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 01AA-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Specification: 330W
Price: 104,00 € : 104,00 €
-+
13
P/N (SKU): 0800-177000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts: 0800-177000-10000
Specification: HIGH POWER, JAPANESE
Price: 274,00 € : 274,00 €
13
P/N (SKU): 0800-177000-10000
Part Name: REGULATOR
Effective: 2021-02-26
Alternative parts:
Specification: HIGH POWER, CHINESE
Price: 165,00 € : 165,00 €
-+
14
P/N (SKU): 7020-150500
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-02-26
Remarks: ORDINARY
Alternative parts:
Specification: ORDINARY
Price: 16,00 € : 16,00 €
-+
14
P/N (SKU): 7020-150500-1000
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 18,00 € : 18,00 €
-+
15
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 0JWS-174000
Part Name: ECU
Effective: 2021-02-26
Alternative parts:
Specification: DELPHI MT05.3
Price: 241,00 € : 241,00 €
-+
17
P/N (SKU): 0800-178000
Part Name: IGNITION COIL
Effective: 2021-02-26
Alternative parts:
Price: 47,00 € : 47,00 €
-+
18
P/N (SKU): 0800-179100
Part Name: HIGH-TENSION CABLE ASSY 1
Effective: 2021-02-26
Alternative parts: 0800-179100-10000
Price: 13,00 € : 13,00 €
19
P/N (SKU): 30006-060040810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6x40
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 0800-176000
Part Name: OXYGEN SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 128,00 € : 128,00 €
-+
21
P/N (SKU): 9AWB-150300-20000
Part Name: EFI AUXILIARY CABLE
Effective: 2021-02-26
Remarks: ORDINARY
Alternative parts:
Price: 307,00 € : 307,00 €
-+
21
P/N (SKU): 9AWB-150300-30000
Part Name: EFI AUXILIARY CABLE
Effective: 2021-02-26
Remarks: SUMITOMO PLUG
Alternative parts:
Price: 307,00 € : 307,00 €
-+
21
P/N (SKU): 9AWB-150300
Part Name: EFI AUXILIARY CABLE
Effective: 2021-02-26
Remarks: ORDINARY
Alternative parts: 9AWB-150300-20000
Price: 90,00 € : 90,00 €
21
P/N (SKU): 9AWB-150300-10000
Part Name: EFI AUXILIARY CABLE
Effective: 2021-02-26
Remarks: SUMITOMO PLUG
Alternative parts: 9AWB-150300-30000
Specification: SUMITOMO PLUG
Price: 139,00 € : 139,00 €
22
P/N (SKU): 9AWB-150100
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: ORDINARY
Alternative parts:
Price: 179,00 € : 179,00 €
-+
22
P/N (SKU): 9AWB-150100-10000
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: SUMITOMO PLUG
Alternative parts:
Price: 282,00 € : 282,00 €
-+
22
P/N (SKU): 9AWB-150100-A0000
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: LOF
Alternative parts:
Price: 207,00 € : 207,00 €
-+
22
P/N (SKU): 9AWB-150100-B0000
Part Name: MAIN CABLE
Effective: 2021-02-26
Remarks: SUMITOMO AND LOF
Alternative parts:
Price: 295,00 € : 295,00 €
-+
23
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts:
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 7020-150220
Part Name: CABLE, STARTING MOTOR
Effective: 2021-02-26
Alternative parts:
Price: 19,00 € : 19,00 €
-+
25
P/N (SKU): 7020-150210
Part Name: NEGATIVE CABLE, LONG
Effective: 2021-02-26
Alternative parts:
Price: 20,00 € : 20,00 €
-+
26
P/N (SKU): 7020-040414
Part Name: RUBBER WASHER, RELAY BOX COVER
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
27
P/N (SKU): 7020-040412
Part Name: COVER, RELAY BOX
Effective: 2021-02-26
Alternative parts: 7020-040412-10000
Price: 6,50 € : 6,50 €
27
P/N (SKU): 7020-040412-10000
Part Name: COVER,RELAY BOX
Effective: 2021-02-26
Alternative parts:
Price: 5,00 € : 5,00 €
-+
28
P/N (SKU): 0800-179200
Part Name: HIGH-TENSION CABLE ASSY 2
Effective: 2021-02-26
Alternative parts: 0800-179200-10000
Price: 13,00 € : 13,00 €
29
P/N (SKU): 30105-050030410
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M5x30@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 7020-150230
Part Name: BATTERY POSITIVE WIRE
Effective: 2021-02-26
Alternative parts:
Price: 17,00 € : 17,00 €
-+
31
P/N (SKU): 7020-150240
Part Name: NEGATIVE CABLE, BATTERY
Effective: 2021-02-26
Alternative parts:
Price: 15,00 € : 15,00 €
-+
32
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
33
P/N (SKU): 9010-151020
Part Name: TRAILER POWER ADAPTOR SEAT
Effective: 2021-02-26
Alternative parts:
Price: 16,00 € : 16,00 €
-+
34
P/N (SKU): 7020-150800
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Remarks: ORDINARY
Alternative parts:
Specification: ORDINARY
Price: 16,00 € : 16,00 €
-+
34
P/N (SKU): 7020-150800-1000
Part Name: TRAILER POWER SOCKET
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 21,00 € : 21,00 €
-+
35
P/N (SKU): 7020-038002
Part Name: FUSE BOX BRACKET
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
36
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
