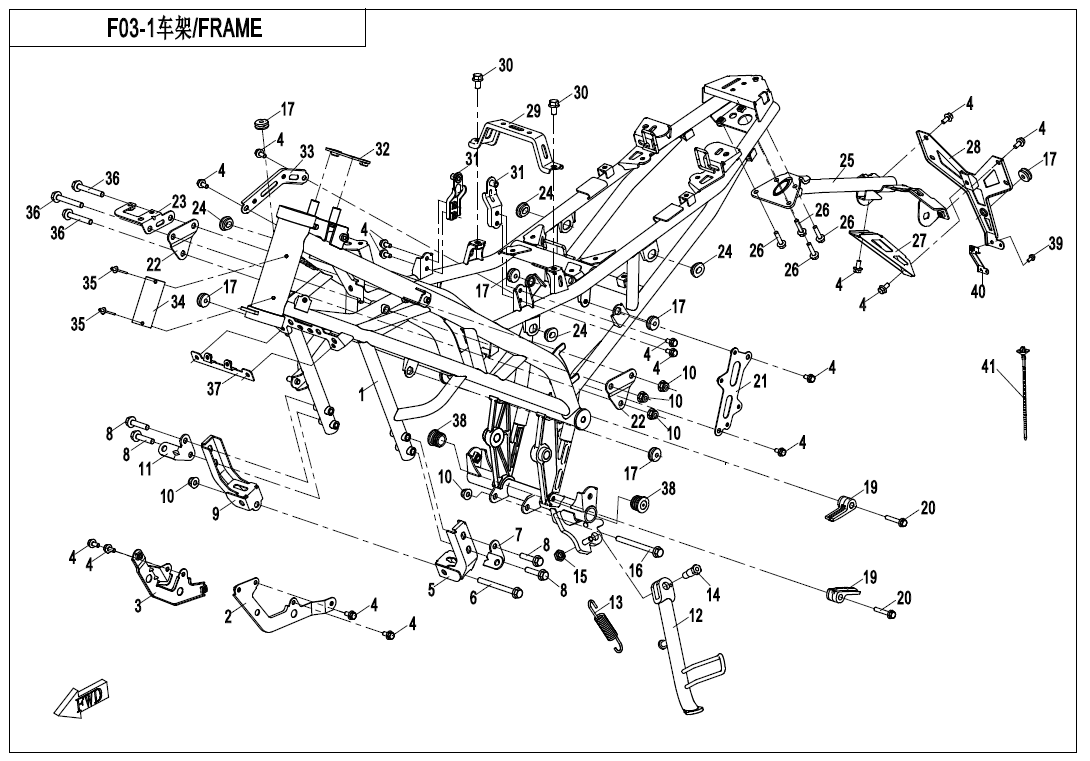

FRAME(ABS) - F03-1-A

FRAME(ABS) - F03-1-A

No.

01
P/N (SKU): 6KJ0-031000-4BC00
Part Name: FRAME ASSY
Effective: 2021-02-26
Alternative parts: 6KJ0-031000-6BC00
Specification: CORAL BLUE
Price: 423,00 € : 423,00 €
01
P/N (SKU): 6KJ0-031000-4BB00
Part Name: FRAME ASSY
Effective: 2021-02-26
Alternative parts: 6KJ0-031000-6BB00
Specification: ELECTROPHORESIS BLACK+MATTE BLACK
Price: 500,00 € : 500,00 €
02
P/N (SKU): 6KJ0-030410
Part Name: BRACKET, ENGINE LH PANEL
Effective: 2021-02-26
Alternative parts: null
Price: 6,00 € : 6,00 €
03
P/N (SKU): 6KJ0-030420
Part Name: BRACKET, ENGINE RH PANEL
Effective: 2021-02-26
Alternative parts: null
Price: 6,00 € : 6,00 €
04
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
05
P/N (SKU): 6KJ0-030860
Part Name: FRONT LOWER LH MOUNT PLATE, ENGINE
Effective: 2021-02-26
Alternative parts: null
Price: 7,00 € : 7,00 €
06
P/N (SKU): 30006-080085810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: GB/T5789_M8×85
Price: 2,00 € : 2,00 €
07
P/N (SKU): 6KJ0-030891
Part Name: LH BRACKET, RADIATOR PROTECTOR
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
08
P/N (SKU): 30006-080035810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M8×35
Price: 1,50 € : 1,50 €
09
P/N (SKU): 6KJ0-030870
Part Name: FRONT LOWER RH MOUNT PLATE, ENGINE
Effective: 2021-02-26
Alternative parts: null
Price: 6,00 € : 6,00 €
10
P/N (SKU): 30204-080810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2021-02-26
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 6KJ0-030892
Part Name: RH BRACKET, RADIATOR PROTECTOR
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
12
P/N (SKU): 6KJ0-030310-10000
Part Name: SIDE BRACKET ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 16,00 € : 16,00 €
13
P/N (SKU): 6090-030006
Part Name: SIDE BRACKET SPRING
Effective: 2021-02-26
Alternative parts: FA8V-030006-1000
Price: 3,00 € : 3,00 €
14
P/N (SKU): A000-030006
Part Name: SIDE BRACKET BOLT
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
15
P/N (SKU): 30208-102010
Part Name: HEXAGON THIN NUTS
Effective: 2021-02-26
Alternative parts: null
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 30006-080090810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M8×90
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): A000-040302
Part Name: RUBBER DAMPER
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 6KJ0-030510
Part Name: CHAIN GUARD ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
20
P/N (SKU): 30006-060035810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M6×35
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 6KJ0-030830-10000
Part Name: ECU BRACKET
Effective: 2021-02-26
Alternative parts: null
Price: 6,00 € : 6,00 €
22
P/N (SKU): 609B-030002-0B00
Part Name: UPPER PLATE, ENGINE
Effective: 2021-02-26
Alternative parts: null
Specification: BLACK
Price: 9,50 € : 9,50 €
23
P/N (SKU): 6KJ0-030880
Part Name: IGNITION COIL BRACKET SEAT
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
24
P/N (SKU): 8080-040064
Part Name: FRONT FENDER DAMPER
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 6KJ0-030100-0BB0
Part Name: REAR FENDER BRACKET ASSY
Effective: 2021-02-26
Alternative parts: null
Specification: PLASTIC POWDER
Price: 23,00 € : 23,00 €
26
P/N (SKU): 30006-060025810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 6KJ0-030601-0BB0
Part Name: SUPPORT PLATE, REAR LICENCE
Effective: 2021-02-26
Alternative parts: null
Specification: PLASTIC POWDER
Price: 10,00 € : 10,00 €
28
P/N (SKU): 6KJ0-030200-0BB0
Part Name: BRACKET, REAR LICENCE
Effective: 2021-02-26
Alternative parts: null
Specification: PLASTIC POWDER
Price: 17,00 € : 17,00 €
29
P/N (SKU): 6KJ0-030820
Part Name: REAR BRACKET, FUEL TANK
Effective: 2021-02-26
Alternative parts: null
Price: 6,00 € : 6,00 €
30
P/N (SKU): 30001-080014810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M8x14
Price: 1,50 € : 1,50 €
31
P/N (SKU): 6KJ0-030810
Part Name: BRACKET, PANEL
Effective: 2021-02-26
Alternative parts: null
Price: 6,50 € : 6,50 €
32
P/N (SKU): 6KJ0-030850
Part Name: FRONT BRACKET, FUEL TANK PANEL
Effective: 2021-02-26
Alternative parts: null
Price: 4,50 € : 4,50 €
33
P/N (SKU): 6KJ0-030840
Part Name: BRACKET, REGULATOR
Effective: 2021-02-26
Alternative parts: null
Price: 4,50 € : 4,50 €
34
P/N (SKU): 6KJ3-190011
Part Name: VIN PLATE
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
35
P/N (SKU): 30902-0400820
Part Name: MUSHROOM HEAD BREAK MANDREL BLIND RIVETS
Effective: 2021-02-26
Alternative parts: 30902-0401320
Specification: φ4×8
Price: 1,50 € : 1,50 €
36
P/N (SKU): 30006-080055810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M8×55
Price: 2,00 € : 2,00 €
37
P/N (SKU): 6KJ0-030910
Part Name: ROLL-OVER SENSOR BRACKET
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
38
P/N (SKU): 6KJ0-030503
Part Name: RUBBER PLUG
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
39
P/N (SKU): 30006-050012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: M5×12
Price: 1,50 € : 1,50 €
-+
40
P/N (SKU): 6KJ0-030920
Part Name: RH REFLECTOR MOUNTING SEAT
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
41
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
