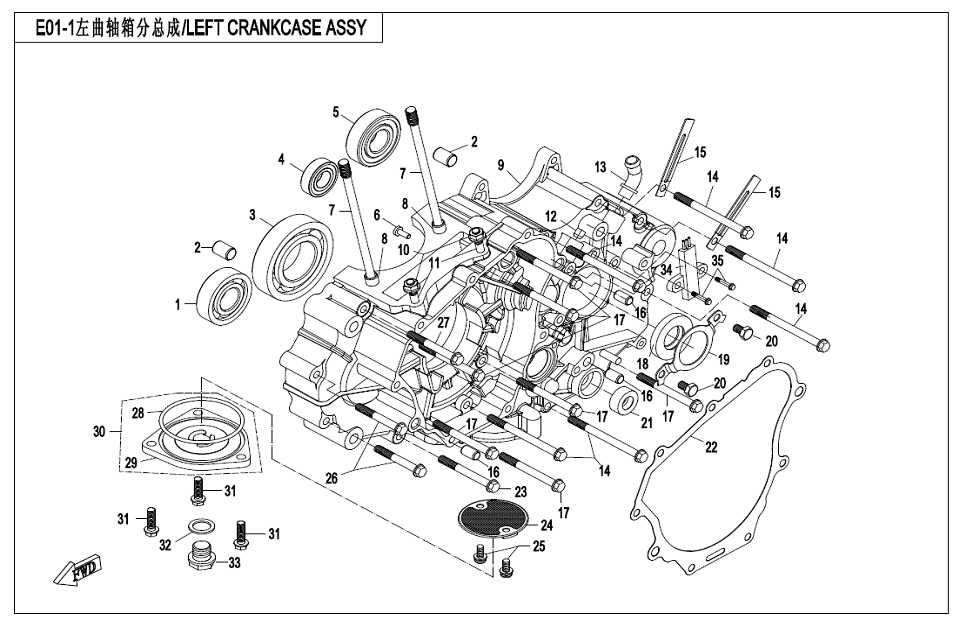

LEFT CRANKCASE ASSY - E01-1

LEFT CRANKCASE ASSY - E01-1

No.

01
P/N (SKU): 30400-02006
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 20×47×14
Price: 11,00 € : 11,00 €
-+
02
P/N (SKU): 0C10-011007
Part Name: DOWEL PIN
Effective: 2021-02-26
Alternative parts:
Specification: Dia11x16
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 30400-03503
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 35×72×17
Price: 17,00 € : 17,00 €
-+
04
P/N (SKU): 30400-01502
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 15×32×9
Price: 4,00 € : 4,00 €
-+
05
P/N (SKU): 30400-02001
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 20×47×14
Price: 6,50 € : 6,50 €
-+
06
P/N (SKU): 0A70-011008
Part Name: SCREW 4x11
Effective: 2021-02-26
Alternative parts:
Specification: 4x11
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 0010-011005-0010
Part Name: CYLINDER STUD BOLT B
Effective: 2021-02-26
Alternative parts: 0010-011005-00001
Price: 2,50 € : 2,50 €
08
P/N (SKU): 0010-011007
Part Name: DOWEL PIN
Effective: 2021-02-26
Alternative parts:
Specification: Dia10x16
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0A80-011100-1B200
Part Name: LH CRANKCASE ASSY
Effective: 2021-02-26
Alternative parts:
Specification: MATTE BLACK
Price: 133,00 € : 133,00 €
-+
10
P/N (SKU): 30202-060830
Part Name: NUT M6
Effective: 2021-02-26
Alternative parts: 30202-060110
Specification: M6
Price: 1,50 € : 1,50 €
11
P/N (SKU): 30011-060025820
Part Name: STUD
Effective: 2021-02-26
Alternative parts:
Specification: M6x25
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): 0A70-013004
Part Name: PLUG
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
13
P/N (SKU): 0A80-011002
Part Name: BREATHER HOSE JOINT
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
14
P/N (SKU): 0A70-011005
Part Name: BOLT M6x75
Effective: 2021-02-26
Alternative parts: 0A70-011005-00001
Specification: M6x75
Price: 1,50 € : 1,50 €
15
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2021-02-26
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 0010-080008
Part Name: DOWEL PIN
Effective: 2021-02-26
Alternative parts: 0DM0-022201-10000
Specification: 8X14
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 0010-011017-0010
Part Name: BOLT M6x60
Effective: 2021-02-26
Alternative parts:
Specification: M6x60
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 0A80-011500
Part Name: OIL SEAL
Effective: 2021-02-26
Alternative parts:
Specification: 20x40X6
Price: 3,50 € : 3,50 €
-+
19
P/N (SKU): 0A70-011006
Part Name: COUNTERSHAFT OIL SEAL PRESS
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): 30004-060010850
Part Name: BOLT M6x10
Effective: 2021-02-26
Alternative parts:
Specification: M6x10
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 0A70-011400
Part Name: OIL SEAL
Effective: 2021-02-26
Alternative parts:
Specification: 12x22x9
Price: 2,00 € : 2,00 €
-+
22
P/N (SKU): 0A80-011001
Part Name: GASKET, LH FRONT COVER
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
23
P/N (SKU): 0010-021018-0010
Part Name: BOLT M6x55
Effective: 2021-02-26
Alternative parts:
Specification: M6x55
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 0A70-011300
Part Name: FILTER ASSY
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
25
P/N (SKU): 30113-050012430
Part Name: SCREW ASSY
Effective: 2021-02-26
Alternative parts:
Specification: M5x12@CHROME-PLATED
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 0180-013208-0010
Part Name: BOLT M6x45
Effective: 2021-02-26
Alternative parts:
Specification: M6x45
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 0010-013010-0010
Part Name: BOLT M6x50
Effective: 2021-02-26
Alternative parts: 0JWV-011108-3000
Specification: M6x50
Price: 1,50 € : 1,50 €
28
P/N (SKU): 0A70-011002
Part Name: O-RING 60.5x2.4,OIL STRAINER COVER
Effective: 2021-02-26
Alternative parts:
Specification: 60.5x2.4
Price: 2,00 € : 2,00 €
-+
29
P/N (SKU): 0A70-011004-0B20
Part Name: FILTER COVER
Effective: 2021-02-26
Alternative parts:
Specification: MATTE BLACK
Price: 12,00 € : 12,00 €
-+
30
P/N (SKU): 0A70-0110A0-0B20
Part Name: FILTER COVER ASSY
Effective: 2021-02-26
Alternative parts:
Specification: MATTE BLACK
Price: 12,00 € : 12,00 €
-+
31
P/N (SKU): 0010-023010-0010
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 0JWV-011107-3000
Specification: M6x20
Price: 1,50 € : 1,50 €
32
P/N (SKU): 0180-011006
Part Name: GASKET 14
Effective: 2021-02-26
Alternative parts:
Specification: 14
Price: 1,50 € : 1,50 €
-+
33
P/N (SKU): 0A70-013007-00001
Part Name: SCREW PLUG M14x1.25x12
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
34
P/N (SKU): 0A80-011400
Part Name: SPEED SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 34,00 € : 34,00 €
-+
35
P/N (SKU): 0010-030002-0020
Part Name: BOLT M5x16
Effective: 2021-02-26
Alternative parts: 0010-030002-00001
Specification: M5x16
Price: 1,50 € : 1,50 €
