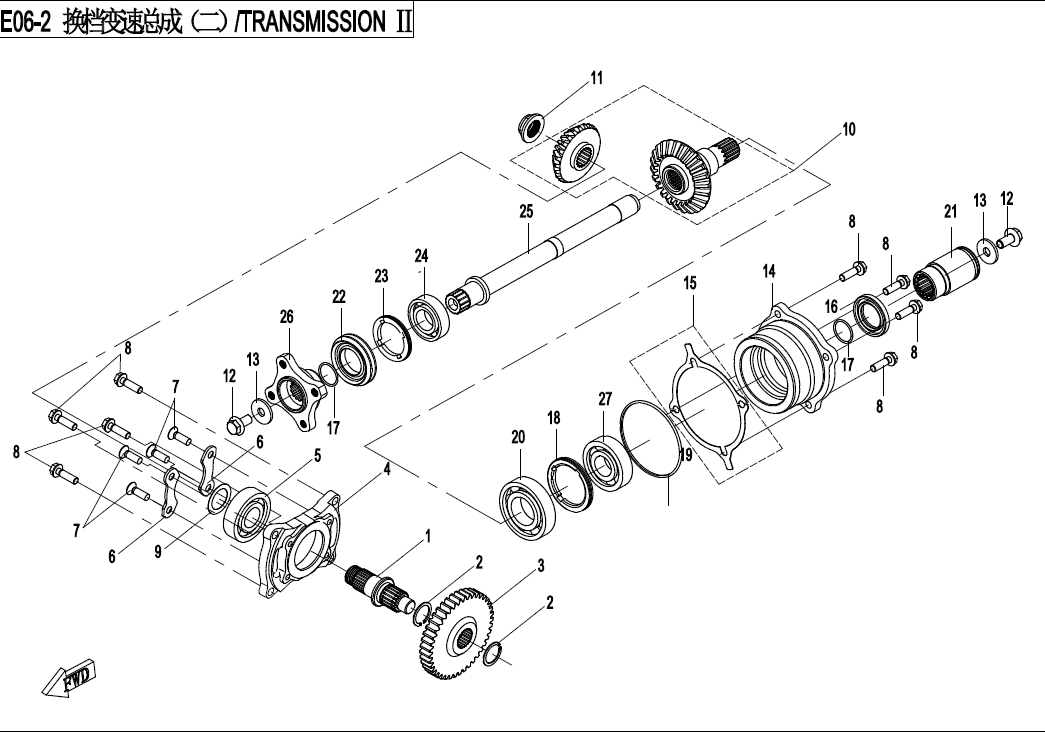

TRANSMISSION SYSTEM(2) - E06-2

TRANSMISSION SYSTEM(2) - E06-2

No.

01
P/N (SKU): 0180-062101
Part Name: DRIVE BEVEL GEAR SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 31,00 € : 31,00 €
-+
02
P/N (SKU): 0180-061007-0050
Part Name: CIRCLIP 25
Effective: 2021-02-26
Alternative parts:
Specification: 25
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 0180-062102-00001
Part Name: OUTPUT DRIVEN GEAR
Effective: 2021-02-26
Alternative parts:
Price: 61,00 € : 61,00 €
-+
04
P/N (SKU): 0180-062103-10000
Part Name: BEARING SEAT, DRIVE BEVEL GEAR
Effective: 2021-02-26
Alternative parts:
Price: 29,00 € : 29,00 €
-+
05
P/N (SKU): 30499-02501
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 6305C3@NTN
Price: 20,00 € : 20,00 €
-+
06
P/N (SKU): 0180-062104-0010
Part Name: LIMITATOR, BEARING
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
07
P/N (SKU): 30124-080025810
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M8x25@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 0110-060011-0010
Part Name: BOLT M8×28
Effective: 2021-02-26
Alternative parts: 0JYA-062104
Specification: M8x28
Price: 2,00 € : 2,00 €
09
P/N (SKU): 0180-062105-0004
Part Name: ADJUSTING WASHER, DRIVE SHAFT GEAR
Effective: 2021-02-26
Alternative parts:
Specification: t=0.35
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0180-062105-0003
Part Name: ADJUSTING WASHER, DRIVE SHAFT GEAR
Effective: 2021-02-26
Alternative parts:
Specification: t=0.3
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0180-062105-0002
Part Name: ADJUSTING GASKET, DRIVE BEVEL GEAR T=0.25
Effective: 2021-02-26
Alternative parts:
Specification: T=0.25
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0180-062105-0001
Part Name: ADJUSTING GASKET, DRIVE BEVEL GEAR T=0.2
Effective: 2021-02-26
Alternative parts:
Specification: T=0.2
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 0GR0-0622A0-10001
Part Name: BEVEL GEAR ASSY
Effective: 2021-02-26
Alternative parts:
Price: 91,00 € : 91,00 €
-+
11
P/N (SKU): 0180-062107-00001
Part Name: BEVEL GEAR LOCK NUT
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): 0JWA-060002
Part Name: BOLT M10x1.25x30
Effective: 2021-02-26
Alternative parts: 0JWA-060002-00001
Specification: M10x1.25x30
Price: 2,50 € : 2,50 €
13
P/N (SKU): 0GR0-062204
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 10x27.5x4
Price: 2,50 € : 2,50 €
-+
14
P/N (SKU): 0800-062202-1000
Part Name: BEARING HOUSING, DRIVEN BEVEL GEAR
Effective: 2021-02-26
Alternative parts: 0800-062202-10001
Price: 43,00 € : 43,00 €
15
P/N (SKU): 0800-062203-0004
Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.5
Effective: 2021-02-26
Alternative parts:
Specification: T=0.5
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 0800-062203-0003
Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.4
Effective: 2021-02-26
Alternative parts:
Specification: T=0.4
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 0800-062203-0002
Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.3
Effective: 2021-02-26
Alternative parts:
Specification: T=0.3
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 0800-062203-0001
Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.2
Effective: 2021-02-26
Alternative parts:
Specification: T=0.2
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 0800-062204
Part Name: OIL SEAL
Effective: 2021-02-26
Alternative parts:
Specification: 35x50x7
Price: 6,50 € : 6,50 €
-+
17
P/N (SKU): 0800-062205
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 25x2
Price: 2,00 € : 2,00 €
-+
18
P/N (SKU): 0800-062206
Part Name: STOPPER NUT, BEARING
Effective: 2021-02-26
Alternative parts:
Price: 4,00 € : 4,00 €
-+
19
P/N (SKU): 0180-062205
Part Name: O-SEAL RING
Effective: 2021-02-26
Alternative parts:
Specification: 88x2.5
Price: 4,00 € : 4,00 €
-+
20
P/N (SKU): 30400-03500
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 35
Price: 11,00 € : 11,00 €
-+
21
P/N (SKU): 9CR6-300201-10000
Part Name: DRIVE SLEEVE, ENGINE
Effective: 2021-02-26
Alternative parts:
Price: 29,00 € : 29,00 €
-+
22
P/N (SKU): 0JWA-062302
Part Name: OIL SEAL
Effective: 2021-02-26
Alternative parts: 0JWA-062302-00001
Specification: 35x61x9
Price: 10,00 € : 10,00 €
23
P/N (SKU): 0180-060008
Part Name: BEARING RETAINER, FRONT OUTPUT SHAFT
Effective: 2021-02-26
Alternative parts:
Price: 6,50 € : 6,50 €
-+
24
P/N (SKU): 30400-02501
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 25
Price: 7,50 € : 7,50 €
-+
25
P/N (SKU): 0GR0-062301-10000
Part Name: FRONT OUTPUT SHAFT ASSY
Effective: 2021-02-26
Alternative parts: 0GR0-062301-10001
Price: 43,00 € : 43,00 €
25
P/N (SKU): 0GR0-062301-10001
Part Name: FRONT OUTPUT SHAFT ASSY
Effective: 2021-02-26
Alternative parts:
Price: 45,00 € : 45,00 €
-+
26
P/N (SKU): 0GR0-060003
Part Name: COUPLER
Effective: 2021-02-26
Alternative parts: 0GR0-060003-00001
Price: 30,00 € : 30,00 €
-+
27
P/N (SKU): 30400-02502
Part Name: BEARING
Effective: 2021-02-26
Remarks: 6305-1BB
Alternative parts:
Specification: CHINA
Price: 11,00 € : 11,00 €
-+
