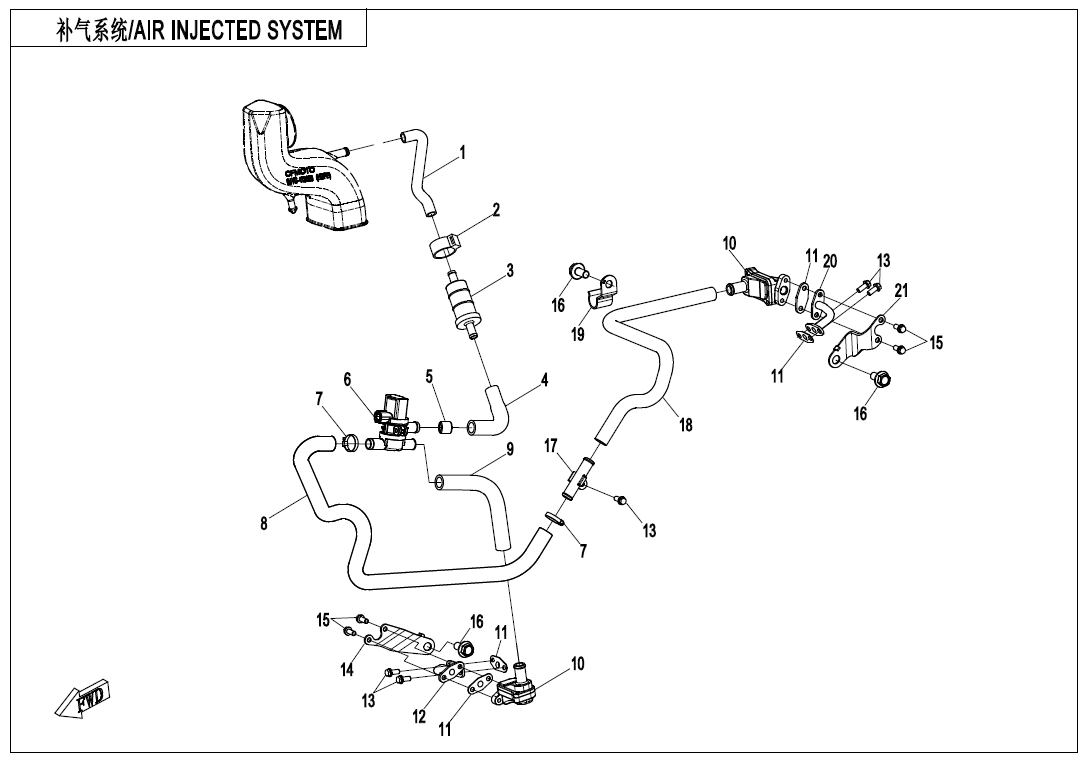

AIR INJECTED SYSTEM - F00-3

AIR INJECTED SYSTEM - F00-3

No.

01
P/N (SKU): 0JYC-114103
Part Name: GULP HOSE, SMALL AIR FILTER
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
02
P/N (SKU): 0JYC-114104
Part Name: GULP AIR FILTER RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
03
P/N (SKU): 0JYC-114000
Part Name: GULP AIR FILTER
Effective: 2021-02-26
Alternative parts: null
Price: 7,00 € : 7,00 €
-+
04
P/N (SKU): 0JYC-114101
Part Name: SWITCH VALVE AIR INLET HOSE
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
05
P/N (SKU): 0JWD-114102
Part Name: RESTRICTION PLUG, FIRST CYLINDER
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
06
P/N (SKU): 0JY#-179000-3000
Part Name: SECONDARY GULP VALVE
Effective: 2021-02-26
Alternative parts: 0JYV-179000-3001
Price: 40,00 € : 40,00 €
07
P/N (SKU): 30604-116500
Part Name: HOSE CLAMP
Effective: 2021-02-26
Alternative parts: null
Specification: QC/T620 16.5 (12～20)
Price: 2,00 € : 2,00 €
-+
08
P/N (SKU): 0JYC-028404
Part Name: CYLINDER 2 SAS HOSE 2
Effective: 2021-02-26
Alternative parts: null
Price: 13,00 € : 13,00 €
-+
09
P/N (SKU): 0JYC-022004
Part Name: GULP HOSE, FIRST CYLINDER
Effective: 2021-02-26
Alternative parts: null
Price: 5,00 € : 5,00 €
-+
10
P/N (SKU): 0JYC-022200
Part Name: SAS ONE-WAY VALVE
Effective: 2021-02-26
Alternative parts: null
Price: 21,00 € : 21,00 €
-+
11
P/N (SKU): 8030-020101
Part Name: ONE-WAY VALVE GASKET
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
12
P/N (SKU): 0JYC-028210
Part Name: GULP PIPE, FIRST CYLINDER
Effective: 2021-02-26
Alternative parts: 0JYC-028210-00001
Price: 12,00 € : 12,00 €
12
P/N (SKU): 0JYC-028210-00001
Part Name: AIS PIPE, FIRST CYLINDER
Effective: 2022-02-12
Remarks: null
Alternative parts: null
Price: 13,00 € : 13,00 €
13
P/N (SKU): 30001-060014810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M6×14
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 0JYC-028211
Part Name: GULP PIPE BRACKET, FIRST CYLINDER
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
15
P/N (SKU): 30001-060016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: GB/T5787_M6x16_TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
16
P/N (SKU): 30006-100020810
Part Name: BOLT M10x20
Effective: 2021-02-26
Alternative parts: 30006-103020810
Specification: M10x20
Price: 2,00 € : 2,00 €
17
P/N (SKU): 0JYC-028410
Part Name: GULP HOSE JOINT ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 8,50 € : 8,50 €
-+
18
P/N (SKU): 0JYC-028401
Part Name: CYLINDER 2 GULP HOSE 1
Effective: 2021-02-26
Alternative parts: null
Price: 12,00 € : 12,00 €
-+
18
P/N (SKU): 0JYV-028401-3100
Part Name: GULP HOSE 1, SECOND CYLINDER
Effective: 2022-03-17
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
19
P/N (SKU): 0JYC-028402
Part Name: CYLINDER 2 SAS HOSE 1 BRACKET
Effective: 2021-02-26
Alternative parts: 0JYV-028402-3100
Price: 3,00 € : 3,00 €
20
P/N (SKU): 0JYC-028220
Part Name: CYLINDER 2 GULP PIPE ASSY
Effective: 2021-02-26
Alternative parts: 0JYC-028220-00001
Price: 12,00 € : 12,00 €
20
P/N (SKU): 0JYC-028220-00001
Part Name: CYLINDER 2 SAS PIPE ASSY
Effective: 2022-02-12
Remarks: null
Alternative parts: null
Price: 15,00 € : 15,00 €
-+
21
P/N (SKU): 0JYC-028221
Part Name: CYLINDER 2 SAS PIPE BRACKET
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
