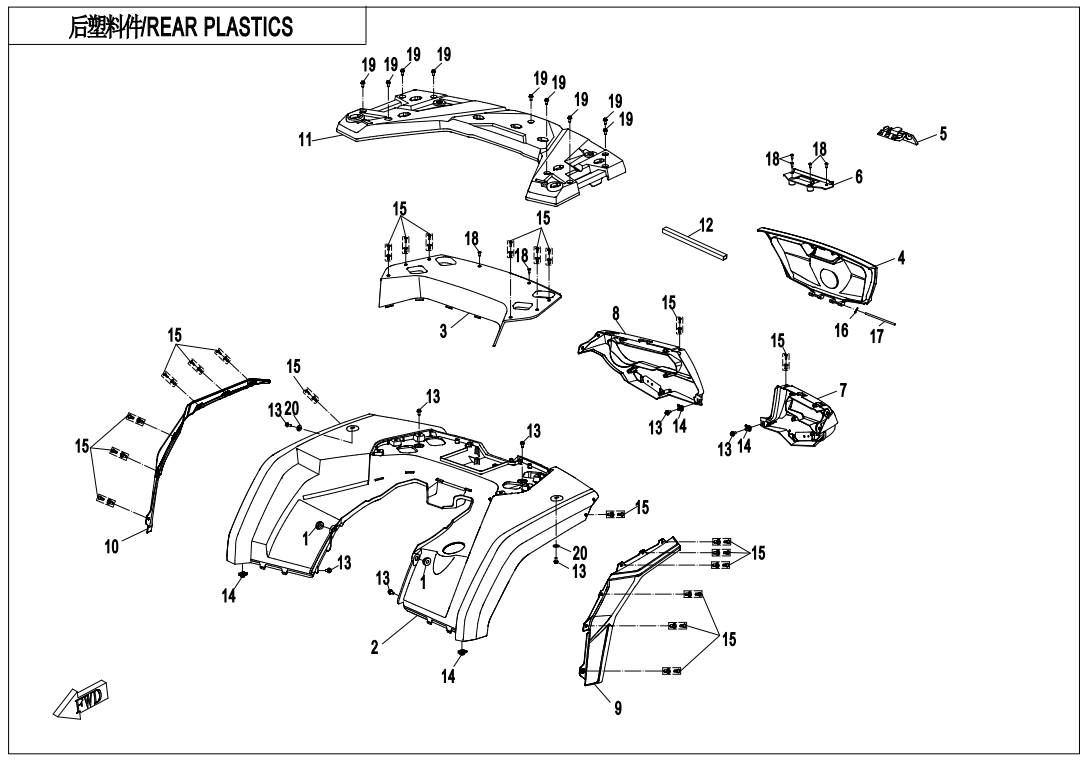

REAR PLASTICS - F04-4-V1

REAR PLASTICS - F04-4-V1

No.

01
P/N (SKU): 5BY0-040010
Part Name: RUBBER SLEEVE
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
02
P/N (SKU): 9AWA-043011-0B500
Part Name: REAR FENDER
Effective: 2021-02-26
Alternative parts: null
Specification: TITANIUM GREY GLOSS
Price: 305,00 € : 305,00 €
-+
02
P/N (SKU): 9AWA-043011-0YD00
Part Name: REAR FENDER
Effective: 2021-02-26
Alternative parts: null
Specification: LAVA ORANGE
Price: 284,00 € : 284,00 €
02
P/N (SKU): 9AWA-043011-0RE00
Part Name: REAR FENDER
Effective: 2021-02-26
Alternative parts: null
Specification: TRUE TIMBER CAMO
Price: 305,00 € : 305,00 €
-+
02
P/N (SKU): 9AWA-043011-0EK00
Part Name: REAR FENDER
Effective: 2021-02-26
Alternative parts: null
Specification: ATHENS BLUE
Price: 284,00 € : 284,00 €
-+
03
P/N (SKU): 9AWA-043012
Part Name: REAR TOP COVER
Effective: 2021-02-26
Alternative parts: null
Price: 20,00 € : 20,00 €
-+
04
P/N (SKU): 9AWA-043013
Part Name: REAR TRUNK COVER
Effective: 2021-02-26
Alternative parts: 9AWV-043013-2E00
Price: 27,00 € : 27,00 €
05
P/N (SKU): 9AWA-043014
Part Name: REAR TRUNK BUCKLE
Effective: 2021-02-26
Alternative parts: null
Price: 8,50 € : 8,50 €
-+
06
P/N (SKU): 9AWA-043015
Part Name: REAR TAIL BOX BUCKLE FIXED SEAT
Effective: 2021-02-26
Alternative parts: null
Price: 17,00 € : 17,00 €
-+
07
P/N (SKU): 9AWA-043021
Part Name: PANEL,LH TAILLIGHT
Effective: 2021-02-26
Alternative parts: null
Price: 17,00 € : 17,00 €
-+
08
P/N (SKU): 9AWA-043022
Part Name: RH TAILLIGHT PANEL
Effective: 2021-02-26
Alternative parts: 9AWV-043022-2300
Price: 12,00 € : 12,00 €
-+
09
P/N (SKU): 9AWA-260013
Part Name: LH REAR FENDER (EX)
Effective: 2021-02-26
Alternative parts: null
Price: 24,00 € : 24,00 €
-+
10
P/N (SKU): 9AWA-260014
Part Name: RH REAR FENDER (EX)
Effective: 2021-02-26
Alternative parts: null
Price: 24,00 € : 24,00 €
11
P/N (SKU): 9AWA-141004
Part Name: REAR RACK COVER
Effective: 2021-02-26
Alternative parts: null
Price: 65,00 € : 65,00 €
12
P/N (SKU): 9AWA-043016
Part Name: STORAGE BOX COVER SEAL SPONGE STRAP
Effective: 2021-02-26
Alternative parts: null
Price: 12,00 € : 12,00 €
-+
13
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 8030-040800-00001
Part Name: NUT CLIP M6
Effective: 2021-02-26
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 9060-040310
Part Name: CLAMP ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
16
P/N (SKU): 30903-0160810
Part Name: COTTER PIN
Effective: 2021-02-26
Alternative parts: null
Specification: M16x8
Price: 1,50 € : 1,50 €
17
P/N (SKU): 9AWA-043017-10000
Part Name: PIN SHAFT Dia 4
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
18
P/N (SKU): 30110-480160010
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts: null
Specification: ST4.8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2021-02-26
Alternative parts: null
Specification: M6x14
Price: 1,50 € : 1,50 €
20
P/N (SKU): 30306-080112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: null
Specification: φ8
Price: 1,50 € : 1,50 €
-+
