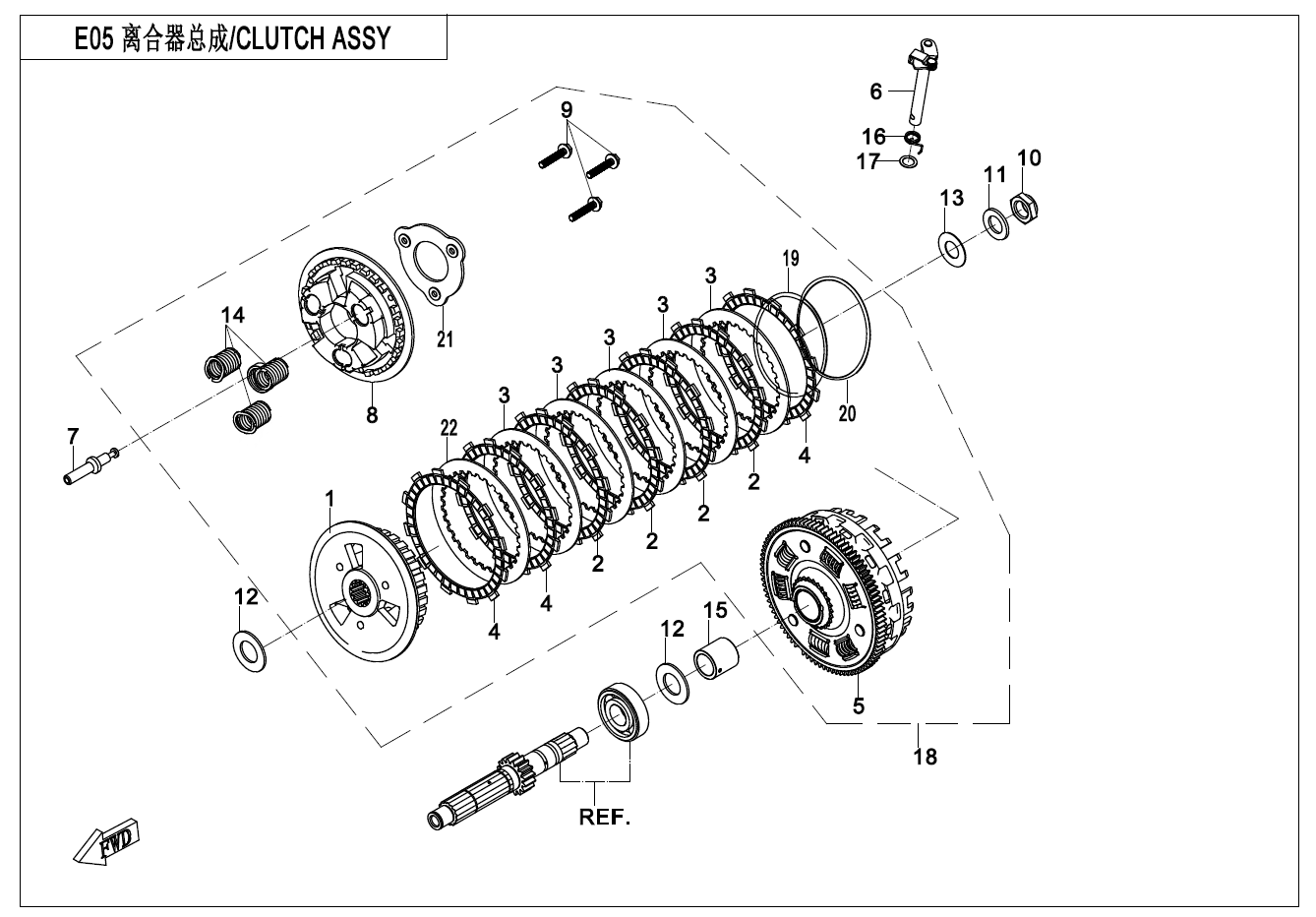

CLUTCH(SLIPPING CLUTCH ) - E05-B | 2021, ENGINE, 283MT FOR

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0HU0-051001

Part Name: MIDDLE SLEEVE

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Price: 97,50 € : 97,50 €

02

P/N (SKU): 0HU0-051300

Part Name: FRICTION DISC B

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Price: 24,00 € : 24,00 €

03

P/N (SKU): 0HU0-051002

Part Name: STEEL PLATE A

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Price: 11,00 € : 11,00 €

04

P/N (SKU): 0HU0-051200

Part Name: FRICTION DISC A

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Price: 24,00 € : 24,00 €

05

P/N (SKU): 0HU0-051100

Part Name: OUTER GUARD ASSY

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Price: 334,25 € : 334,25 €

06

P/N (SKU): 0700-013200-30000

Part Name: CLUTCH CONTROL SHAFT ASSY

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Price: 14,00 € : 14,00 €

07

P/N (SKU): 0HU0-050004

Part Name: TIE-ROD

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Price: 9,50 € : 9,50 €

09

P/N (SKU): 0HU0-051006

Part Name: BOLT M6x35

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Price: 3,00 € : 3,00 €

10

P/N (SKU): 0700-061002-00001

Part Name: NUT

Effective: 2021-04-08

Remarks: null

Alternative parts: 0700-061002-00002

Price: 2,50 € : 2,50 €

11

P/N (SKU): 0700-061003

Part Name: CIRCLIP 20

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Specification: 20

Price: 3,00 € : 3,00 €

12

P/N (SKU): 0700-061005

Part Name: WASHER

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Specification: 25.5x47x2.5

Price: 2,50 € : 2,50 €

13

P/N (SKU): 0A70-011007

Part Name: WASHER

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Specification: 20x40x1

Price: 1,50 € : 1,50 €

14

P/N (SKU): 0HU0-051004

Part Name: SPEING

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Price: 7,00 € : 7,00 €

15

P/N (SKU): 0700-061004-00010

Part Name: SHAFT SLEEVE, CLUTCH

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Price: 11,00 € : 11,00 €

16

P/N (SKU): 0700-013006-00001

Part Name: CLUTCH CONTROL LEVER RETURN SPRING

Effective: 2021-04-08

Remarks: null

Alternative parts: 0700-013006-10000

Price: 1,50 € : 1,50 €

17

P/N (SKU): 0700-013007

Part Name: WASHER

Effective: 2021-04-08

Remarks: null

Alternative parts: 0700-013007-10000

Specification: 12.5x18.5x0.6

Price: 1,50 € : 1,50 €

18

P/N (SKU): 0HU0-051000-00010

Part Name: CLUTCH SUB ASSY

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Price: 841,00 € : 841,00 €

18

P/N (SKU): 0HU0-051000-00020

Part Name: CLUTCH SUB ASSY

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Price: 841,00 € : 841,00 €

19

P/N (SKU): 0HU0-051008

Part Name: WASHER

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Specification: 110x118x1

Price: 8,25 € : 8,25 €

20

P/N (SKU): 0HU0-051009

Part Name: CIRCLIP A

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Price: 36,00 € : 36,00 €

22

P/N (SKU): 0HU0-051003

Part Name: STEEL PLATE B

Effective: 2021-04-08

Remarks: null

Alternative parts: null

Price: 11,00 € : 11,00 €
