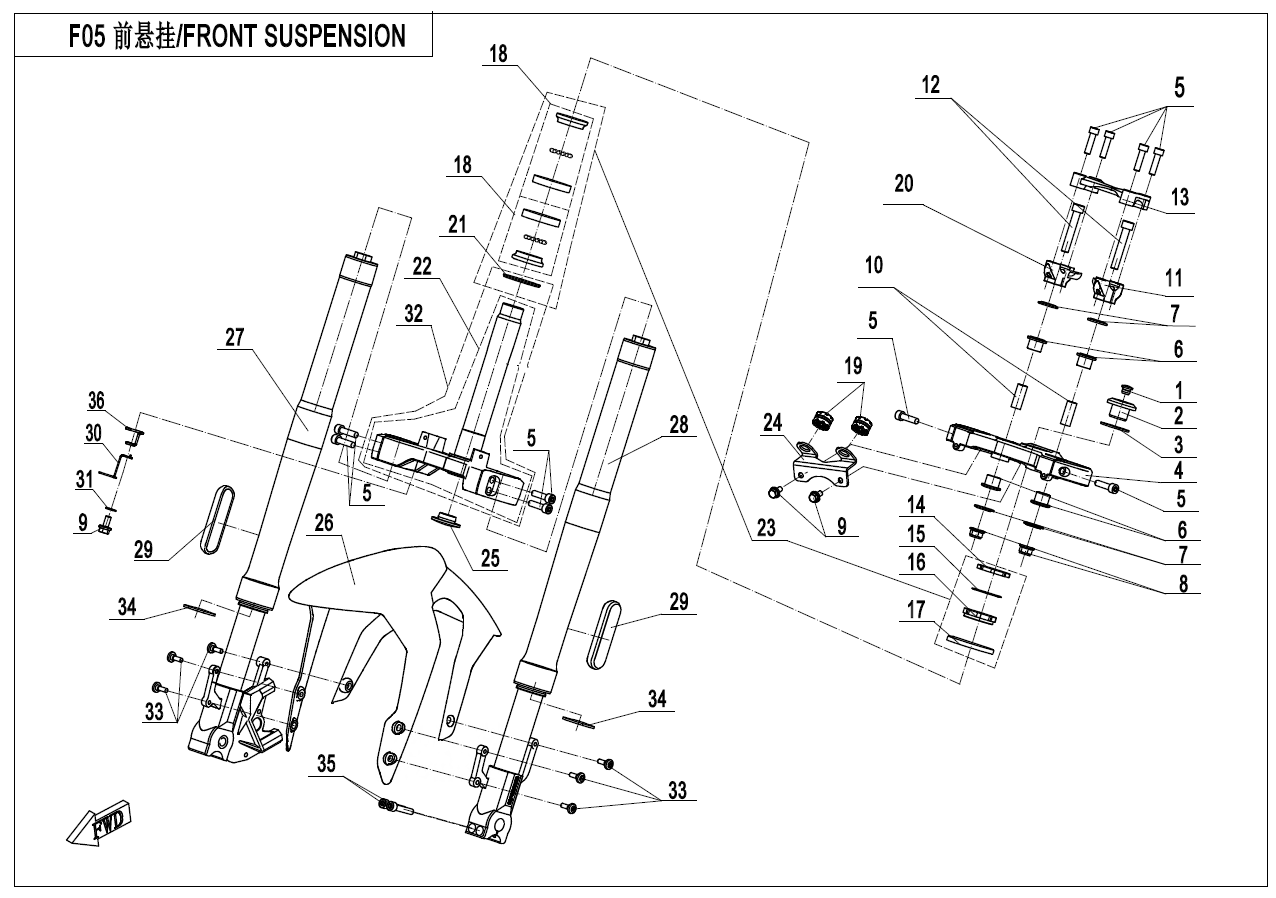

FRONT SUSPENSION - F05

FRONT SUSPENSION - F05

No.

01
P/N (SKU): A000-050005
Part Name: RUBBER PLUG 1
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
02
P/N (SKU): A000-050003
Part Name: FIXING SCREW, UPPER TRIPLE CLAMP
Effective: 2021-02-26
Alternative parts: null
Price: 6,50 € : 6,50 €
03
P/N (SKU): A000-050004
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: null
Specification: 5
Price: 1,50 € : 1,50 €
04
P/N (SKU): 6KJ0-050001-1H300
Part Name: UPPER TRIPLE CLAMP
Effective: 2021-02-26
Alternative parts: 6KMV-050001-B000
Specification: MATTE SILVER BLACK
Price: 82,00 € : 82,00 €
04
P/N (SKU): 6KMV-050001-B000
Part Name: UPPER TRIPLE CLAMP
Effective: 2021-08-16
Alternative parts: null
Specification: null
Price: 74,00 € : 74,00 €
05
P/N (SKU): 30102-080030860
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2021-02-26
Alternative parts: null
Specification: M8x30@DACROMET
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 6KJ0-050004
Part Name: DAMPER RUBBER, UPPER TRIPLE CLAMP
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 6KJ0-050005
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
08
P/N (SKU): 30204-102810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2021-02-26
Alternative parts: null
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 30006-060012870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-02-26
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 6KJ0-050006-00001
Part Name: LINER, UPPER TRIPLE CLAMP
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
11
P/N (SKU): 6KMV-100032-B000-0BP00
Part Name: LH SUPPORTER, HANDLEBAR
Effective: 2021-06-30
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 9,00 € : 9,00 €
12
P/N (SKU): 30102-102060810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2021-02-26
Alternative parts: F04V-051003-1000
Specification: M10x1.25x60
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 6KJ0-050002-1H300
Part Name: HANDLEBAR COVER
Effective: 2021-02-26
Alternative parts: 6KJV-100003-6001
Specification: MATTE SILVER BLACK
Price: 18,00 € : 18,00 €
-+
14
P/N (SKU): A000-050006
Part Name: LOCK NUT 1
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
15
P/N (SKU): A000-050008
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: null
Specification: 5
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): A000-050007
Part Name: LOCK NUT 2
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
17
P/N (SKU): A000-050009
Part Name: DUST CAP, UPPER RETAINER
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): A000-050100-10000
Part Name: STEERING BEARING ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 19,00 € : 19,00 €
-+
19
P/N (SKU): 5020-031001
Part Name: RUBBER SLEEVE, FRONT LICENSE BRACKET
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): 6KMV-100033-B000-0BP00
Part Name: RH SUPPORTER, HANDLEBAR
Effective: 2021-06-30
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 9,00 € : 9,00 €
21
P/N (SKU): A000-050400
Part Name: ANTI-DUST CAP, LOWER RETAINING RING
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
22
P/N (SKU): 6KJ0-050300-0H300
Part Name: LOWER TRIPLE CLAMP, FRONT FORK PIPE
Effective: 2021-02-26
Alternative parts: 6KJ0-050300-0BP00
Specification: SILVER BLACK
Price: 76,00 € : 76,00 €
-+
23
P/N (SKU): A000-0501B0
Part Name: STEERING BEARING ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 41,00 € : 41,00 €
24
P/N (SKU): 6KM0-030002-0B200
Part Name: HEADLIGHT BRACKET
Effective: 2021-02-26
Alternative parts: null
Specification: MATTE BLACK
Price: 3,50 € : 3,50 €
25
P/N (SKU): A000-050011
Part Name: RUBBER PLUG 2
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
26
P/N (SKU): 6KM#-050009-6000-0BM00
Part Name: FRONT FENDER
Effective: 2021-02-26
Alternative parts: null
Specification: NEBULA BLACK
Price: 56,00 € : 56,00 €
27
P/N (SKU): 6KM0-050200
Part Name: FRONT RH SHOCK ABSORBER
Effective: 2021-02-26
Alternative parts: null
Price: 191,00 € : 191,00 €
28
P/N (SKU): 6KM0-050100
Part Name: FRONT LH SHOCK ABSORBER
Effective: 2021-02-26
Alternative parts: null
Price: 191,00 € : 191,00 €
29
P/N (SKU): 6KJ0-050030
Part Name: SIDE REFLECTOR
Effective: 2021-02-26
Alternative parts: 6KJV-160920-8001-M1
Price: 3,00 € : 3,00 €
-+
30
P/N (SKU): 6KJ0-050012
Part Name: LIMIT WIRE, FRONT BRAKE HOSE
Effective: 2021-02-26
Alternative parts: null
Price: 2,50 € : 2,50 €
31
P/N (SKU): 30306-060112
Part Name: PLAIN WASHERS
Effective: 2021-02-26
Alternative parts: 30306-060142
Specification: φ6
Price: 1,50 € : 1,50 €
32
P/N (SKU): 6KJ0-0500A0
Part Name: LOWER TRIPLE CLAMP RETAINER ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 102,00 € : 102,00 €
33
P/N (SKU): 6KM0-060002
Part Name: CHAIN GUARD SCREW
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
34
P/N (SKU): 6KJ0-050410
Part Name: OIL SEAL
Effective: 2021-02-26
Alternative parts: null
Price: 10,00 € : 10,00 €
35
P/N (SKU): 30102-080040810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2021-02-26
Alternative parts: null
Specification: M8x40
Price: 1,50 € : 1,50 €
-+
36
P/N (SKU): 6KJ0-050011
Part Name: FIXING WIRE, FRONT BRAKE HOSE
Effective: 2021-02-26
Alternative parts: null
Price: 3,00 € : 3,00 €
