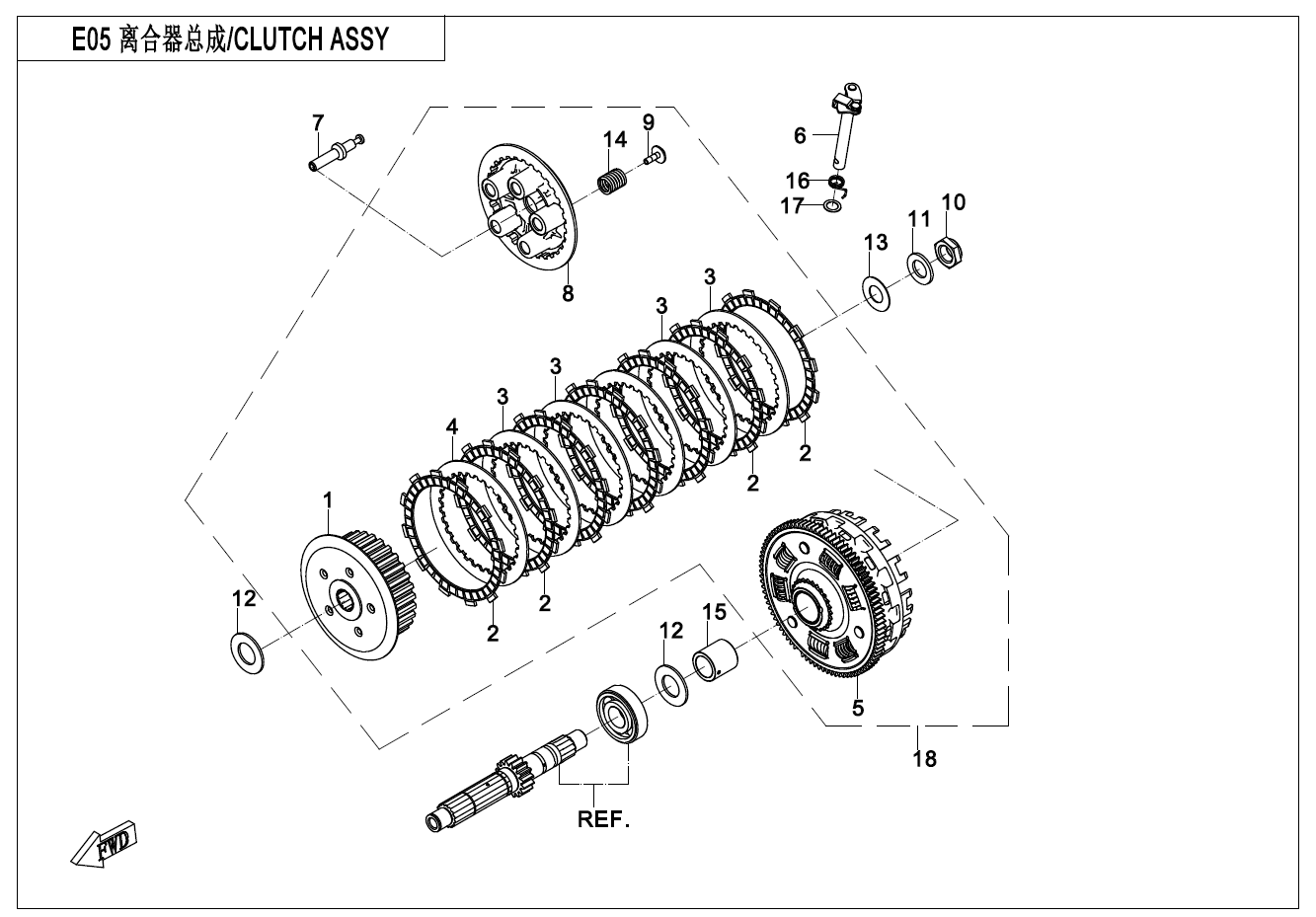

CLUTCH - E05

CLUTCH - E05

No.

01
P/N (SKU): 0700-050100
Part Name: CENTRAL SLEEVE
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 29,00 € : 29,00 €
02
P/N (SKU): 0700-050200
Part Name: FRICTION PLATE
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 22,00 € : 22,00 €
-+
03
P/N (SKU): 0700-050001
Part Name: STEEL PLATE B
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: t=2.5
Price: 6,00 € : 6,00 €
-+
04
P/N (SKU): 0700-050005
Part Name: STEEL PLATE A
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: t=2.0
Price: 6,00 € : 6,00 €
-+
05
P/N (SKU): 0700-051000
Part Name: HOUSING ASSY
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 171,00 € : 171,00 €
06
P/N (SKU): 0700-013200-20000
Part Name: CLUTCH CONTROL SHAFT ASSY
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 18,00 € : 18,00 €
-+
07
P/N (SKU): 0700-050004
Part Name: TIE-ROD
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 5,00 € : 5,00 €
08
P/N (SKU): 0700-0500B0
Part Name: OPERATING PAD, CLUTCH
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 24,00 € : 24,00 €
09
P/N (SKU): 0700-050300
Part Name: BOLT ASSY
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: M6x20
Price: 3,00 € : 3,00 €
10
P/N (SKU): 0700-061002-00002
Part Name: NUT
Effective: 2021-07-01
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
-+
11
P/N (SKU): 0700-061003
Part Name: CIRCLIP 20
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: 20
Price: 3,00 € : 3,00 €
-+
12
P/N (SKU): 0700-061005
Part Name: WASHER
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: 25.5x47x2.5
Price: 2,50 € : 2,50 €
13
P/N (SKU): 0A70-011007
Part Name: WASHER
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: 20x40x1
Price: 1,50 € : 1,50 €
14
P/N (SKU): 0700-050002
Part Name: PRESS SPRING
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
15
P/N (SKU): 0700-061004-00010
Part Name: SHAFT SLEEVE, CLUTCH
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
16
P/N (SKU): 0700-013006-10000
Part Name: CLUTCH CONTROL LEVER RETURN SPRING
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 0700-013007-10000
Part Name: WASHER
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: 12.5x18.5x0.6
Price: 1,50 € : 1,50 €
18
P/N (SKU): 0700-052000-00010
Part Name: CLUTCH SUB ASSY
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: MARK A_MATCHED WITH PRIMARY DRIVEN GEAR A
Price: 345,00 € : 345,00 €
18
P/N (SKU): 0700-052000-00020
Part Name: CLUTCH SUB ASSY
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: MARK B_MATCHED WITH PRIMARY DRIVEN GEAR B
Price: 335,00 € : 335,00 €
