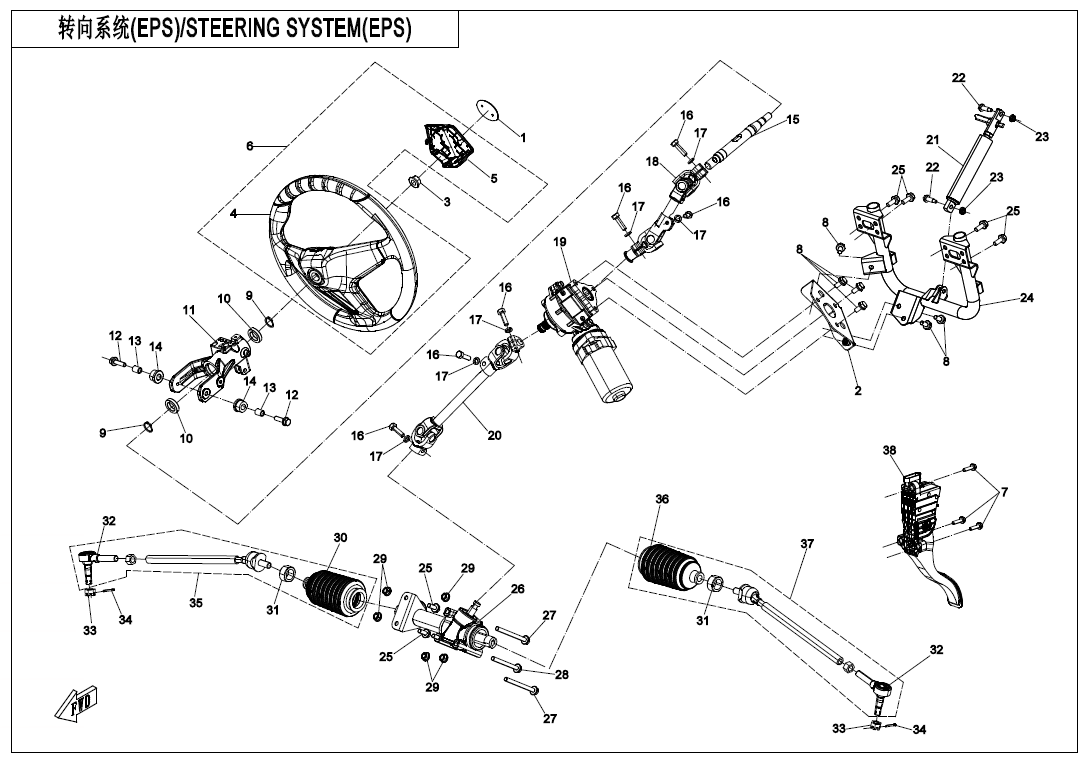

STEERING SYSTEM - F10

STEERING SYSTEM - F10

No.

01
P/N (SKU): 5ASV-190019-6000
Part Name: CFMOTO LOGO
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Specification: null
Price: 17,00 € : 17,00 €
-+
02
P/N (SKU): 5ASV-103500-6200
Part Name: BRACKET, EPS
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
03
P/N (SKU): 30204-122810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Specification: M12×1.25
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 5ASV-102110-6000
Part Name: STEERING WHEEL SUB ASSY
Effective: 2021-07-05
Alternative parts: null
Specification: null
Price: 95,00 € : 95,00 €
-+
05
P/N (SKU): 5ASV-102101-6000
Part Name: SHROUD
Effective: 2021-07-05
Alternative parts: null
Specification: null
Price: 18,00 € : 18,00 €
-+
06
P/N (SKU): 5ASV-102100-6000
Part Name: STEERING WHEEL
Effective: 2021-07-05
Alternative parts: null
Specification: null
Price: 106,00 € : 106,00 €
07
P/N (SKU): 30006-060025810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 30006-080016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
09
P/N (SKU): 30801-02005
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Specification: 20
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 30400-02005
Part Name: DEEP GROOVE BALL BEARING
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Specification: 6804Z
Price: 8,00 € : 8,00 €
-+
11
P/N (SKU): 5BY0-102004
Part Name: STEERING WHEEL BRACKET
Effective: 2021-07-05
Remarks: null
Alternative parts: 5BYV-102004-AD00
Specification: FOR STEERING WHEEL LOCK
Price: 34,00 € : 34,00 €
12
P/N (SKU): 30006-080028810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Specification: M8x28@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
13
P/N (SKU): 9060-100008-00001
Part Name: STEERING COLUMN METAL BUSHING
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 9060-100009
Part Name: STEERING COLUMN NYLON BUSHING
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Price: 6,00 € : 6,00 €
-+
15
P/N (SKU): 7000-100001
Part Name: STEERING COLUMN
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Price: 24,00 € : 24,00 €
-+
16
P/N (SKU): 30004-080030810
Part Name: HEXAGON HEAD BOLTS WITH FULL THREAD
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Specification: M8x30
Price: 1,50 € : 1,50 €
17
P/N (SKU): 30303-080112
Part Name: SPRING COIL SPRING LOCK WASHERS
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Specification: φ8@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 5HY0-103100
Part Name: UPPER STEERING UNIVERSAL SHAFT
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Price: 72,00 € : 72,00 €
-+
19
P/N (SKU): 7030-106200-00001
Part Name: EPS ASSY
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Price: 607,00 € : 607,00 €
-+
20
P/N (SKU): 5ASV-103200-6200
Part Name: LOWER STEERING UNIVERSAL SHAFT
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Price: 62,00 € : 62,00 €
-+
21
P/N (SKU): 9060-102000-00001
Part Name: GAS SPRING
Effective: 2021-07-05
Alternative parts: null
Price: 31,00 € : 31,00 €
-+
21
P/N (SKU): 5ASV-100020-6200
Part Name: GAS SPRING ASSY
Effective: 2021-08-25
Alternative parts: 5ASV-100020-6201
Specification: null
Price: 31,00 € : 31,00 €
22
P/N (SKU): 9060-102002-00001
Part Name: AIR SPRING UPPER FIXED BOLT
Effective: 2021-07-05
Remarks: null
Alternative parts: 5HYV-103001-6000
Price: 2,00 € : 2,00 €
23
P/N (SKU): 30202-060110
Part Name: HEXAGON NUTS FLANGE
Effective: 2021-07-05
Remarks: null
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMI
Price: 1,50 € : 1,50 €
24
P/N (SKU): 5ASV-103400-6000
Part Name: BRACKET, EPS
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Specification: ELECTROPHORESIS BLACK
Price: 26,00 € : 26,00 €
25
P/N (SKU): 30006-080020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Specification: M8x20@COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 5HY0-104060
Part Name: STEERING MOTOR
Effective: 2021-07-05
Alternative parts: 5ASV-104060-6200
Price: 101,00 € : 101,00 €
26
P/N (SKU): 5ASV-104060-6200
Part Name: STEERING MOTO ASSY
Effective: 2021-08-25
Remarks: null
Alternative parts: 5ASV-104060-6201
Specification: null
Price: 122,00 € : 122,00 €
-+
27
P/N (SKU): 30019-080090810
Part Name: HEXAGON HEAD BOLTS
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Specification: M8x90@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
28
P/N (SKU): 30006-080080810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-07-05
Remarks: null
Alternative parts: 30006-080080840
Specification: M8x80@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 30204-080810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 5BY0-104201
Part Name: RH PROTECTION SLEEVE, TIE ROD
Effective: 2021-07-05
Alternative parts: null
Price: 17,00 € : 17,00 €
-+
31
P/N (SKU): 5BY0-104102
Part Name: CLAMP
Effective: 2021-07-05
Alternative parts: null
Price: 2,00 € : 2,00 €
32
P/N (SKU): 5BY0-104120
Part Name: BALL JOINT, STEERING SQM
Effective: 2021-07-05
Alternative parts: null
Price: 27,00 € : 27,00 €
-+
33
P/N (SKU): 30219-122810
Part Name: HEXAGON THIN SLOTTED NUTS
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Specification: M12x1.25@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): 30903-0322210
Part Name: SPLIT PINS
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Specification: φ3.2x22@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 5ASV-104200-6000
Part Name: RH STEERING ROD ASSY
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Price: 73,00 € : 73,00 €
-+
36
P/N (SKU): 5BY0-104101
Part Name: LH PROTECTION SLEEVE, TIE ROD
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Price: 17,00 € : 17,00 €
-+
37
P/N (SKU): 5ASV-104100-6000
Part Name: LH STEERING ROD ASSY
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Price: 73,00 € : 73,00 €
-+
38
P/N (SKU): 5HY0-105000
Part Name: E-THROTTLE PEDAL
Effective: 2021-07-05
Remarks: null
Alternative parts: null
Price: 56,00 € : 56,00 €
-+
