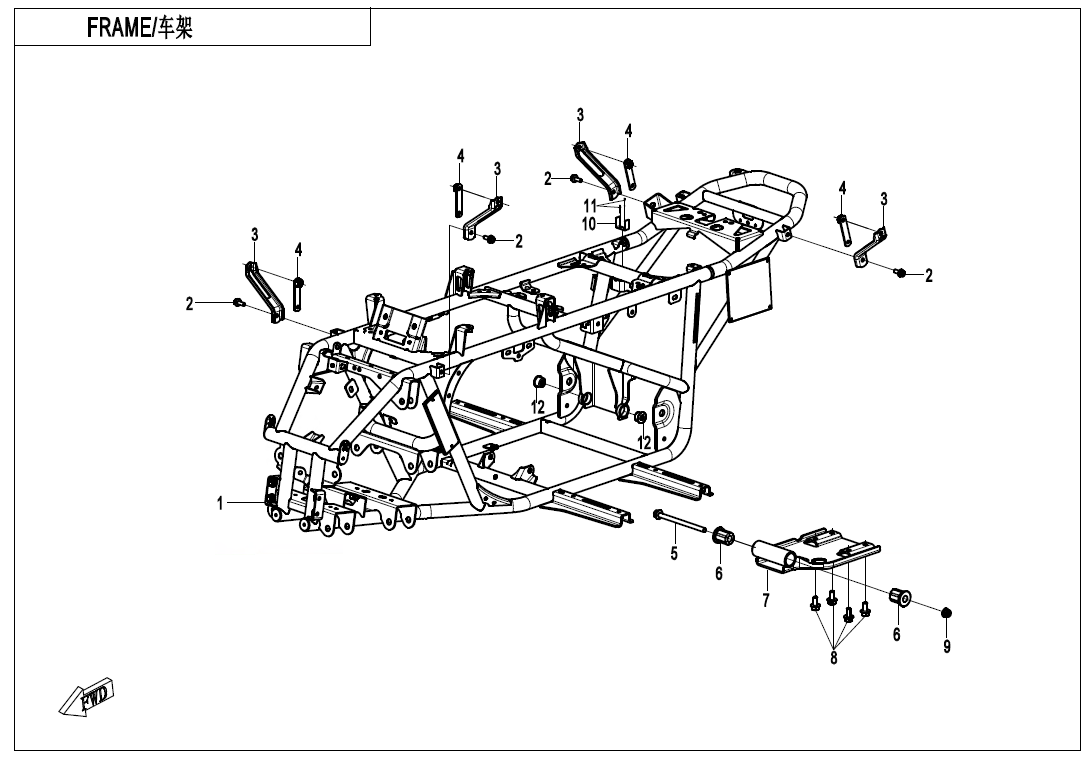

FRAME - F03-V1

FRAME - F03-V1

No.

1
P/N (SKU): 9RHV-031000-3100-01
Part Name: FRAME
Effective: 2022-11-15
Remarks: null
Alternative parts: 9RHV-031000-3300
Specification: null
Price: 329,00 € : 329,00 €
2
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-11-15
Remarks: null
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
3
P/N (SKU): 9RHV-030010-1000
Part Name: FENDER BRACKET ASSY
Effective: 2022-11-15
Alternative parts: 9RHV-030010-1001
Specification: null
Price: 3,00 € : 3,00 €
-+
4
P/N (SKU): 9RHV-030001-1000
Part Name: SIDE REFLECTOR BRACKET
Effective: 2022-11-15
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
-+
5
P/N (SKU): 0700-011002-00001
Part Name: BOLT M8x120
Effective: 2022-11-15
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 9RHV-030003-1000
Part Name: DAMPER SLEEVE 1
Effective: 2022-11-15
Remarks: null
Alternative parts: null
Specification: null
Price: 7,50 € : 7,50 €
-+
7
P/N (SKU): 9RHV-030070-1000
Part Name: ENGINE BRACKET
Effective: 2022-11-15
Remarks: null
Alternative parts: null
Specification: null
Price: 21,00 € : 21,00 €
-+
8
P/N (SKU): 30006-080020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-11-15
Remarks: null
Alternative parts: null
Specification: M8x20@COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
9
P/N (SKU): 30204-080810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2022-11-15
Remarks: null
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 9RHV-030407-1000
Part Name: STARTER RELAY BRACKET
Effective: 2022-11-15
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
-+
11
P/N (SKU): 30902-0401320
Part Name: MUSHROOM HEAD BREAK MANDREL BLIND RIVETS
Effective: 2022-11-15
Remarks: null
Alternative parts: null
Specification: φ4×13
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9RHV-030004-1000
Part Name: DAMPER SLEEVE II
Effective: 2022-11-15
Remarks: null
Alternative parts: 9RHV-030004-1200
Specification: null
Price: 3,50 € : 3,50 €
-+
