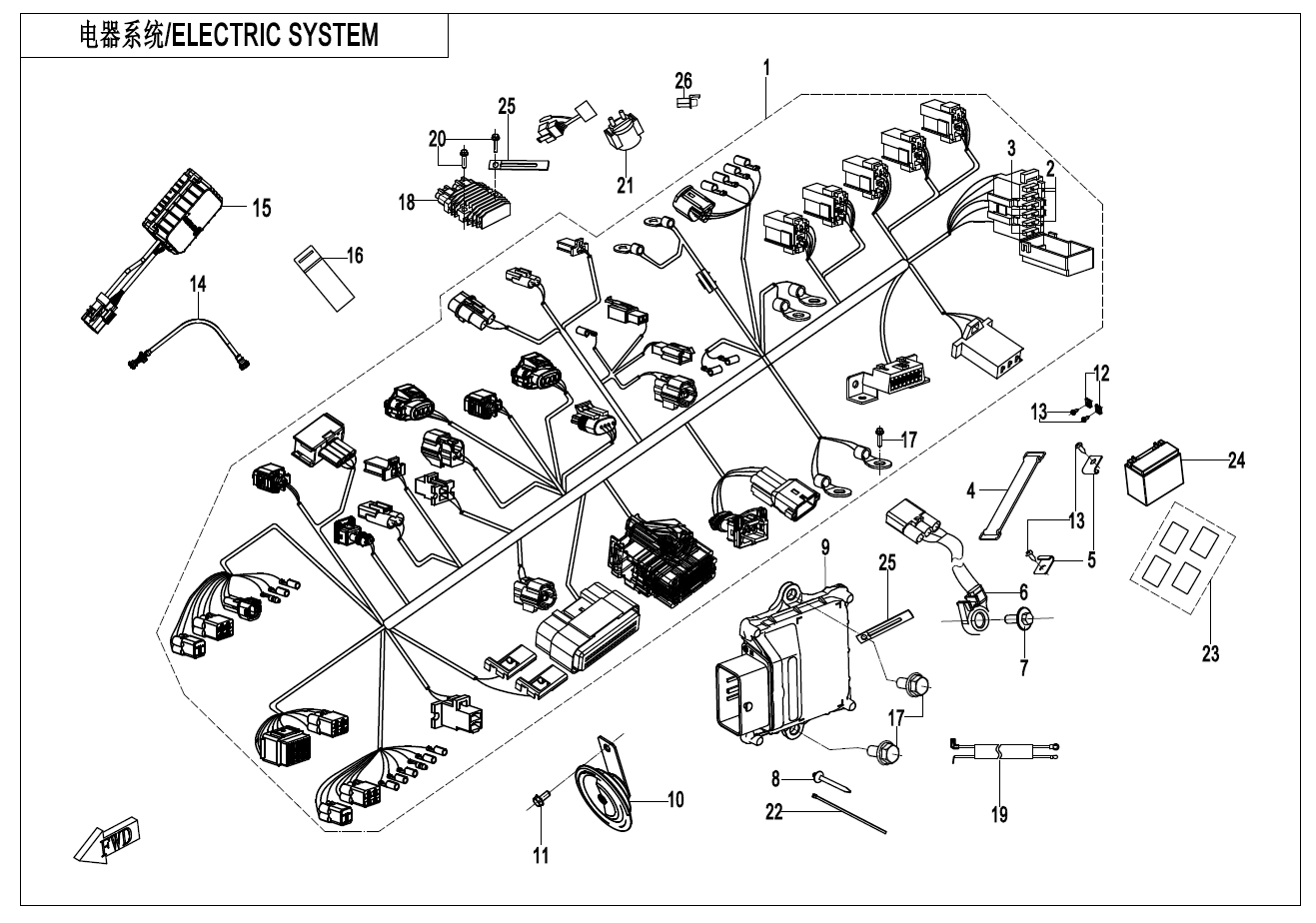

ELECTRIC SYSTEM - F15

ELECTRIC SYSTEM - F15

No.

01
P/N (SKU): 6KMV-150100-3300-10
Part Name: MAIN CABLE
Effective: 2023-07-14
Remarks: RUILI MAB
Alternative parts:
Price: 228,49 € : 228,49 €
-+
01
P/N (SKU): 6KMV-150100-3300
Part Name: MAIN CABLE
Effective: 2023-07-14
Remarks: DALU MAB
Alternative parts:
Price: 225,75 € : 225,75 €
-+
02
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2023-07-14
Alternative parts:
Specification: 10A
Price: 2,50 € : 2,50 €
-+
03
P/N (SKU): 806A-151303
Part Name: FUSE
Effective: 2023-07-14
Alternative parts: 806A-151305
Specification: 15A
Price: 4,00 € : 4,00 €
04
P/N (SKU): 1080-150700
Part Name: BATTERY TIE BAND
Effective: 2023-07-14
Alternative parts:
Price: 3,50 € : 3,50 €
-+
05
P/N (SKU): A000-030005
Part Name: VEHICLE TOOLS TIE BAND BRACKET
Effective: 2023-07-14
Alternative parts:
Price: 3,00 € : 3,00 €
-+
06
P/N (SKU): 6KMV-151500-3000
Part Name: SIDE STAND SWITCH
Effective: 2023-07-14
Alternative parts:
Price: 18,00 € : 18,00 €
-+
07
P/N (SKU): 6NQ#-000204-6001
Part Name: BOLT
Effective: 2023-07-14
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2023-07-14
Alternative parts:
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 6KNV-001000-7300
Part Name: ECM ASSY
Effective: 2023-07-14
Alternative parts:
Specification: MSE8.0
Price: 104,40 € : 104,40 €
-+
10
P/N (SKU): 6NT1-150600
Part Name: HORN
Effective: 2023-07-14
Alternative parts:
Price: 8,50 € : 8,50 €
-+
11
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2023-07-14
Alternative parts:
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 8080-000002
Part Name: CLAMP
Effective: 2023-07-14
Alternative parts:
Specification: ST4.8
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 30110-481130010
Part Name: SELF-TAPPING SCREW
Effective: 2023-07-14
Alternative parts: 30110-480130010
Specification: ST4.8x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 6KMV-176000-8400
Part Name: OXYGEN SENSOR
Effective: 2023-07-14
Alternative parts: 8AJV-004100-1000
Price: 71,00 € : 71,00 €
15
P/N (SKU): SN1V-691100-1501-11
Part Name: T-BOX
Effective: 2023-07-14
Remarks: TURKEY
Alternative parts:
Specification: Turkey
Price: 420,00 € : 420,00 €
-+
15
P/N (SKU): SN1V-691100-1601-11
Part Name: T-BOX
Effective: 2023-07-14
Remarks: BRAZIL
Alternative parts:
Specification: Brazil
Price: 420,00 € : 420,00 €
-+
15
P/N (SKU): SN1V-691100-1301-11
Part Name: T-BOX
Effective: 2023-07-14
Remarks: NA
Alternative parts:
Specification: North Amrica
Price: 420,00 € : 420,00 €
-+
15
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2023-07-14
Alternative parts:
Specification: @Eurasia and Africa and Australia except Turkey,BN,IN,BD,MN,NP
Price: 420,00 € : 420,00 €
-+
15
P/N (SKU): SN1V-691100-1401-11
Part Name: T-BOX
Effective: 2023-07-14
Remarks: SA
Alternative parts:
Specification: AllyTech@South America except for Brazil
Price: 420,00 € : 420,00 €
-+
16
P/N (SKU): 6KMV-150901-B001
Part Name: RUBBER RING, T-BOX
Effective: 2023-07-14
Alternative parts: 6KMV-150901-B002
Price: 2,00 € : 2,00 €
17
P/N (SKU): 30102-060012810
Part Name: SCREW
Effective: 2023-07-14
Alternative parts:
Specification: M6×12
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 6KMV-151000-3000
Part Name: REGULATOR
Effective: 2023-07-14
Alternative parts:
Price: 29,00 € : 29,00 €
-+
19
P/N (SKU): 6KMV-150200-3000
Part Name: STARTER MOTOR POSITIVE/NEGATIVE CABLE
Effective: 2023-07-14
Alternative parts:
Price: 20,00 € : 20,00 €
-+
20
P/N (SKU): 6WWV-046802-5000
Part Name: INNER HEX SCREW M6x16
Effective: 2023-07-14
Alternative parts:
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 6KJ0-150500
Part Name: RELAY, STARTER
Effective: 2023-07-14
Alternative parts:
Price: 14,00 € : 14,00 €
-+
22
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2023-07-14
Alternative parts:
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 9010-120008
Part Name: SPONGE PAD, FUEL TANK
Effective: 2023-07-14
Alternative parts:
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 31020902
Part Name: BATTERY
Effective: 2023-07-14
Alternative parts: 6KMV-151600-M000-M1
Price: 73,00 € : 73,00 €
25
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2023-07-14
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Effective: 2023-07-14
Alternative parts:
Price: 2,00 € : 2,00 €
-+
