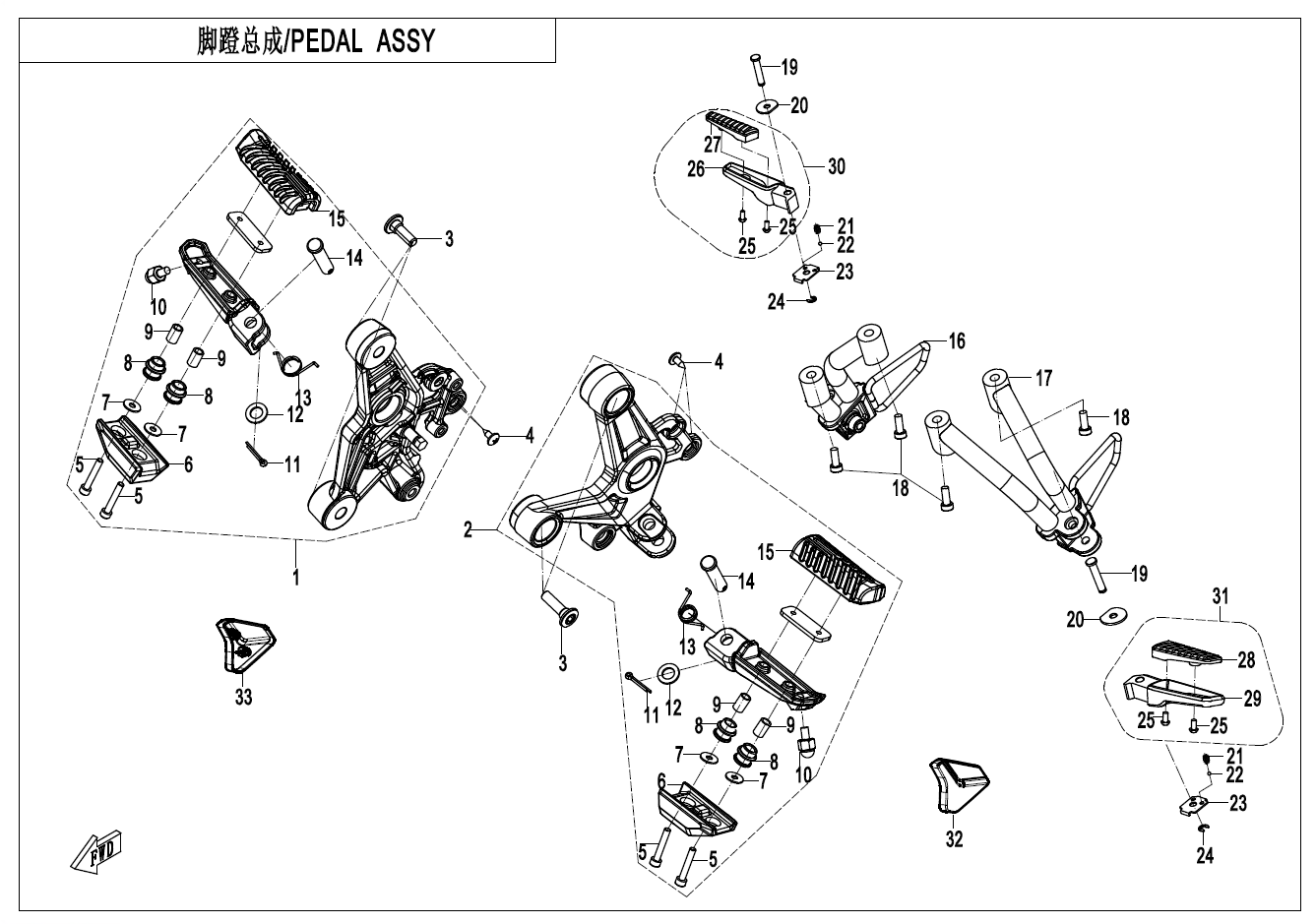

FOOTREST - F14

FOOTREST - F14

No.

1
P/N (SKU): 6KMV-144000-3000
Part Name: RH FRONT FOOTREST ASSY
Effective: 2023-07-14
Alternative parts: 6KMV-144000-3001
Price: 54,00 € : 54,00 €
2
P/N (SKU): 6KMV-143000-3000
Part Name: LH FRONT FOOTREST ASSY
Effective: 2023-07-14
Alternative parts: 6KMV-143000-3001
Price: 54,00 € : 54,00 €
3
P/N (SKU): 6KM0-140103
Part Name: BOLT
Effective: 2023-07-14
Alternative parts:
Specification: M8x25
Price: 2,00 € : 2,00 €
-+
4
P/N (SKU): 30110-481130010
Part Name: SELF-TAPPING SCREW
Effective: 2023-07-14
Alternative parts: 30110-480130010
Specification: ST4.8x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 30102-050030860
Part Name: SCREW
Effective: 2023-07-14
Alternative parts:
Specification: M5x30
Price: 2,00 € : 2,00 €
-+
6
P/N (SKU): 6KM#-140001-8001-0BP00
Part Name: BALANCE BLOCK, FOOTREST
Effective: 2023-07-14
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 11,00 € : 11,00 €
-+
7
P/N (SKU): 30305-050112
Part Name: WASHER
Effective: 2023-07-14
Alternative parts:
Specification: φ5
Price: 1,50 € : 1,50 €
-+
8
P/N (SKU): 6KN0-140002
Part Name: CUSHION RUBBER
Effective: 2023-07-14
Alternative parts: 6KMV-140001-3000
Price: 2,00 € : 2,00 €
9
P/N (SKU): 6NTG-200419
Part Name: BUSHING
Effective: 2023-07-14
Alternative parts:
Price: 3,00 € : 3,00 €
-+
10
P/N (SKU): 6KM0-130123
Part Name: BOLT
Effective: 2023-07-14
Alternative parts:
Price: 3,00 € : 3,00 €
-+
11
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2023-07-14
Alternative parts:
Specification: φ3.2x22@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 30300-100112
Part Name: WASHER
Effective: 2023-07-14
Alternative parts:
Specification: φ10
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): A000-140103-20000
Part Name: SPRING
Effective: 2023-07-14
Alternative parts:
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 6WWV-140141-5000
Part Name: PIN SHAFT
Effective: 2023-07-14
Alternative parts:
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 6KMV-140170-8100
Part Name: FOOTREST RUBBER
Effective: 2023-07-14
Alternative parts:
Price: 4,00 € : 4,00 €
-+
16
P/N (SKU): 6KMV-140040-3000-0BP00
Part Name: RH REAR FOOTREST BRACKET
Effective: 2023-07-14
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 41,00 € : 41,00 €
-+
17
P/N (SKU): 6KMV-140030-3000-0BP00
Part Name: LH REAR FOOTREST BRACKET
Effective: 2023-07-14
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 41,00 € : 41,00 €
-+
18
P/N (SKU): 30102-080025810
Part Name: SCREW
Effective: 2023-07-14
Alternative parts:
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): A000-140142
Part Name: PIN SHAFT 8
Effective: 2023-07-14
Alternative parts:
Specification: Dia 8
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): A000-140106
Part Name: LOCATING GASKET 2
Effective: 2023-07-14
Alternative parts:
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 5190-037813
Part Name: SPRING
Effective: 2023-07-14
Alternative parts:
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 5190-037814
Part Name: STEEL BALL
Effective: 2023-07-14
Alternative parts:
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): A000-140104
Part Name: LOCATING GASKET 1
Effective: 2023-07-14
Alternative parts: 6HVV-140006-1000
Price: 2,00 € : 2,00 €
-+
24
P/N (SKU): 30802-00603
Part Name: SPLIT WASHER 6
Effective: 2023-07-14
Alternative parts:
Specification: GB/T896_6
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 30105-050014470
Part Name: SCREW
Effective: 2023-07-14
Alternative parts:
Specification: M5×14
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 6KJV-140161-8000-0BP00
Part Name: REAR RH FOOTREST SEAT
Effective: 2023-07-14
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 18,00 € : 18,00 €
-+
27
P/N (SKU): 6KJ0-140142
Part Name: RH FOOTREST RUBBER ASSY
Effective: 2023-07-14
Alternative parts: 6KMV-140142-M100
Price: 8,50 € : 8,50 €
-+
28
P/N (SKU): 6KJ0-140132
Part Name: RUBBER, LH FOOT PEDAL
Effective: 2023-07-14
Alternative parts: 6KMV-140132-M100
Price: 6,50 € : 6,50 €
-+
29
P/N (SKU): 6KJV-140151-8000-0BP00
Part Name: REAR LH FOOTREST SEAT
Effective: 2023-07-14
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 19,00 € : 19,00 €
-+
30
P/N (SKU): 6KJV-140160-8000-0BP00
Part Name: REAR RH FOOTREST ASSY
Effective: 2023-07-14
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 24,00 € : 24,00 €
-+
31
P/N (SKU): 6KJV-140150-8000-0BP00
Part Name: REAR LH FOOTREST ASSY
Effective: 2023-07-14
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 24,00 € : 24,00 €
-+
32
P/N (SKU): 6KMV-041109-3000
Part Name: LH FOOTREST BRACKET DECO PLATE
Effective: 2023-07-14
Alternative parts:
Price: 3,50 € : 3,50 €
-+
33
P/N (SKU): 6KMV-041110-3000
Part Name: RH FOOTREST BRACKET DECO PLATE
Effective: 2023-07-14
Alternative parts:
Price: 3,50 € : 3,50 €
-+
