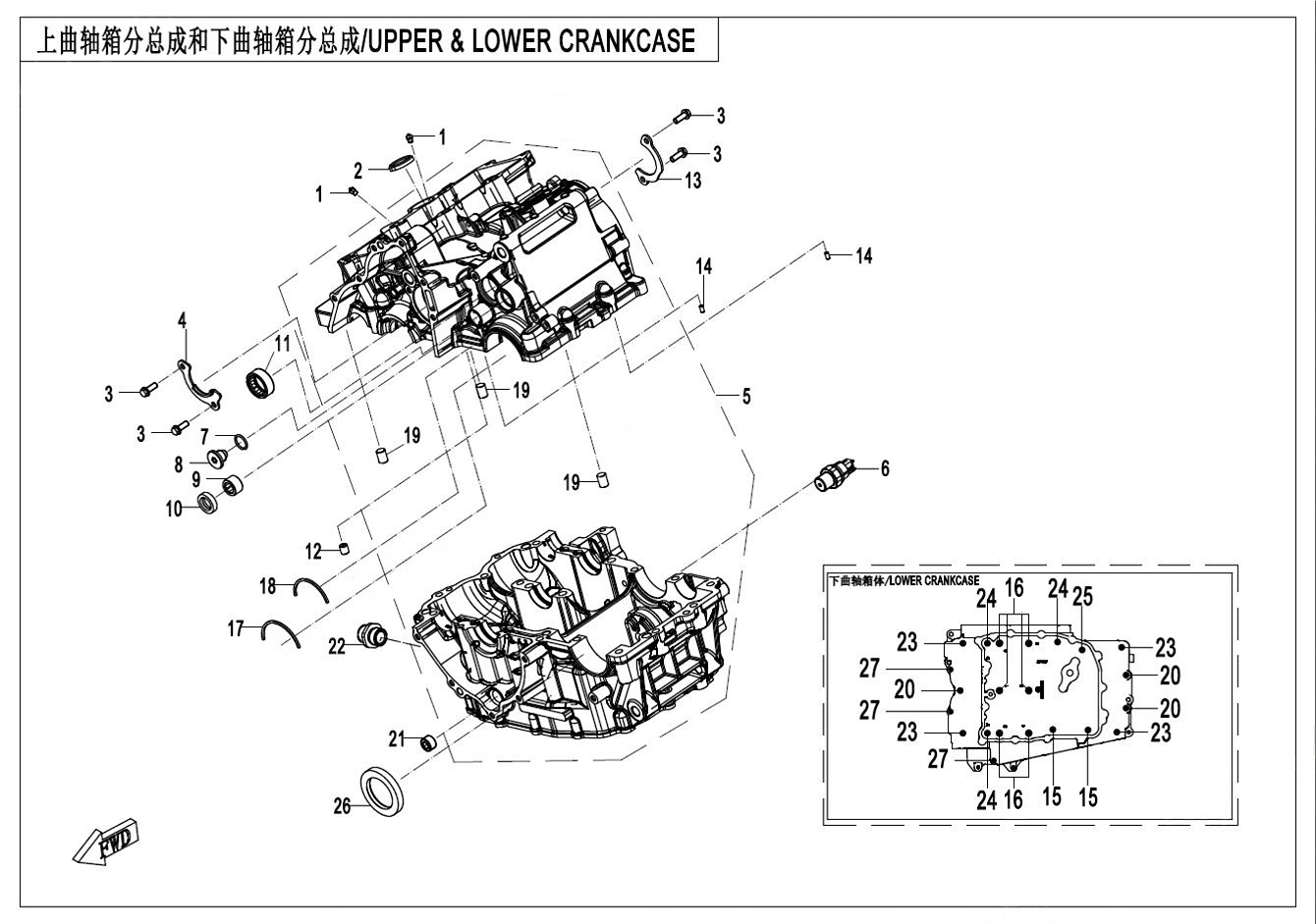

UPPER @^ LOWER CRANKCASE ASSY - E01-1

UPPER @^ LOWER CRANKCASE ASSY - E01-1

No.

01
P/N (SKU): 0SQV-011102-1000
Part Name: OIL NOZZLE
Effective: 2023-11-17
Alternative parts:
Specification: Dia 0.7
Price: 3,50 € : 3,50 €
-+
02
P/N (SKU): 0SQV-011104-1000
Part Name: SEAL RING, FILLER
Effective: 2023-11-17
Alternative parts:
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 0010-090005-0010
Part Name: BOLT M6x16
Effective: 2023-11-17
Alternative parts:
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 0SQV-011105-1000
Part Name: BEARING GUARD, LH
Effective: 2023-11-17
Alternative parts:
Price: 2,50 € : 2,50 €
-+
05
P/N (SKU): 0SQV-01FZ01-1003-0BP00
Part Name: CRANKCASE ASSY
Effective: 2023-11-18
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 478,00 € : 478,00 €
-+
06
P/N (SKU): 0SQV-012400-1000
Part Name: OIL PRESSURE SWITCH
Effective: 2023-11-17
Alternative parts:
Price: 13,00 € : 13,00 €
-+
07
P/N (SKU): 0SQV-011107-1000
Part Name: O-RING
Effective: 2023-11-17
Alternative parts:
Specification: 15x1.9
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 0SQV-011108-1000
Part Name: FORK SHAFT COVER
Effective: 2023-11-17
Alternative parts:
Price: 2,50 € : 2,50 €
-+
09
P/N (SKU): 30403-01400
Part Name: NEEDLE BEARING
Effective: 2023-11-17
Alternative parts:
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 1F30-011600
Part Name: OIL SEAL
Effective: 2023-11-17
Alternative parts: 1F30-011600-10000
Specification: 14×24×6
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 1F30-011600-10000
Part Name: OIL SEAL
Effective: 2024-07-15
Alternative parts:
Specification: 14×24×6
Price: 2,00 € : 2,00 €
-+
11
P/N (SKU): 30403-02500
Part Name: NEEDLE BEARING
Effective: 2023-11-17
Alternative parts:
Price: 4,00 € : 4,00 €
-+
12
P/N (SKU): 0SQV-011103-1000
Part Name: RESTRICTION PLUG
Effective: 2023-11-17
Alternative parts:
Price: 3,00 € : 3,00 €
-+
13
P/N (SKU): 0SQV-011106-1000
Part Name: BEARING GUARD, RH
Effective: 2023-11-17
Alternative parts:
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): 30406-00401
Part Name: ROLLER NEEDLE P4x7.8
Effective: 2023-11-17
Alternative parts:
Specification: P4x7.8
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 0SQV-012700-1000
Part Name: BOLT ASSY
Effective: 2023-11-17
Alternative parts: 0SQV-012700-1001
Specification: M8x45
Price: 3,00 € : 3,00 €
16
P/N (SKU): 0SQV-012200-1000
Part Name: BOLT ASSY
Effective: 2023-11-17
Alternative parts: 0SQV-012200-1001
Specification: M9x108
Price: 2,50 € : 2,50 €
17
P/N (SKU): 0SQV-011004-1000
Part Name: RETAINER, BEARING
Effective: 2023-11-17
Alternative parts:
Price: 2,00 € : 2,00 €
-+
18
P/N (SKU): 0SQV-011003-1000
Part Name: RETAINER, BEARING
Effective: 2023-11-17
Alternative parts:
Price: 2,00 € : 2,00 €
-+
19
P/N (SKU): 30410-01000
Part Name: ROLLER 10x14
Effective: 2023-11-17
Alternative parts:
Specification: 10X14
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): 0SQV-012003-1000
Part Name: BOLT M8x45
Effective: 2023-11-17
Alternative parts:
Specification: M8x45
Price: 2,00 € : 2,00 €
-+
21
P/N (SKU): 0700-012105-00001
Part Name: PLUG, MAIN OIL RAIL
Effective: 2023-11-17
Alternative parts:
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 0700-012106-00002
Part Name: OIL FILTER BOLT
Effective: 2023-11-17
Alternative parts:
Price: 3,00 € : 3,00 €
-+
23
P/N (SKU): 0SQV-012002-1000
Part Name: BOLT
Effective: 2023-11-17
Alternative parts:
Specification: M8x65
Price: 2,00 € : 2,00 €
-+
24
P/N (SKU): 0SQV-012500-1000
Part Name: BOLT ASSY
Effective: 2023-11-17
Alternative parts: 0SQV-012500-1001
Specification: M8x105
Price: 2,50 € : 2,50 €
25
P/N (SKU): 0SQV-012600-1000
Part Name: BOLT ASSY
Effective: 2023-11-17
Alternative parts: 0SQV-012600-1001
Specification: M8x55
Price: 3,00 € : 3,00 €
26
P/N (SKU): 0SQV-010001-1000
Part Name: COUNTERSHAFT OIL SEAL
Effective: 2023-11-17
Alternative parts: 0SQV-010001-1001
Specification: 40x58x8
Price: 8,00 € : 8,00 €
-+
26
P/N (SKU): 0SQV-010001-1001
Part Name: COUNTERSHAFT OIL SEAL 40x58x8
Effective: 2024-01-22
Alternative parts: 0SQV-010001-1000-M1
Price: 8,00 € : 8,00 €
-+
26
P/N (SKU): 0SQV-010001-1000-M1
Part Name: COUNTERSHAFT OIL SEAL
Effective: 2025-03-04
Alternative parts:
Specification: 40x58x8
Price: 7,50 € : 7,50 €
-+
27
P/N (SKU): 0010-060012-0010
Part Name: BOLT M6x30
Effective: 2023-11-17
Alternative parts:
Specification: M6x30
Price: 1,50 € : 1,50 €
-+
