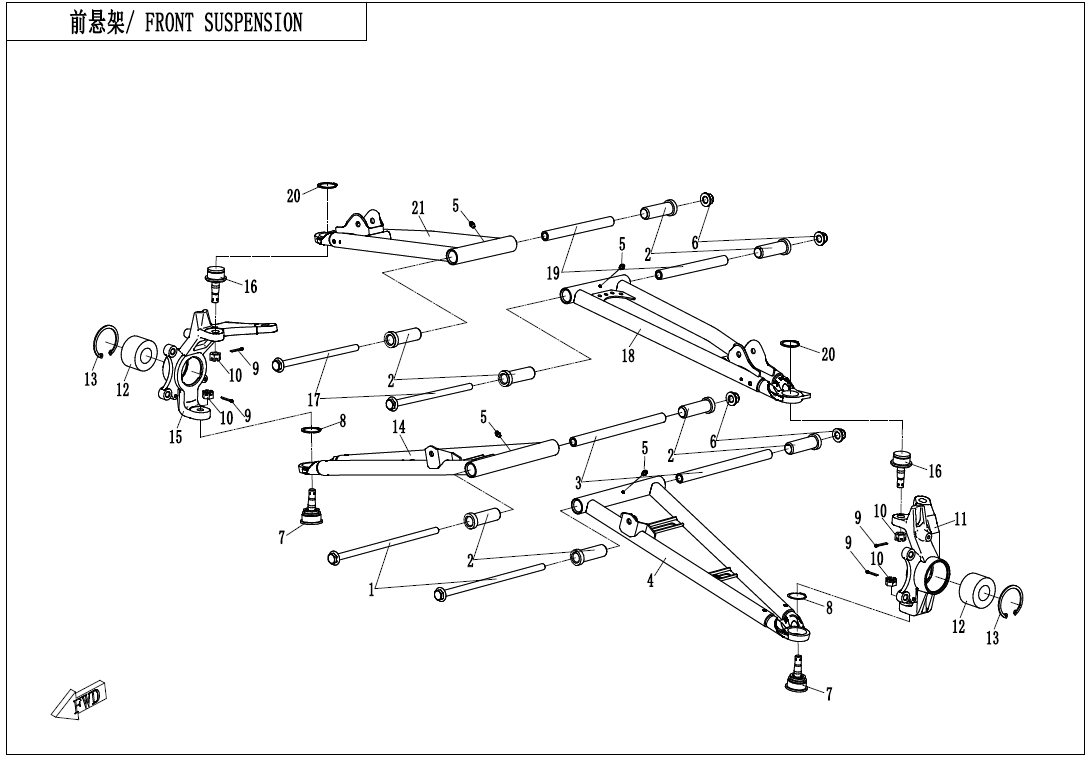

FRONT SUSPENSION - F05-1 | 2024, SSV, CF1000UTR-C

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): 5BY0-050203

Part Name: MOUNTING SHAFT, FRONT LOWER SWING ARM

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Price: 10,00 € : 10,00 €

P/N (SKU): 5BY0-050102

Part Name: DAMPING SLEEVE, FRONT UPPER SWING ARM

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Price: 3,00 € : 3,00 €

P/N (SKU): 5BY0-050201

Part Name: MIDDLE SPACER, FRONT LOWER SWING ARM

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Price: 12,00 € : 12,00 €

P/N (SKU): 5BYV-050210-A100-0BP00

Part Name: FRONT LH LOWER SWING ARM ASSY

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Specification: MAUD SPIRIT BLACK

Price: 69,00 € : 69,00 €

P/N (SKU): 3120100

Part Name: OIL CUP

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Price: 1,50 € : 1,50 €

P/N (SKU): 30204-122810

Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Specification: M12Ã1.25

Price: 1,50 € : 1,50 €

P/N (SKU): 9060-050900-10000

Part Name: BALL PIN ASSY

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Specification: CCVI

Price: 23,00 € : 23,00 €

P/N (SKU): 30801-03405

Part Name: CIRCLIPS FOR SHAFT

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Specification: 34

Price: 1,50 € : 1,50 €

P/N (SKU): 30903-0322210

Part Name: SPLIT PINS

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Specification: Ï3.2x22@COLOR ZINC TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

P/N (SKU): 30219-122810

Part Name: HEXAGON THIN SLOTTED NUTS

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Specification: M12x1.25@COLOR ZINC TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

P/N (SKU): 5BYV-050701-A100

Part Name: LH STEERING KNUCKLE

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Specification: null

Price: 86,00 € : 86,00 €

P/N (SKU): 30411-03080

Part Name: HUB BEARING

Effective: 2023-05-05

Remarks: null

Alternative parts: 30411-03081

Price: 43,00 € : 43,00 €

P/N (SKU): 30411-03081

Part Name: HUB BEARING

Effective: 2023-07-21

Alternative parts: null

Specification: 30Ã60Ã37

Price: 37,00 € : 37,00 €

P/N (SKU): 30800-06005

Part Name: CIRCLIPS FOR HOLES

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Specification: 60

Price: 2,00 € : 2,00 €

P/N (SKU): 5BYV-050410-A100-0BP00

Part Name: FRONT RH LOWER SWING ARM ASSY

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Specification: MAUD SPIRIT BLACK

Price: 69,00 € : 69,00 €

P/N (SKU): 5BYV-050801-A100

Part Name: RH STEERING KNUCKLE

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Specification: null

Price: 86,00 € : 86,00 €

P/N (SKU): 9030-050600-10000

Part Name: MAIN PIN ASSY

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Specification: CCVI

Price: 22,00 € : 22,00 €

P/N (SKU): 5BY0-050103

Part Name: MOUNTING SHAFT, FRONT UPPER SWING ARM

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Price: 7,50 € : 7,50 €

P/N (SKU): 5BYV-050110-A100-0BP00

Part Name: FRONT LH UPPER SWING ARM ASSY

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Specification: MAUD SPIRIT BLACK

Price: 69,00 € : 69,00 €

P/N (SKU): 5BY0-050101

Part Name: MIDDLE SPACER, FRONT UPPER SWING ARM

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Price: 11,00 € : 11,00 €

P/N (SKU): 30801-03205

Part Name: CIRCLIPS FOR SHAFT

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Specification: 32 A-TYPE

Price: 1,50 € : 1,50 €

P/N (SKU): 5BYV-050310-A100-0BP00

Part Name: FRONT RH UPPER SWING ARM ASSY

Effective: 2023-05-05

Remarks: null

Alternative parts: null

Specification: MAUD SPIRIT BLACK

Price: 77,00 € : 77,00 €
