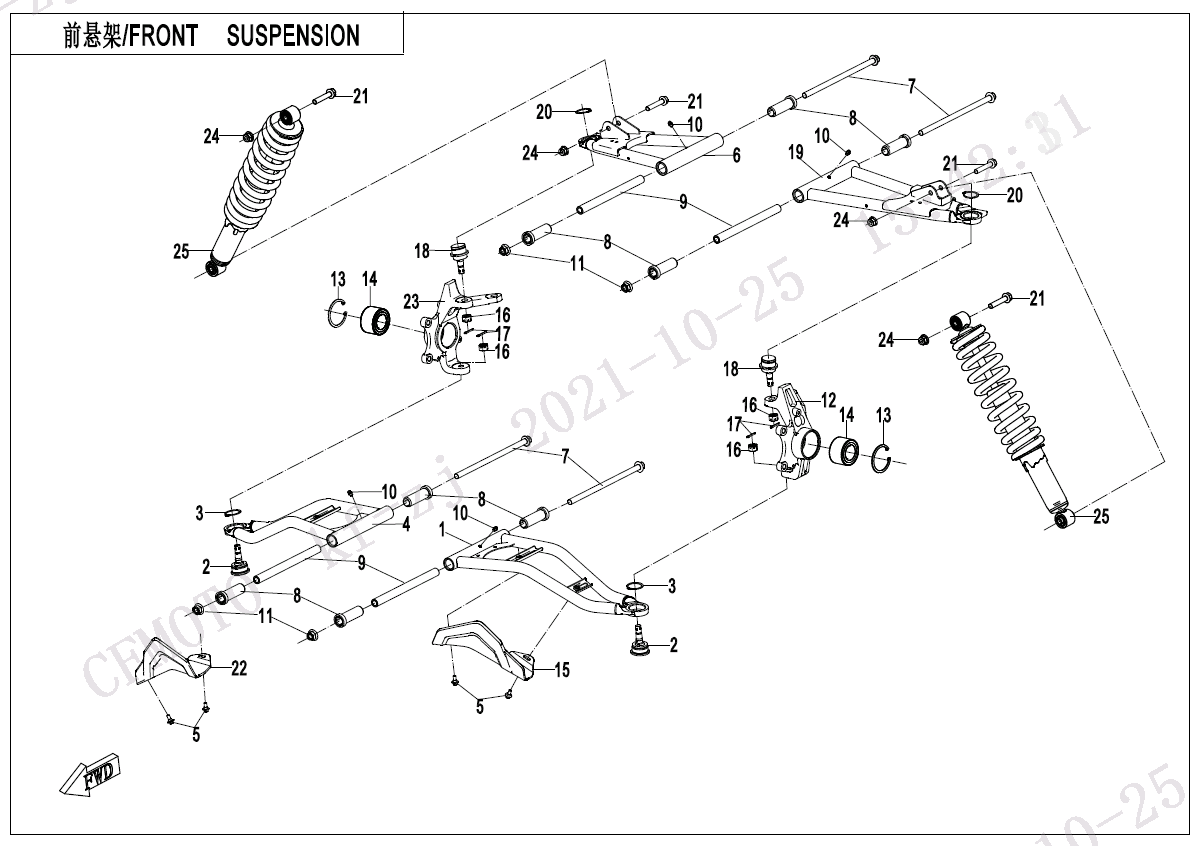

FRONT SUSPENSION - F05

FRONT SUSPENSION - F05

No.

01
P/N (SKU): 5SYV-050210-6001-0BP00
Part Name: FRONT LH LOWER SWING ARM ASSY
Effective: 2023-06-20
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 67,00 € : 67,00 €
02
P/N (SKU): 9060-050900-10000
Part Name: BALL PIN ASSY
Effective: 2023-06-20
Remarks: CCVI
Alternative parts: null
Specification: CCVI
Price: 23,00 € : 23,00 €
-+
03
P/N (SKU): 30801-03405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Specification: 34
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 5SYV-050410-6001-0BP00
Part Name: FRONT RH LOWER SWING ARM ASSY
Effective: 2023-06-20
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 67,00 € : 67,00 €
05
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 5SYV-050310-6001-0BP00
Part Name: FRONT RH UPPER SWING ARM ASSY
Effective: 2023-06-20
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 76,00 € : 76,00 €
07
P/N (SKU): 5SYV-050103-6000
Part Name: SWING ARM SHAFT
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Specification: null
Price: 10,00 € : 10,00 €
-+
08
P/N (SKU): 5BY0-050102
Part Name: DAMPING SLEEVE, FRONT UPPER SWING ARM
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
09
P/N (SKU): 5SYV-050101-6000
Part Name: MIDDLE SPACER, SWING ARM
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
-+
10
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
11
P/N (SKU): 30204-122910
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Specification: M12x1.25@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
12
P/N (SKU): 5SYV-050701-6000
Part Name: LH STEERING KNUCKLE
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Specification: null
Price: 85,00 € : 85,00 €
13
P/N (SKU): 30800-06005
Part Name: CIRCLIPS FOR HOLES
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Specification: 60
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): 30411-03080
Part Name: HUB BEARING
Effective: 2023-06-20
Alternative parts: 30411-03081
Price: 43,00 € : 43,00 €
14
P/N (SKU): 30411-03081
Part Name: HUB BEARING
Effective: 2023-07-21
Remarks: null
Alternative parts: null
Specification: 30×60×37
Price: 37,00 € : 37,00 €
-+
15
P/N (SKU): 5ASV-050201-6000
Part Name: GUARD, FRONT LH SWING ARM
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Price: 8,00 € : 8,00 €
-+
16
P/N (SKU): 30219-122810
Part Name: HEXAGON THIN SLOTTED NUTS
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Specification: M12x1.25@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 30903-0322210
Part Name: SPLIT PINS
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Specification: φ3.2x22@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 9030-050600-10000
Part Name: MAIN PIN ASSY
Effective: 2023-06-20
Remarks: CCVI
Alternative parts: null
Specification: CCVI
Price: 22,00 € : 22,00 €
-+
19
P/N (SKU): 5SYV-050110-6001-0BP00
Part Name: FRONT LH UPPER SWING ARM ASSY
Effective: 2023-06-20
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 76,00 € : 76,00 €
20
P/N (SKU): 30801-03205
Part Name: CIRCLIPS FOR SHAFT
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Specification: 32 A-TYPE
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 30006-102055110
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Specification: COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 5ASV-050401-6000
Part Name: GUARD, FRONT RH SWING ARM
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Price: 8,00 € : 8,00 €
-+
23
P/N (SKU): 5SYV-050801-6000
Part Name: RH STEERING KNUCKLE
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Specification: null
Price: 85,00 € : 85,00 €
24
P/N (SKU): 30204-102810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 5SYV-050500-6001
Part Name: FRONT SHOCK ABSORBER
Effective: 2023-06-20
Remarks: null
Alternative parts: null
Specification: null
Price: 159,00 € : 159,00 €
