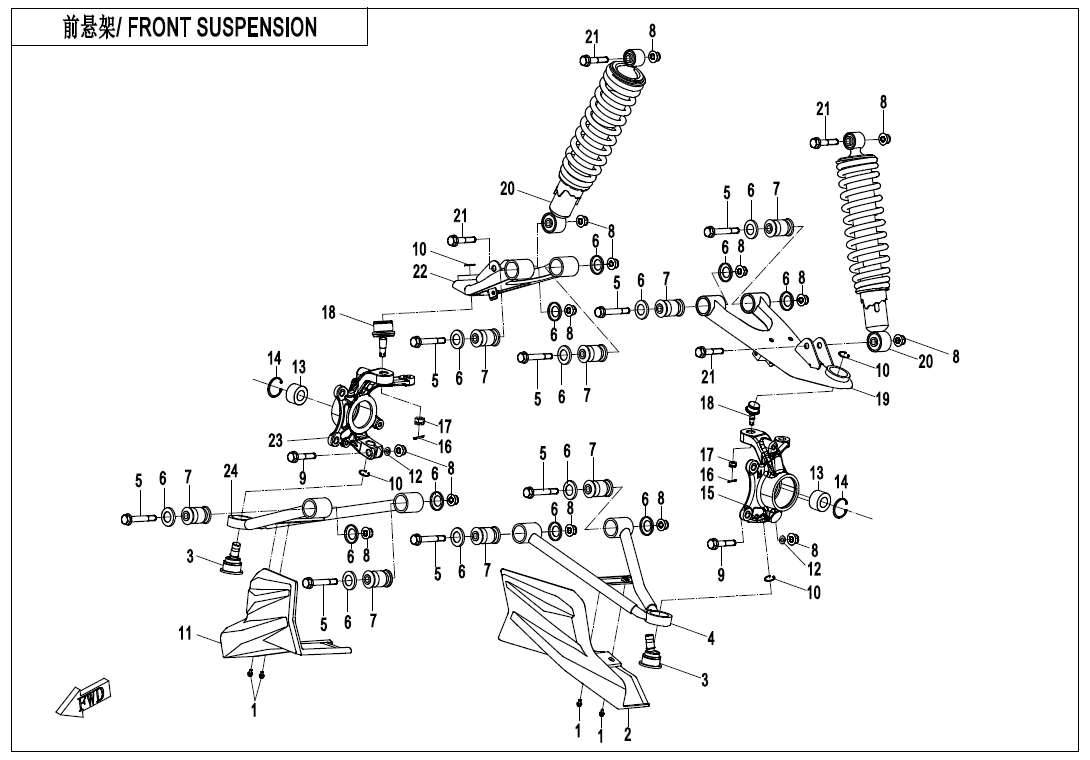

FRONT SUSPENSION - F05

FRONT SUSPENSION - F05

No.

01
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2024-08-15
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
02
P/N (SKU): 9GQV-044041-1000
Part Name: PANEL, LH FRONT SUSPENSION
Effective: 2024-08-15
Alternative parts:
Price: 8,50 € : 8,50 €
-+
03
P/N (SKU): 9010-050800-20000
Part Name: LOWER BALL PIN ASSY.
Effective: 2024-08-15
Alternative parts:
Price: 34,00 € : 34,00 €
-+
04
P/N (SKU): 9GQ0-050210-0BP00
Part Name: FRONT LH LOWER SWING ARM ASSY
Effective: 2024-08-15
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 40,00 € : 40,00 €
-+
05
P/N (SKU): 30006-102070810
Part Name: BOLT
Effective: 2024-08-15
Alternative parts:
Specification: M10x1.25x70@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 9010-050003
Part Name: CUSHION SLEEVE CAP
Effective: 2024-08-15
Alternative parts: 9DSV-050900-6K00
Price: 2,00 € : 2,00 €
07
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2024-08-15
Alternative parts: 5HYV-020030-1600
Price: 4,00 € : 4,00 €
-+
08
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2024-08-15
Alternative parts:
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 30006-102045810
Part Name: BOLT
Effective: 2024-08-15
Alternative parts: F03V-100001-1000
Specification: M10×1.25×45
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 30801-03405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2024-08-15
Alternative parts:
Specification: 34
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 9GQV-044042-1000
Part Name: FRONT RH SUSPENSION PANEL
Effective: 2024-08-15
Alternative parts:
Price: 8,50 € : 8,50 €
-+
12
P/N (SKU): 9010-300002
Part Name: WASHER Dia 10
Effective: 2024-08-15
Alternative parts:
Specification: Dia 10
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 9GQ0-050710
Part Name: BEARING, HUB
Effective: 2024-08-15
Alternative parts:
Price: 32,00 € : 32,00 €
-+
14
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE
Effective: 2024-08-15
Alternative parts:
Specification: BLACK
Price: 2,50 € : 2,50 €
-+
15
P/N (SKU): 9GQA-050701-10000
Part Name: LH STEERING KNUCKLE
Effective: 2024-08-15
Alternative parts:
Price: 84,00 € : 84,00 €
-+
16
P/N (SKU): 30903-0201610
Part Name: COTTER PIN
Effective: 2024-08-15
Alternative parts:
Specification: φ2×16
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 30207-102810
Part Name: NUT M10x1.25
Effective: 2024-08-15
Alternative parts: 9010-100002
Specification: M10x1.25
Price: 3,00 € : 3,00 €
18
P/N (SKU): 9DQV-056100-3000
Part Name: UPPER BALL PIN ASSY
Effective: 2024-08-15
Alternative parts:
Price: 14,70 € : 14,70 €
-+
19
P/N (SKU): 9GQ0-050110-1BP00
Part Name: FRONT LH UPPER SWING ARM ASSY
Effective: 2024-08-15
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 43,00 € : 43,00 €
-+
20
P/N (SKU): 9GQ0-050500
Part Name: FRONT SHOCK ABSORBER ASSY
Effective: 2024-08-15
Alternative parts:
Price: 73,00 € : 73,00 €
-+
21
P/N (SKU): 30006-102055810
Part Name: BOLT
Effective: 2024-08-15
Alternative parts:
Specification: M10×1.25×55
Price: 2,00 € : 2,00 €
-+
22
P/N (SKU): 9GQ0-050310-1BP00
Part Name: FRONT RH UPPER SWING ARM ASSY
Effective: 2024-08-15
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 43,00 € : 43,00 €
-+
23
P/N (SKU): 9GQA-050801-10000
Part Name: RH STEERING KNUCKLE
Effective: 2024-08-15
Alternative parts:
Price: 84,00 € : 84,00 €
-+
24
P/N (SKU): 9GQ0-050410-0BP00
Part Name: FRONT RH LOWER SWING ARM ASSY
Effective: 2024-08-15
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 40,00 € : 40,00 €
-+
