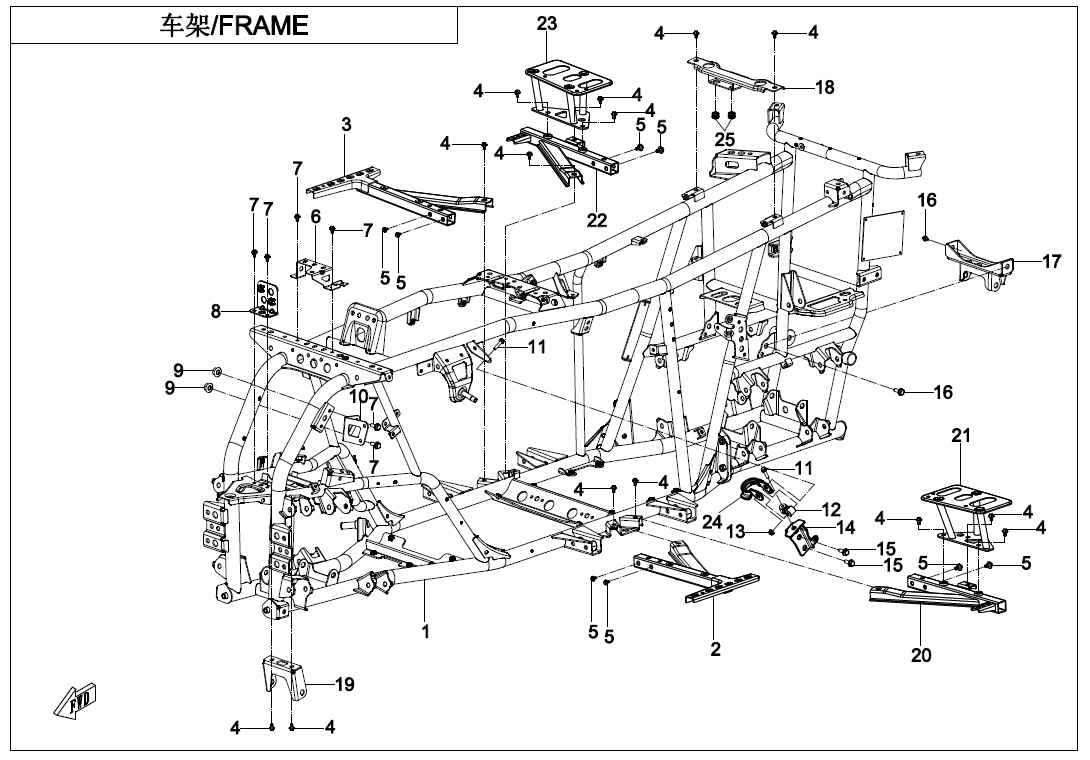

FRAME - F03-V2 | 2025, ATV, CF500AU-9L | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 9CQV-031000-3005-01

Part Name: FRAME ASSY

Effective: 2024-07-05

Alternative parts:

Price: 516,00 € : 516,00 €

02

P/N (SKU): 9DQV-030300-3000

Part Name: LH FRONT FOOT PEDAL ASSY

Effective: 2024-07-05

Alternative parts:

Price: 32,00 € : 32,00 €

03

P/N (SKU): 9DQV-030400-3000

Part Name: FRONT RH FOOT PEDAL ASSY

Effective: 2024-07-05

Alternative parts:

Price: 32,00 € : 32,00 €

04

P/N (SKU): 30006-080016810

Part Name: BOLT

Effective: 2024-07-05

Alternative parts:

Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

05

P/N (SKU): 30006-080045810

Part Name: BOLT

Effective: 2024-07-05

Alternative parts:

Specification: M8x45@COLOR ZINC TRIVALENT CHROMIUM

Price: 2,00 € : 2,00 €

06

P/N (SKU): 9DQV-030003-3000

Part Name: BRACKET, CVT AIR INLET PIPE

Effective: 2024-07-05

Alternative parts:

Price: 3,50 € : 3,50 €

07

P/N (SKU): 30006-060012810

Part Name: BOLT

Effective: 2024-07-05

Alternative parts: 30006-060012870

Specification: M6Ã12

Price: 1,50 € : 1,50 €

08

P/N (SKU): 9DQV-030030-3000

Part Name: BRACKET, BRAKE VALVE

Effective: 2024-07-05

Alternative parts:

Price: 3,50 € : 3,50 €

09

P/N (SKU): 30204-060810

Part Name: NUT

Effective: 2024-07-05

Alternative parts:

Specification: M6

Price: 1,50 € : 1,50 €

10

P/N (SKU): 9DQV-030001-3000

Part Name: CANISTER BRACKET

Effective: 2024-07-05

Alternative parts:

Price: 3,50 € : 3,50 €

11

P/N (SKU): 30006-080040810

Part Name: BOLT

Effective: 2024-07-05

Alternative parts:

Specification: M8Ã40

Price: 2,00 € : 2,00 €

12

P/N (SKU): 7020-000160

Part Name: CONNECTING PARTS, ENGINE UPPER BRACKET

Effective: 2024-07-05

Alternative parts:

Price: 12,00 € : 12,00 €

13

P/N (SKU): 30204-080810

Part Name: LOCK NUT

Effective: 2024-07-05

Alternative parts:

Specification: M8

Price: 1,50 € : 1,50 €

14

P/N (SKU): 9DRV-030040-B001

Part Name: UPPER BRACKET, ENGINE

Effective: 2024-07-05

Alternative parts:

Price: 4,00 € : 4,00 €

15

P/N (SKU): 30006-103020810

Part Name: BOLT M10x20

Effective: 2024-07-05

Alternative parts:

Specification: M10x20

Price: 2,00 € : 2,00 €

16

P/N (SKU): 30102-102020810

Part Name: SCREW

Effective: 2024-07-05

Alternative parts:

Specification: M10x1.25x20@COLOR ZINC-PLATED

Price: 2,50 € : 2,50 €

17

P/N (SKU): 9DQV-030090-3000

Part Name: UPPER BRACKET, REAR GEAR CASE

Effective: 2024-07-05

Alternative parts:

Price: 16,00 € : 16,00 €

18

P/N (SKU): 9DQV-030120-3000

Part Name: BRACKET, SEAT

Effective: 2024-07-05

Alternative parts:

Price: 11,00 € : 11,00 €

19

P/N (SKU): 9DQV-030010-3000

Part Name: UPPER BRACKET, FRONT GEAR CASE

Effective: 2024-07-05

Alternative parts:

Price: 6,50 € : 6,50 €

20

P/N (SKU): 9CQV-030100-3000

Part Name: LH REAR LOWER FOOTREST ASSY

Effective: 2024-07-05

Alternative parts:

Price: 31,00 € : 31,00 €

21

P/N (SKU): 9CQV-030300-3000

Part Name: LH REAR UPPER FOOTREST ASSY

Effective: 2024-07-05

Alternative parts:

Specification: ELECTROPHORESIS BLACK

Price: 23,00 € : 23,00 €

22

P/N (SKU): 9CQV-030200-3000

Part Name: RH REAR LOWER FOOTREST ASSY

Effective: 2024-07-05

Alternative parts:

Price: 30,00 € : 30,00 €

23

P/N (SKU): 9CQV-030400-3000

Part Name: RH REAR UPPER FOOTREST ASSY

Effective: 2024-07-05

Alternative parts:

Specification: ELECTROPHORESIS BLACK

Price: 23,00 € : 23,00 €

24

P/N (SKU): 9DSV-030060-6000

Part Name: UPPER LIMIT BRACKET ASSY, ENGINE

Effective: 2024-07-05

Alternative parts:

Price: 9,00 € : 9,00 €
