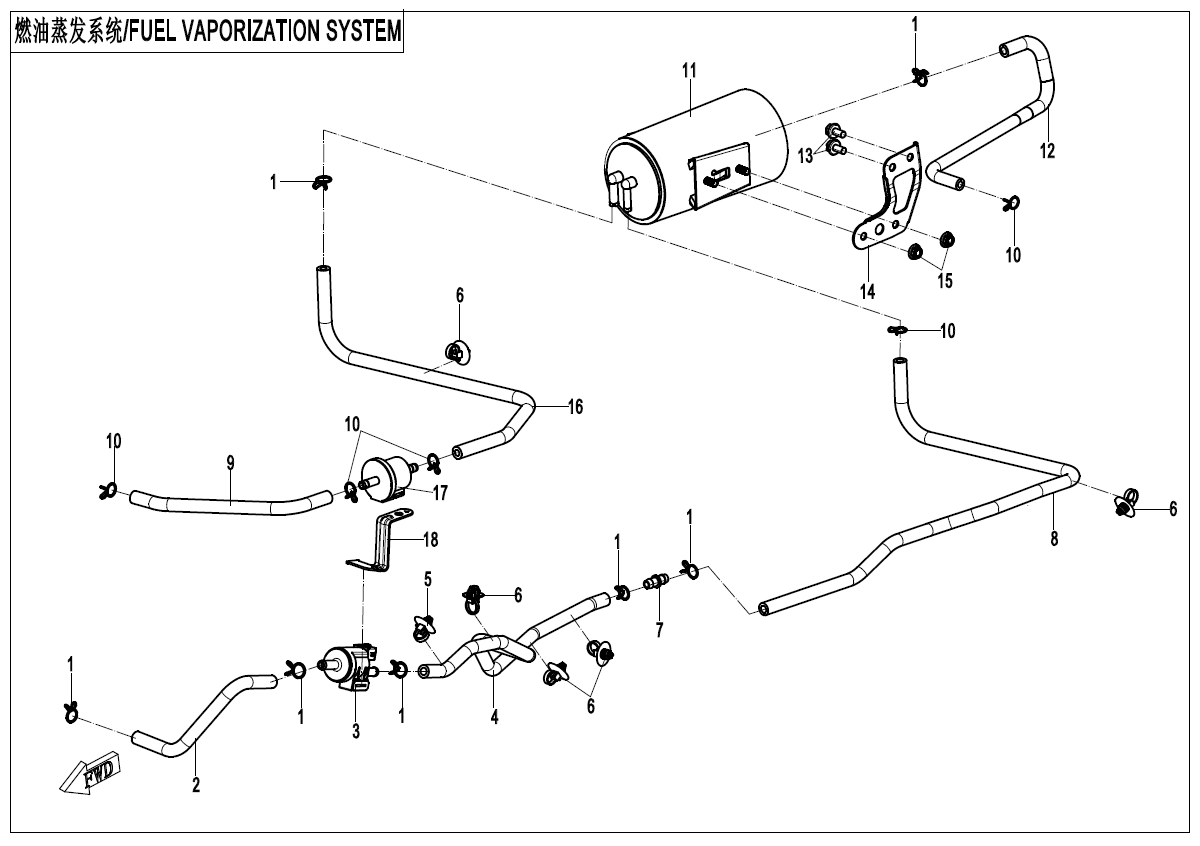

FUEL VAPORIZATION SYSTEM - F36-V1

FUEL VAPORIZATION SYSTEM - F36-V1

No.

1
P/N (SKU): 30601-112010
Part Name: CLAMP
Effective: 2024-10-12
Remarks: null
Alternative parts: null
Specification: A12@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
2
P/N (SKU): 9AWV-360008-8000
Part Name: FUEL VAPOR DESORPTION HOSE 3
Effective: 2024-10-12
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
3
P/N (SKU): 1F3V-172000-1000
Part Name: CANISTER MAGNETIC VALVE
Effective: 2024-10-12
Remarks: null
Alternative parts: null
Specification: null
Price: 37,00 € : 37,00 €
-+
4
P/N (SKU): 9AWV-360004-8000
Part Name: FUEL VAPOR DESORPTION HOSE 2
Effective: 2024-10-12
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
5
P/N (SKU): CFCV-BBC001-2000-M1
Part Name: TIE BAND
Effective: 2024-10-12
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
6
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2024-10-12
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 9AWV-360006-8000
Part Name: TWO WAY JOINT
Effective: 2024-10-12
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
8
P/N (SKU): 9AWV-360003-8000
Part Name: FUEL VAPOR DESORPTION HOSE 1
Effective: 2024-10-12
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
9
P/N (SKU): 9AWV-360001-8000
Part Name: FUEL VAPOR ADSORPTION HOSE 1
Effective: 2024-10-12
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
10
P/N (SKU): 30601-111010
Part Name: CLAMP
Effective: 2024-10-12
Remarks: null
Alternative parts: null
Specification: A11@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 9AWA-360200
Part Name: CANISTER
Effective: 2024-10-12
Remarks: null
Alternative parts: null
Price: 50,00 € : 50,00 €
12
P/N (SKU): 9AWV-360005-8000
Part Name: BREATHER HOSE, CANISTER
Effective: 2024-10-12
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
13
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2024-10-12
Remarks: null
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
14
P/N (SKU): 9AWV-360007-8000
Part Name: CANISTER BRACKET
Effective: 2024-10-12
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
15
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2024-10-12
Remarks: null
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 9AWV-360002-8000
Part Name: FUEL VAPOR ADSORPTION HOSE 2
Effective: 2024-10-12
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
17
P/N (SKU): 9GQ0-360100
Part Name: TWO-WAY VALVE
Effective: 2024-10-12
Remarks: null
Alternative parts: null
Price: 14,00 € : 14,00 €
-+
18
P/N (SKU): 9AWV-030008-8000
Part Name: SOLENOID VALVE BRACKET
Effective: 2024-10-12
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
