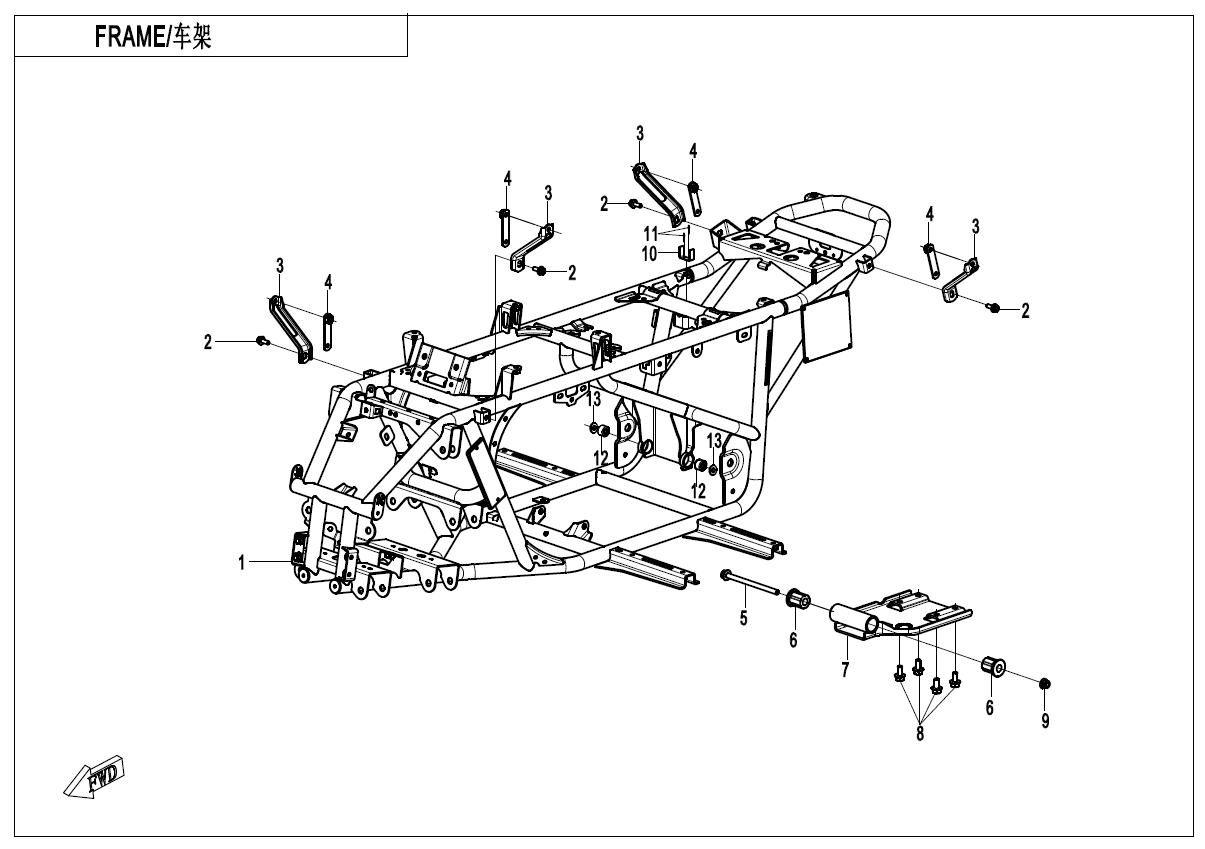

FRAME - F03-V3

FRAME - F03-V3

No.

1
P/N (SKU): 9RHV-031000-3301
Part Name: FRAME ASSY
Effective: 2024-10-17
Alternative parts:
Price: 179,00 € : 179,00 €
-+
1
P/N (SKU): 9RHV-031000-3201
Part Name: FRAME ASSY
Effective: 2024-10-17
Remarks: NA
Alternative parts:
Price: 179,00 € : 179,00 €
-+
2
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2024-10-17
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
3
P/N (SKU): 9RHV-030010-1001
Part Name: FENDER BRACKET ASSY
Effective: 2024-10-17
Alternative parts:
Price: 2,50 € : 2,50 €
-+
3
P/N (SKU): 9RHV-030002-1001
Part Name: FENDER BRACKET
Effective: 2024-10-17
Remarks: NA
Alternative parts:
Price: 2,50 € : 2,50 €
-+
4
P/N (SKU): 9RHV-030001-1000
Part Name: SIDE REFLECTOR BRACKET
Effective: 2024-10-17
Alternative parts:
Price: 2,00 € : 2,00 €
-+
5
P/N (SKU): 0700-011002-00001
Part Name: BOLT M8x120
Effective: 2024-10-17
Alternative parts:
Specification: M8x120
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 9RHV-030003-1000
Part Name: DAMPER SLEEVE 1
Effective: 2024-10-17
Alternative parts:
Price: 7,50 € : 7,50 €
-+
7
P/N (SKU): 9RHV-030070-1000
Part Name: ENGINE BRACKET
Effective: 2024-10-17
Alternative parts:
Price: 21,00 € : 21,00 €
-+
8
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2024-10-17
Alternative parts: 30006-080016810
Specification: M8×20
Price: 1,50 € : 1,50 €
-+
9
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2024-10-17
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 9RHV-030407-1000
Part Name: STARTER RELAY BRACKET
Effective: 2024-10-17
Alternative parts:
Price: 3,00 € : 3,00 €
-+
11
P/N (SKU): 30902-0401320
Part Name: RIVET
Effective: 2024-10-17
Alternative parts:
Specification: φ4×13
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9RHV-030004-1200
Part Name: SHOCK ABSORBER BUSHING 2
Effective: 2024-10-17
Alternative parts:
Price: 4,00 € : 4,00 €
-+
13
P/N (SKU): 30305-080112
Part Name: WASHER
Effective: 2024-10-17
Alternative parts:
Specification: φ8
Price: 1,50 € : 1,50 €
-+
