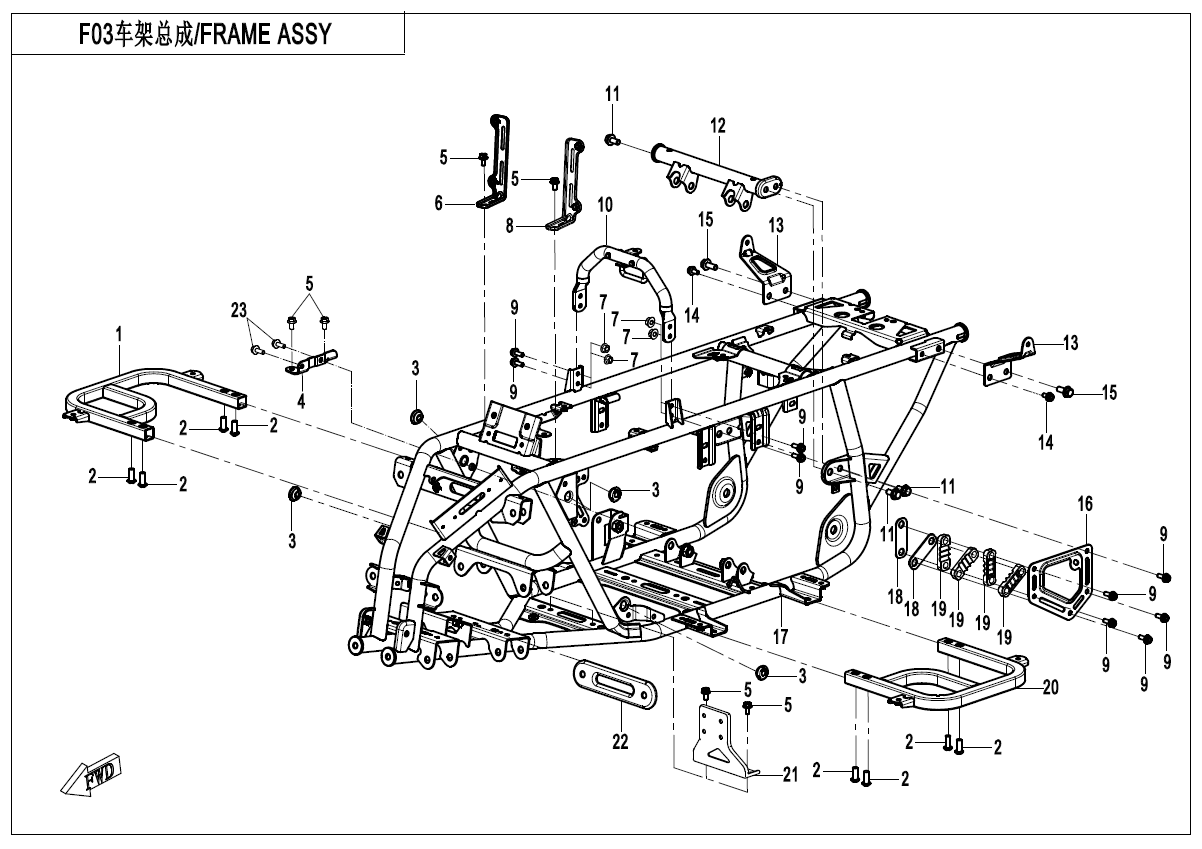

FRAME - F03

FRAME - F03

No.

01
P/N (SKU): HH4V-030400-1000
Part Name: RH FOOTREST ASSY
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: ELECTROPHORESIS BLACK
Price: 17,00 € : 17,00 €
02
P/N (SKU): 30121-080020870
Part Name: HEXAGON SOCKET BUTTON HEAD SCREWS
Effective: 2024-04-26
Remarks: null
Alternative parts: 30006-080020870
Specification: M8x20@BLACK ZINC
Price: 1,50 € : 1,50 €
03
P/N (SKU): 5BY0-040010
Part Name: RUBBER SLEEVE
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
04
P/N (SKU): HH4V-030002-1400
Part Name: BRAKE MASTER CYLINDER BRACKET
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 4,00 € : 4,00 €
05
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-04-26
Remarks: null
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
06
P/N (SKU): HH4V-030040-1001
Part Name: MCU RH BACKET
Effective: 2024-04-26
Alternative parts: null
Specification: BLACK ELECTROPHORESIS
Price: 4,00 € : 4,00 €
07
P/N (SKU): 30204-060810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): HH4V-030030-1001
Part Name: MCU LH BACKET
Effective: 2024-04-26
Alternative parts: null
Specification: BLACK ELECTROPHORESIS
Price: 4,00 € : 4,00 €
09
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): HH4V-030100-1001
Part Name: FRONT SUPPORTER, SEAT
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 13,00 € : 13,00 €
11
P/N (SKU): 30006-080016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
12
P/N (SKU): HH4V-030200-1000
Part Name: MOTOR REAR UPPER BRACKET ASSY
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 21,00 € : 21,00 €
13
P/N (SKU): HH4V-030010-1000
Part Name: REAR FENDER BRACKET
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 8,00 € : 8,00 €
14
P/N (SKU): 30006-060012870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 30006-080020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: M8x20@COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): HH4V-030020-1000
Part Name: HIGH-TENSION CABLE BRACKET
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 8,50 € : 8,50 €
17
P/N (SKU): HH4V-031000-1007-01
Part Name: FRAME ASSY
Effective: 2024-04-26
Alternative parts: null
Specification: null
Price: 247,00 € : 247,00 €
18
P/N (SKU): HH4V-030050-1000
Part Name: HIGH-TENSION CABLE PRESS PLATE ASSY
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 9,00 € : 9,00 €
19
P/N (SKU): HH4V-042043-1000
Part Name: HIGH-TENSION CABLE PRESS BLOCK
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 2,50 € : 2,50 €
20
P/N (SKU): HH4V-030300-1000
Part Name: LH FOOTREST ASSY
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: ELECTROPHORESIS BLACK
Price: 17,00 € : 17,00 €
21
P/N (SKU): HH4V-030060-1400
Part Name: HYDRAULIC DISTRIBUTION VALVE BRACKET
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 5,00 € : 5,00 €
22
P/N (SKU): HH4V-030001-1000
Part Name: BRACKET, FRONT SWING ARM
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 8,00 € : 8,00 €
23
P/N (SKU): 30006-060020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-04-26
Remarks: null
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,50 € : 1,50 €
