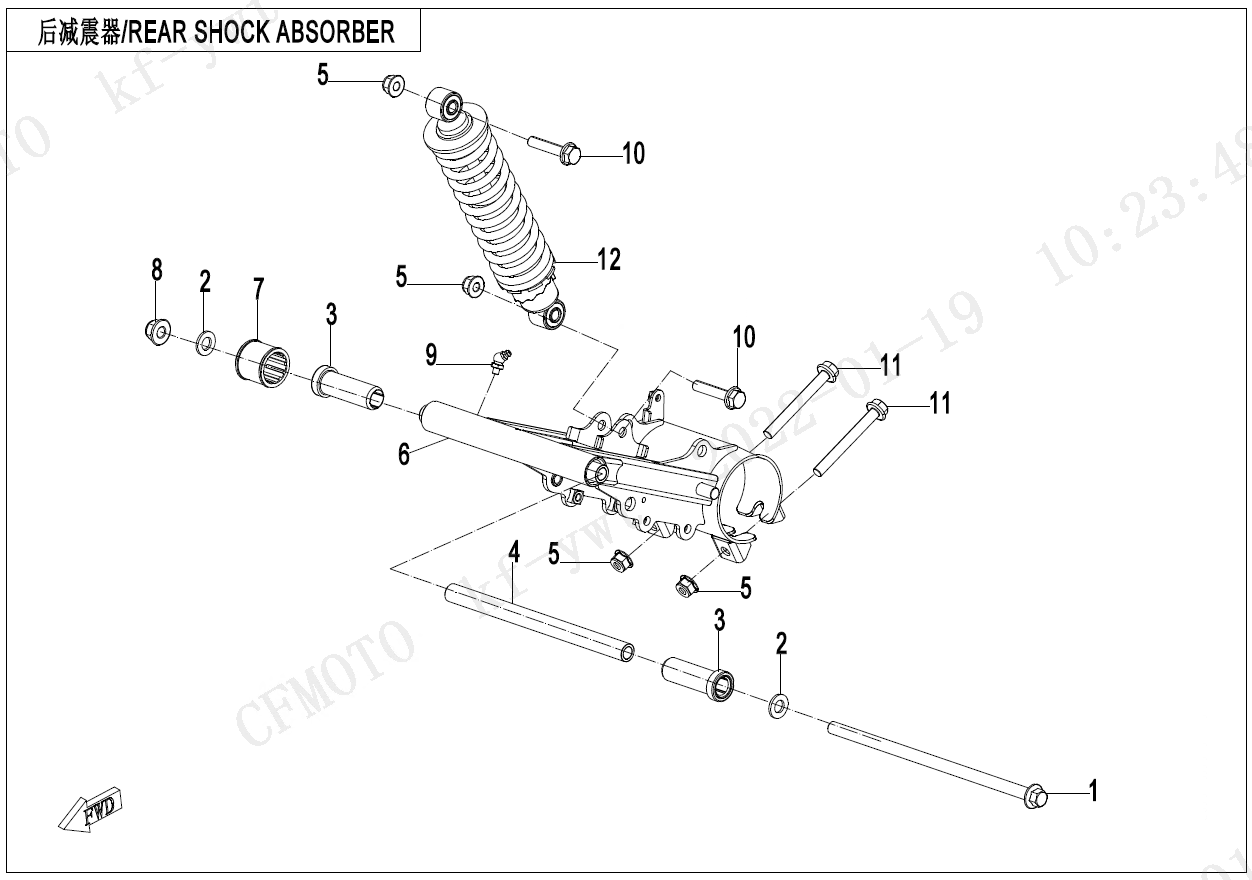

REAR SUSPENSION - F06 | 2025, CHILDREN´S ATV, CF15DAY10 |

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 5BY0-050203

Part Name: MOUNTING SHAFT, FRONT LOWER SWING ARM

Effective: 2024-04-26

Remarks: null

Alternative parts: null

Price: 10,00 € : 10,00 €

02

P/N (SKU): 30306-120112

Part Name: PLAIN WASHERS

Effective: 2024-04-26

Remarks: null

Alternative parts: null

Specification: Ï12@COLOR ZINC TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

03

P/N (SKU): 5BY0-050102

Part Name: DAMPING SLEEVE, FRONT UPPER SWING ARM

Effective: 2024-04-26

Remarks: null

Alternative parts: null

Price: 3,00 € : 3,00 €

04

P/N (SKU): 5BY0-050201

Part Name: MIDDLE SPACER, FRONT LOWER SWING ARM

Effective: 2024-04-26

Remarks: null

Alternative parts: null

Price: 12,00 € : 12,00 €

05

P/N (SKU): 30204-102810

Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE

Effective: 2024-04-26

Remarks: null

Alternative parts: null

Specification: M10Ã1.25

Price: 1,50 € : 1,50 €

06

P/N (SKU): HH4V-060100-1000

Part Name: REAR SWING ARM ASSY

Effective: 2024-04-26

Remarks: null

Alternative parts: null

Specification: null

Price: 103,00 € : 103,00 €

07

P/N (SKU): HH4V-060202-1000

Part Name: PROTECTOR, SHAFT BUSHING

Effective: 2024-04-26

Remarks: null

Alternative parts: null

Specification: null

Price: 3,50 € : 3,50 €

08

P/N (SKU): 30204-122810

Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE

Effective: 2024-04-26

Remarks: null

Alternative parts: null

Specification: M12Ã1.25

Price: 1,50 € : 1,50 €

09

P/N (SKU): 3120100

Part Name: OIL CUP

Effective: 2024-04-26

Remarks: null

Alternative parts: null

Price: 1,50 € : 1,50 €

10

P/N (SKU): 30006-102045810

Part Name: HEXAGON FLANGE BOLTS

Effective: 2024-04-26

Remarks: null

Alternative parts: F03V-100001-1000

Specification: M10Ã1.25Ã45

Price: 2,00 € : 2,00 €

11

P/N (SKU): 30006-102090810

Part Name: HEXAGON FLANGE BOLTS

Effective: 2024-04-26

Remarks: null

Alternative parts: null

Specification: M10Ã1.25Ã90

Price: 3,00 € : 3,00 €

12

P/N (SKU): HH4V-060500-1001-0YD00

Part Name: REAR SHOCK ABSORBER ASSY

Effective: 2024-04-26

Remarks: null

Alternative parts: null

Specification: LAVA ORANGE

Price: 66,00 € : 66,00 €

12

P/N (SKU): HH4V-060500-1001-0G700

Part Name: REAR SHOCK ABSORBER ASSY

Effective: 2024-04-26

Remarks: null

Alternative parts: null

Specification: LEMON GREEN

Price: 66,00 € : 66,00 €
