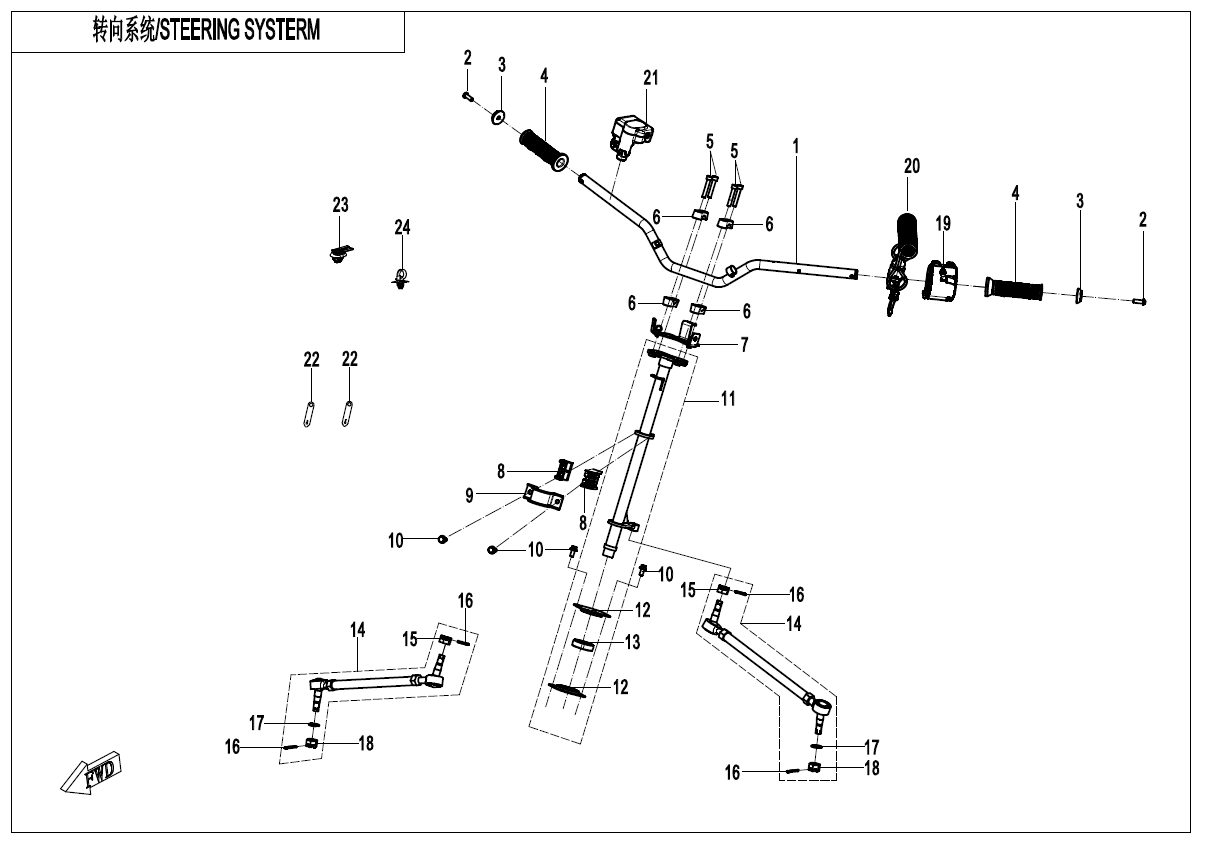

STEERING SYSTERM - F10-V2

STEERING SYSTERM - F10-V2

No.

1
P/N (SKU): HH4V-101100-1000-0BU00
Part Name: HANDLEBAR ASSY
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: MIST SILVER BLACK
Price: 60,00 € : 60,00 €
-+
2
P/N (SKU): 30121-080020870
Part Name: HEXAGON SOCKET BUTTON HEAD SCREWS
Effective: 2024-04-26
Remarks: null
Alternative parts: 30006-080020870
Specification: M8x20@BLACK ZINC
Price: 1,50 € : 1,50 €
3
P/N (SKU): 9DQV-100003-3000
Part Name: HANDLEBAR END COVER
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
-+
4
P/N (SKU): 9DQV-100005-3000
Part Name: RUBBER SLEEVE, HAND GRIP
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 7,00 € : 7,00 €
-+
5
P/N (SKU): 30102-080045810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: M8x45@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 9DSV-100001-6K01
Part Name: HANDLEBAR BLOCK
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 14,00 € : 14,00 €
-+
7
P/N (SKU): HH4V-100001-1001
Part Name: BRACKET, DASHBOARD COVER
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
8
P/N (SKU): 5BYA-060003
Part Name: SEAT, SWAY BAR
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Price: 6,00 € : 6,00 €
-+
9
P/N (SKU): 9RHV-100510-1000
Part Name: STEERING COLUMN PRESS COVER
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
10
P/N (SKU): 30006-080016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
11
P/N (SKU): HH4V-1021A0
Part Name: STEERING SHAFT ASSY
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 72,00 € : 72,00 €
-+
12
P/N (SKU): 7020-100301-10000
Part Name: SEAT, STEERING SHAFT
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
13
P/N (SKU): 7020-100600
Part Name: BEARING, OUTER SPHERICAL
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: 205
Price: 21,00 € : 21,00 €
-+
14
P/N (SKU): 9RHV-100530-1001
Part Name: STEERING ROD
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 29,00 € : 29,00 €
-+
15
P/N (SKU): 9RHV-100530-1000-20
Part Name: SLOTTED NUT THIN
Effective: 2024-04-26
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
16
P/N (SKU): 9RHV-100530-1001-23
Part Name: COTTER PIN
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
17
P/N (SKU): 9RHV-100530-1000-22
Part Name: GASKET
Effective: 2024-04-26
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
18
P/N (SKU): 9RHV-100530-1000-21
Part Name: SLOTTED NUT THICK
Effective: 2024-04-26
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
19
P/N (SKU): HH4V-166000-1001
Part Name: HANDLEBAR SWITCH ASSY, LH
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 41,00 € : 41,00 €
-+
20
P/N (SKU): 9RHV-169010-1001
Part Name: SAFETY ROPE ASSY
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 17,00 € : 17,00 €
-+
21
P/N (SKU): HH4V-169450-1000
Part Name: ELECTRONIC FUELER
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 93,00 € : 93,00 €
-+
22
P/N (SKU): 6KJ0-100002
Part Name: CLUTCH PULL BINDING
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 6GU#-150001-6000-M1
Part Name: CLASP
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
24
P/N (SKU): CFCV-BBC001-2000-M1
Part Name: TIE BAND
Effective: 2024-04-26
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
