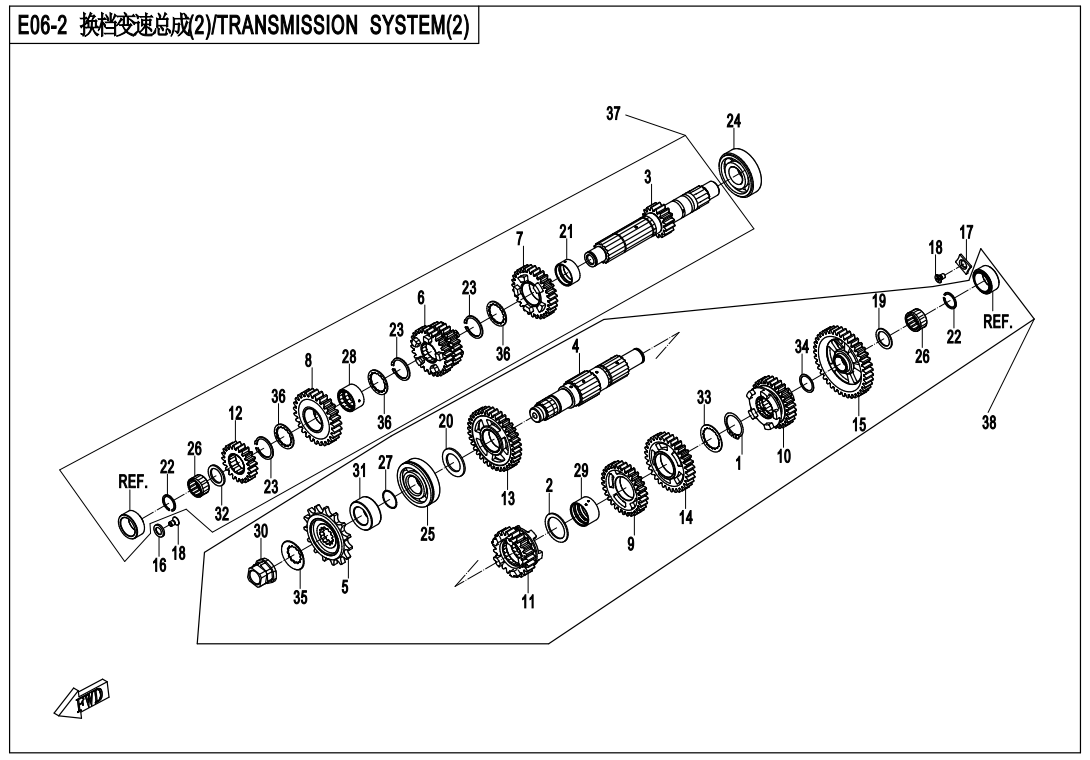

TRANSMISSION SYSTEM(2) - E06-2

TRANSMISSION SYSTEM(2) - E06-2

No.

01
P/N (SKU): 30801-03005
Part Name: CIRCLIP30 S=1.5
Effective: 2024-09-10
Alternative parts:
Specification: 30
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 0700-062009
Part Name: WASHER
Effective: 2024-09-10
Alternative parts:
Specification: 30x38.5x1.5
Price: 3,00 € : 3,00 €
-+
03
P/N (SKU): 0HU0-061001-10000
Part Name: MAIN SHAFT
Effective: 2024-09-10
Alternative parts:
Price: 86,00 € : 86,00 €
-+
04
P/N (SKU): 0HU0-062001
Part Name: COUNTER SHAFT
Effective: 2024-09-10
Alternative parts:
Price: 82,00 € : 82,00 €
-+
05
P/N (SKU): 0700-062030
Part Name: SPROCKET, OUTPUT
Effective: 2024-09-10
Alternative parts: 0700-062030-00001
Price: 27,00 € : 27,00 €
-+
06
P/N (SKU): 0700-061011-1000
Part Name: DRIVE GEAR, 3RD AND 4TH SPEED
Effective: 2024-09-10
Alternative parts:
Specification: 1-3 GEAR
Price: 89,00 € : 89,00 €
-+
07
P/N (SKU): 0HU0-061007
Part Name: DRIVEN GEAR
Effective: 2024-09-10
Alternative parts:
Specification: 5TH GEAR
Price: 47,00 € : 47,00 €
-+
08
P/N (SKU): 0HU0-061013
Part Name: DRIVE GEAR
Effective: 2024-09-10
Alternative parts:
Price: 45,00 € : 45,00 €
-+
09
P/N (SKU): 0HU0-062008
Part Name: DRIVEN GEAR
Effective: 2024-09-10
Alternative parts:
Price: 61,00 € : 61,00 €
-+
10
P/N (SKU): 0HU0-062004
Part Name: DRIVEN GEAR
Effective: 2024-09-10
Alternative parts:
Specification: 5TH GEAR
Price: 68,00 € : 68,00 €
-+
11
P/N (SKU): 0700-062011-1000
Part Name: DRIVEN GEAR, 6TH SPEED
Effective: 2024-09-10
Alternative parts:
Specification: 23
Price: 55,00 € : 55,00 €
-+
11
P/N (SKU): 0HU0-062011-00001
Part Name: DRIVEN GEAR
Effective: 2024-11-06
Alternative parts:
Price: 42,00 € : 42,00 €
-+
12
P/N (SKU): 0HU0-061014
Part Name: DRIVE GEAR
Effective: 2024-09-10
Alternative parts:
Price: 35,00 € : 35,00 €
-+
13
P/N (SKU): 0HU0-062200
Part Name: DRIVEN GEAR SUB PART
Effective: 2024-09-10
Alternative parts:
Price: 46,00 € : 46,00 €
-+
14
P/N (SKU): 0HU0-062006
Part Name: DRIVEN GEAR
Effective: 2024-09-10
Alternative parts:
Price: 55,00 € : 55,00 €
-+
15
P/N (SKU): 0HU0-062100
Part Name: DRIVEN GEAR SUB PART
Effective: 2024-09-10
Alternative parts:
Price: 46,00 € : 46,00 €
-+
16
P/N (SKU): 0700-011108
Part Name: PRESS TOOL, SHAFT SLEEVE
Effective: 2024-09-10
Alternative parts:
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 0HU0-066003
Part Name: RETAINING PLATE 1
Effective: 2024-09-10
Alternative parts:
Price: 2,00 € : 2,00 €
-+
18
P/N (SKU): 0180-014009-00001
Part Name: SCREW, PRESS PLATE
Effective: 2024-09-10
Alternative parts:
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 0HU0-062002
Part Name: GASKET
Effective: 2024-09-10
Alternative parts: 0HU0-062002-1000
Specification: 20.5x32x1.2
Price: 3,00 € : 3,00 €
19
P/N (SKU): 0HU0-062002-10000
Part Name: GASKET
Effective: 2025-12-12
Alternative parts:
Specification: 20.5×32×1.2
Price: 0,00 € : 0,00 €
-+
20
P/N (SKU): 0700-062012
Part Name: WASHER
Effective: 2024-09-10
Alternative parts:
Specification: 25x39x2
Price: 3,00 € : 3,00 €
-+
21
P/N (SKU): 0700-061006
Part Name: BUSHING 28x14
Effective: 2024-09-10
Alternative parts:
Price: 8,50 € : 8,50 €
-+
22
P/N (SKU): 0700-061016
Part Name: CIRCLIPS FOR SHAFT20
Effective: 2024-09-10
Alternative parts:
Specification: 20
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 0700-061009
Part Name: CIRCLIPS FOR SHAFT28
Effective: 2024-09-10
Alternative parts:
Specification: 28
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 0700-066002
Part Name: BEARING 25x62x17
Effective: 2024-09-10
Alternative parts:
Specification: 25x62x17
Price: 46,00 € : 46,00 €
-+
25
P/N (SKU): 0700-010100
Part Name: BEARING 25x62x17, COUNTERSHAFT
Effective: 2024-09-10
Alternative parts:
Specification: 25x62x17
Price: 23,00 € : 23,00 €
-+
26
P/N (SKU): 0HU0-061100
Part Name: NEEDLE BEARING K20x28x16
Effective: 2024-09-10
Alternative parts:
Price: 22,00 € : 22,00 €
-+
27
P/N (SKU): 0800-062205
Part Name: O-RING
Effective: 2024-09-10
Alternative parts:
Specification: 25x2
Price: 2,00 € : 2,00 €
-+
28
P/N (SKU): 0700-061012
Part Name: BUSHING 28x14.7
Effective: 2024-09-10
Alternative parts:
Price: 9,00 € : 9,00 €
-+
29
P/N (SKU): 0700-062007
Part Name: BUSHING 29.65
Effective: 2024-09-10
Alternative parts:
Price: 11,00 € : 11,00 €
-+
30
P/N (SKU): 0700-062016-00001
Part Name: NUT, COUNTER PULSE
Effective: 2024-09-10
Alternative parts:
Price: 3,50 € : 3,50 €
-+
31
P/N (SKU): 0700-062013-20001
Part Name: COUNTERSHAFT SHAFT SLEEVE
Effective: 2024-09-10
Alternative parts:
Price: 0,00 € : 0,00 €
-+
32
P/N (SKU): 0HU0-061002-10000
Part Name: GASKET
Effective: 2024-09-10
Alternative parts:
Specification: 20.5x32x1.5
Price: 1,50 € : 1,50 €
-+
33
P/N (SKU): 0700-062005
Part Name: WASHER
Effective: 2024-09-10
Alternative parts:
Price: 2,00 € : 2,00 €
-+
34
P/N (SKU): 0700-062003
Part Name: WASHER
Effective: 2024-09-10
Alternative parts:
Specification: 20.4x25x0.5
Price: 2,00 € : 2,00 €
-+
35
P/N (SKU): 0700-062015
Part Name: WASHER
Effective: 2024-09-10
Alternative parts:
Price: 1,50 € : 1,50 €
-+
36
P/N (SKU): 0700-061008
Part Name: WASHER
Effective: 2024-09-10
Alternative parts:
Price: 2,00 € : 2,00 €
-+
37
P/N (SKU): 0HU0-061000-10001
Part Name: MAIN SHAFT
Effective: 2024-09-10
Alternative parts:
Price: 176,00 € : 176,00 €
-+
38
P/N (SKU): 0HU0-062000-10001
Part Name: COUNTERSHAFT
Effective: 2024-09-10
Alternative parts:
Price: 438,00 € : 438,00 €
-+
