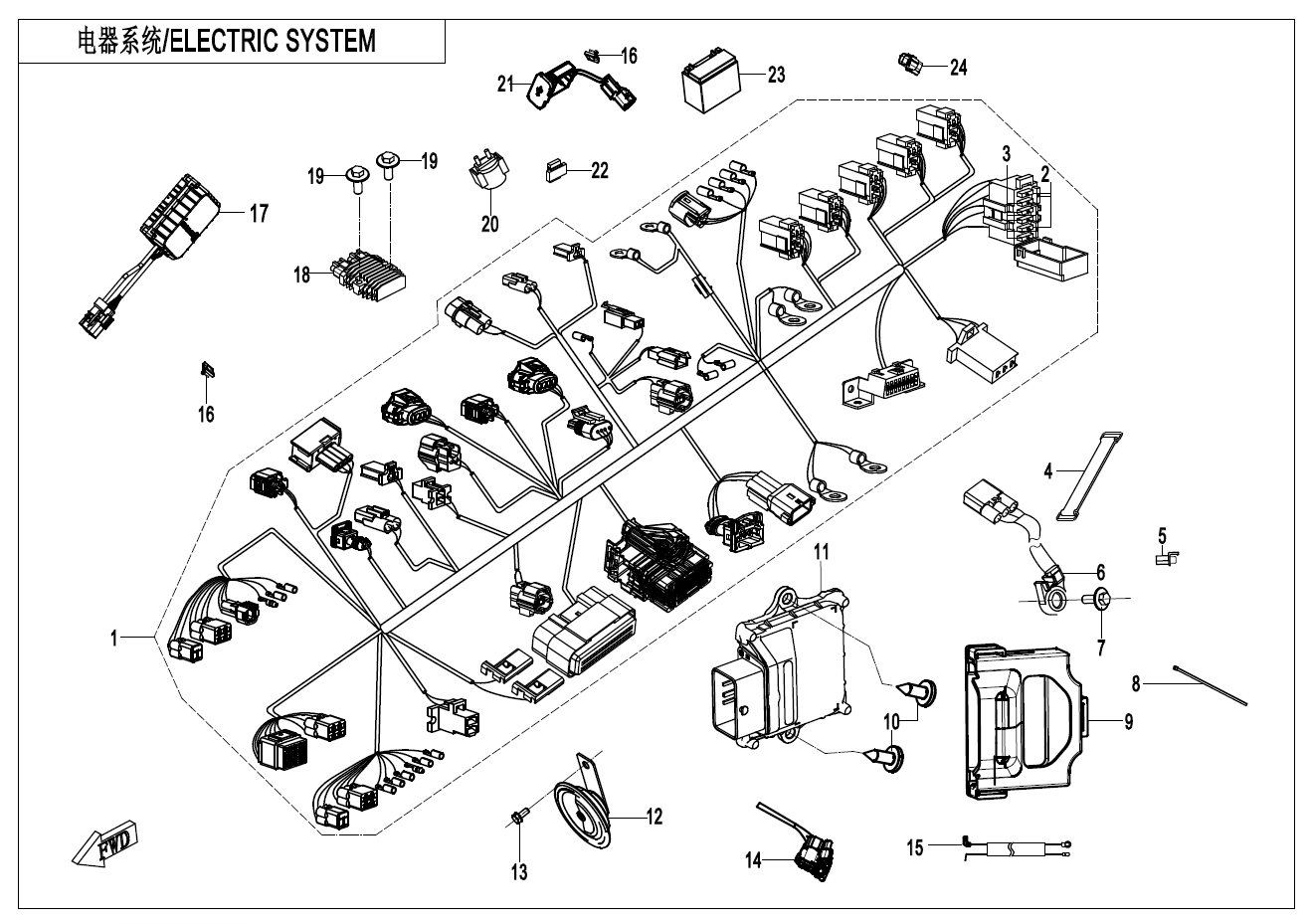

ELECTRIC SYSTEM - F15

ELECTRIC SYSTEM - F15

No.

1
P/N (SKU): 6KMV-150100-2800
Part Name: MAIN CABLE
Effective: 2024-12-18
Alternative parts: null
Specification: null
Price: 199,50 € : 199,50 €
2
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2024-12-18
Remarks: null
Alternative parts: null
Specification: 10A
Price: 2,50 € : 2,50 €
-+
3
P/N (SKU): 806A-151303
Part Name: FUSE
Effective: 2024-12-18
Remarks: null
Alternative parts: 806A-151305
Specification: 15A
Price: 4,00 € : 4,00 €
4
P/N (SKU): 9RHV-150700-1000
Part Name: BATTERY TIE BAND
Effective: 2024-12-18
Remarks: null
Alternative parts: 9RHV-150700-1001
Specification: null
Price: 3,00 € : 3,00 €
-+
4
P/N (SKU): 9RHV-150700-1001
Part Name: TIE BAND, BATTERY
Effective: 2025-08-18
Remarks: null
Alternative parts: null
Specification: null
Price: 3,60 € : 3,60 €
5
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Effective: 2024-12-18
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
6
P/N (SKU): 6KMV-151500-3000
Part Name: SIDE STAND SWITCH
Effective: 2024-12-18
Remarks: null
Alternative parts: null
Price: 18,00 € : 18,00 €
-+
7
P/N (SKU): 6NQ#-000204-6001
Part Name: BOLT
Effective: 2024-12-18
Remarks: null
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
8
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2024-12-18
Remarks: null
Alternative parts: null
Specification: 5x250
Price: 1,50 € : 1,50 €
9
P/N (SKU): 6KMV-001300-M300
Part Name: ECU RUBBER SLEEVE
Effective: 2024-12-18
Remarks: null
Alternative parts: null
Specification: null
Price: 4,80 € : 4,80 €
10
P/N (SKU): 30102-060012810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2024-12-18
Remarks: null
Alternative parts: null
Specification: M6×12
Price: 1,50 € : 1,50 €
11
P/N (SKU): 6KMV-001000-2800
Part Name: ECM ASSY
Effective: 2024-12-18
Alternative parts: null
Specification: MSE6.0
Price: 96,30 € : 96,30 €
12
P/N (SKU): 6KWV-150600-1000
Part Name: HORN
Effective: 2024-12-18
Remarks: null
Alternative parts: 6FIV-150600-7000
Specification: null
Price: 11,00 € : 11,00 €
-+
13
P/N (SKU): 6WWV-047002-5000
Part Name: INNER HEX SCREW M6x25
Effective: 2024-12-18
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
14
P/N (SKU): 6KMV-150176-M300
Part Name: LICENSE LIGHT ADAPTER CABLE
Effective: 2024-12-18
Remarks: null
Alternative parts: null
Specification: null
Price: 16,19 € : 16,19 €
15
P/N (SKU): 6KMV-150200-M300
Part Name: START MOTOR POSITIVE/NEGATIVE CABLE
Effective: 2024-12-18
Remarks: null
Alternative parts: null
Specification: null
Price: 16,80 € : 16,80 €
16
P/N (SKU): CFCV-CBC005-2000-M1
Part Name: CLIP
Effective: 2024-12-19
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
17
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2024-12-18
Remarks: null
Alternative parts: null
Specification: @Eurasia and Africa and Australia except Turkey,BN,IN,BD,MN,NP
Price: 420,00 € : 420,00 €
-+
17
P/N (SKU): SN1V-691100-1301-11
Part Name: T-BOX
Effective: 2024-12-18
Remarks: NA
Alternative parts: null
Specification: North Amrica
Price: 420,00 € : 420,00 €
-+
17
P/N (SKU): SN1V-691100-1401-11
Part Name: T-BOX
Effective: 2024-12-18
Remarks: SA
Alternative parts: null
Specification: AllyTech@South America except for Brazil
Price: 420,00 € : 420,00 €
17
P/N (SKU): SN1V-691100-1501-11
Part Name: T-BOX
Effective: 2024-12-18
Remarks: TURKEY
Alternative parts: null
Specification: Turkey
Price: 420,00 € : 420,00 €
17
P/N (SKU): SN1V-691100-1601-11
Part Name: T-BOX
Effective: 2024-12-18
Remarks: BR
Alternative parts: null
Specification: Brazil
Price: 420,00 € : 420,00 €
18
P/N (SKU): 6KJC-177000-8000
Part Name: REGULATOR
Effective: 2024-12-18
Remarks: null
Alternative parts: null
Price: 28,00 € : 28,00 €
19
P/N (SKU): 6WWV-046802-5000
Part Name: INNER HEX SCREW M6x16
Effective: 2024-12-18
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
20
P/N (SKU): 6AQV-150510-7101
Part Name: STARTER RELAY
Effective: 2026-04-24
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
20
P/N (SKU): 6AQV-150510-7100
Part Name: STARTER RELAY
Effective: 2024-12-18
Remarks: null
Alternative parts: 6AQV-150510-7101
Specification: null
Price: 17,00 € : 17,00 €
-+
21
P/N (SKU): FA8V-150600-1001-10
Part Name: USB OUTLET SEAT ASSY
Effective: 2024-12-18
Remarks: null
Alternative parts: null
Specification: null
Price: 26,00 € : 26,00 €
21
P/N (SKU): 8AJV-151200-1100-M1
Part Name: USB OUTLET SOCKET
Effective: 2025-09-10
Remarks: null
Alternative parts: null
Specification: null
Price: 22,39 € : 22,39 €
22
P/N (SKU): 6100-150500
Part Name: RUBBER SLEEVE, FLASHER
Effective: 2024-12-18
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 6KMV-151600-M000-M1
Part Name: BATTERY
Effective: 2024-12-18
Remarks: null
Alternative parts: null
Specification: null
Price: 64,80 € : 64,80 €
24
P/N (SKU): CFCV-156103-2000
Part Name: T-BOX CONNECTOR PLUG
Effective: 2024-12-18
Remarks: null
Alternative parts: CFCV-156122-2000-M1
Specification: null
Price: 6,00 € : 6,00 €
-+
25
P/N (SKU): 5BY4-150330
Part Name: AUXILIARY RELAY
Effective: 2026-05-19
Remarks: null
Alternative parts: null
Price: 7,50 € : 7,50 €
-+
