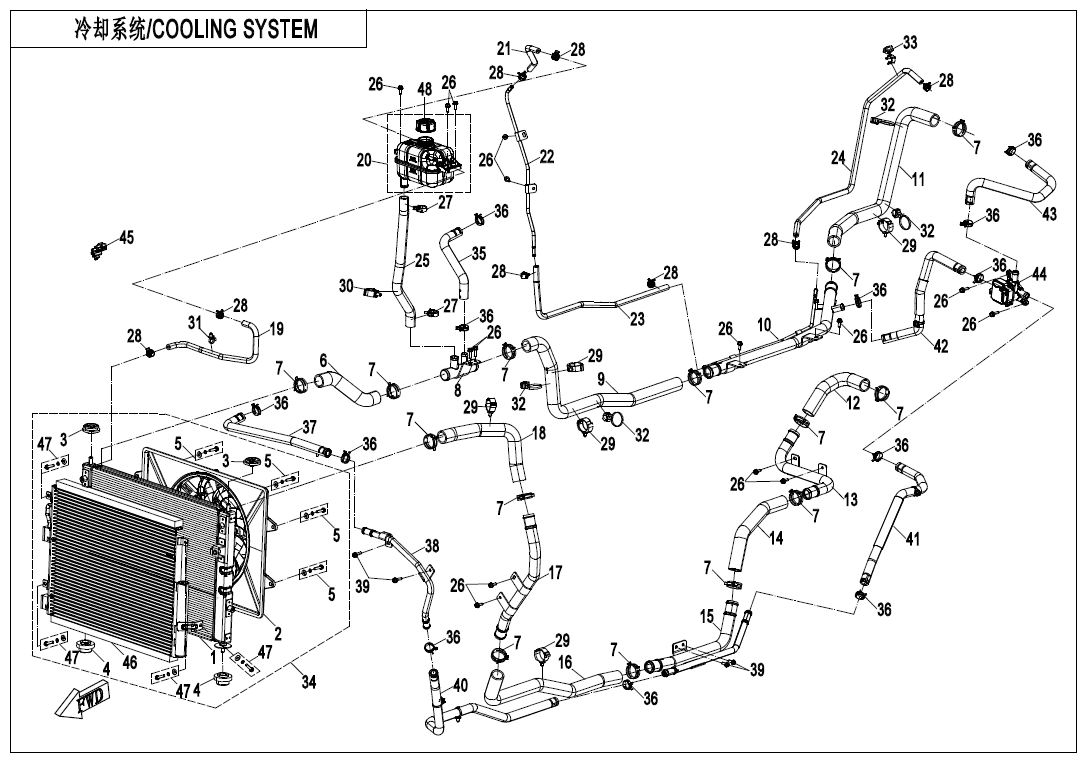

COOLING SYSTEM(FOR AIR CONDITIONING SYSTEM) - F18-A

COOLING SYSTEM(FOR AIR CONDITIONING SYSTEM) - F18-A

No.

1
P/N (SKU): 5HYV-181120-6001
Part Name: RADIATOR
Effective: 2025-01-14
Alternative parts: null
Specification: null
Price: 77,00 € : 77,00 €
2
P/N (SKU): 5HYV-181130-6001
Part Name: FAN
Effective: 2025-01-14
Alternative parts: null
Specification: null
Price: 66,00 € : 66,00 €
3
P/N (SKU): 5HYV-181140-6000
Part Name: UPPER INSULATION
Effective: 2025-01-14
Alternative parts: null
Specification: null
Price: 19,00 € : 19,00 €
-+
4
P/N (SKU): 5HYV-181150-6000
Part Name: LOWER INSULATION
Effective: 2025-01-14
Alternative parts: null
Specification: null
Price: 19,00 € : 19,00 €
-+
5
P/N (SKU): 5HYV-181100-6000-20
Part Name: BOLT ASSY
Effective: 2025-01-14
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
6
P/N (SKU): 5HYV-182040-6000
Part Name: RADIATOR INLET PIPE
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 8,50 € : 8,50 €
7
P/N (SKU): 5HYV-187002-6000
Part Name: CLAMP B38
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
8
P/N (SKU): 5HYV-355090-9000
Part Name: 4-WAY AL PIPE
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
9
P/N (SKU): 5HYV-182500-6000
Part Name: CONNECTING TUBE 1
Effective: 2025-01-14
Remarks: null
Alternative parts: 5HYV-182500-6001
Specification: null
Price: 19,00 € : 19,00 €
10
P/N (SKU): 5HYV-355080-9000
Part Name: CONNECTING AL PIPE
Effective: 2025-01-14
Remarks: null
Alternative parts: 5SYV-355010-8301
Specification: null
Price: 23,60 € : 23,60 €
11
P/N (SKU): 5HYV-182050-6000
Part Name: ENGINE WATER INTLET PIPE
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 19,00 € : 19,00 €
12
P/N (SKU): 5HYV-182060-6000
Part Name: ENGINE WATER OUTLET PIPE
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 9,00 € : 9,00 €
13
P/N (SKU): 5HYV-183500-6000
Part Name: CONNECTING ALUM PIPE 1
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 14,00 € : 14,00 €
14
P/N (SKU): 5HYV-182510-6000
Part Name: CONNECTING TUBE 2
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
15
P/N (SKU): 5HYV-352120-9000
Part Name: HEATER INTAKE PIPE 2
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 13,50 € : 13,50 €
16
P/N (SKU): 5HYV-182520-6000
Part Name: CONNECTING TUBE 3
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 17,00 € : 17,00 €
17
P/N (SKU): 5HYV-183030-6000
Part Name: RADIATOR INLET ALUM PIPE
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 16,00 € : 16,00 €
-+
18
P/N (SKU): 5HYV-182030-6000
Part Name: RADIATOR INLET PIPE
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
-+
19
P/N (SKU): 5HYV-182400-6001
Part Name: RADIATOR AIR REMOVAL PIPE
Effective: 2025-01-14
Alternative parts: null
Specification: null
Price: 7,00 € : 7,00 €
20
P/N (SKU): 5HYV-184030-6000
Part Name: ENGINE EXPANSION BOX
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 26,00 € : 26,00 €
21
P/N (SKU): 5HYV-182530-6001
Part Name: CONNECTING TUBE 4
Effective: 2025-01-14
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
22
P/N (SKU): 5HYV-183420-6000
Part Name: ENGINE REMOVAL ALUM PIPE
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 9,00 € : 9,00 €
23
P/N (SKU): 5HYV-182540-6001
Part Name: CONNECTING TUBE 5
Effective: 2025-01-14
Alternative parts: 5HYV-182540-6002
Specification: null
Price: 8,50 € : 8,50 €
24
P/N (SKU): 5HYV-182420-6001
Part Name: ENGINE REMOVAL PIPE
Effective: 2025-01-14
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
25
P/N (SKU): 5HYV-182410-6000
Part Name: ENGINE FEED PIPE
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
26
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 6KM0-180004
Part Name: CLAMP B28
Effective: 2025-01-14
Remarks: null
Alternative parts: 30605-127060
Price: 3,00 € : 3,00 €
28
P/N (SKU): 30605-114060
Part Name: SPRING BAND HOSE CLAMPS
Effective: 2025-01-14
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
29
P/N (SKU): 5HYV-188003-6000
Part Name: CLASP 37
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
30
P/N (SKU): 5HYV-188002-6000
Part Name: CLASP 27
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
31
P/N (SKU): 5HYV-188001-6000
Part Name: CLASP 15
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
32
P/N (SKU): 5HYV-188004-6000
Part Name: CLIP 15-37
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
33
P/N (SKU): 5HYV-188005-6000
Part Name: CLIP 15-20
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
34
P/N (SKU): 5HYV-181100-9002
Part Name: COOLING MODULE
Effective: 2025-01-14
Alternative parts: null
Specification: null
Price: 324,76 € : 324,76 €
35
P/N (SKU): 5HYV-352200-9000
Part Name: HEATER OUTLET PIPE
Effective: 2025-01-14
Remarks: null
Alternative parts: 5HYV-352200-9001
Specification: null
Price: 5,39 € : 5,39 €
36
P/N (SKU): 30601-223050
Part Name: STEEL BELT TYPE ELASTIC RING HOOP
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
37
P/N (SKU): 5HYV-352107-9000
Part Name: HEATER INTAKE HOSE 2
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 7,70 € : 7,70 €
38
P/N (SKU): 5HYV-352110-9000
Part Name: HEATER INTAKE PIPE 1
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
39
P/N (SKU): 30006-060020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-01-14
Remarks: null
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,50 € : 1,50 €
40
P/N (SKU): 5HYV-352105-9000
Part Name: HEATER INTAKE HOSE 1
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 12,50 € : 12,50 €
41
P/N (SKU): 5HYV-352103-9000
Part Name: 3-WAY VALVE OUTLET HOSE 2
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 8,80 € : 8,80 €
42
P/N (SKU): 5HYV-352102-9000
Part Name: 3-WAY VALVE OUTLET HOSE 1
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 7,70 € : 7,70 €
43
P/N (SKU): 5HYV-352101-9000
Part Name: 3-WAY VALVE INTAKE HOSE
Effective: 2025-01-14
Remarks: null
Alternative parts: null
Specification: null
Price: 7,15 € : 7,15 €
44
P/N (SKU): 5HYV-354600-9000
Part Name: 3-WAY ELECTRONIC WATER VALVE
Effective: 2025-01-14
Alternative parts: 5HYV-354600-9001/5HYV-354600-9002
Specification: null
Price: 96,30 € : 96,30 €
44
P/N (SKU): 5HYV-354600-9001
Part Name: 3-WAY ELECTRONIC WATER VALVE
Effective: 2025-10-09
Remarks: null
Alternative parts: 5HYV-354600-9002
Specification: null
Price: 96,30 € : 96,30 €
-+
45
P/N (SKU): 5HYV-354300-9000
Part Name: OUTDOOR TEMP. SENSOR
Effective: 2025-01-14
Alternative parts: 5HYV-354300-9001
Specification: null
Price: 35,00 € : 35,00 €
-+
45
P/N (SKU): 5HYV-354300-9001
Part Name: OUTDOOR TEMP. SENSOR
Effective: 2025-09-29
Remarks: null
Alternative parts: null
Specification: null
Price: 7,15 € : 7,15 €
46
P/N (SKU): 5HYV-351200-9002
Part Name: CONDENSER ASSY
Effective: 2025-01-14
Alternative parts: null
Specification: null
Price: 148,50 € : 148,50 €
47
P/N (SKU): 5HYV-181100-9000-20
Part Name: BOLT
Effective: 2025-01-14
Alternative parts: null
Specification: null
Price: 2,70 € : 2,70 €
48
P/N (SKU): 5HYV-184032-6000-21
Part Name: PRESSURE CAP
Effective: 2025-10-23
Remarks: null
Alternative parts: null
Specification: null
Price: 10,45 € : 10,45 €
