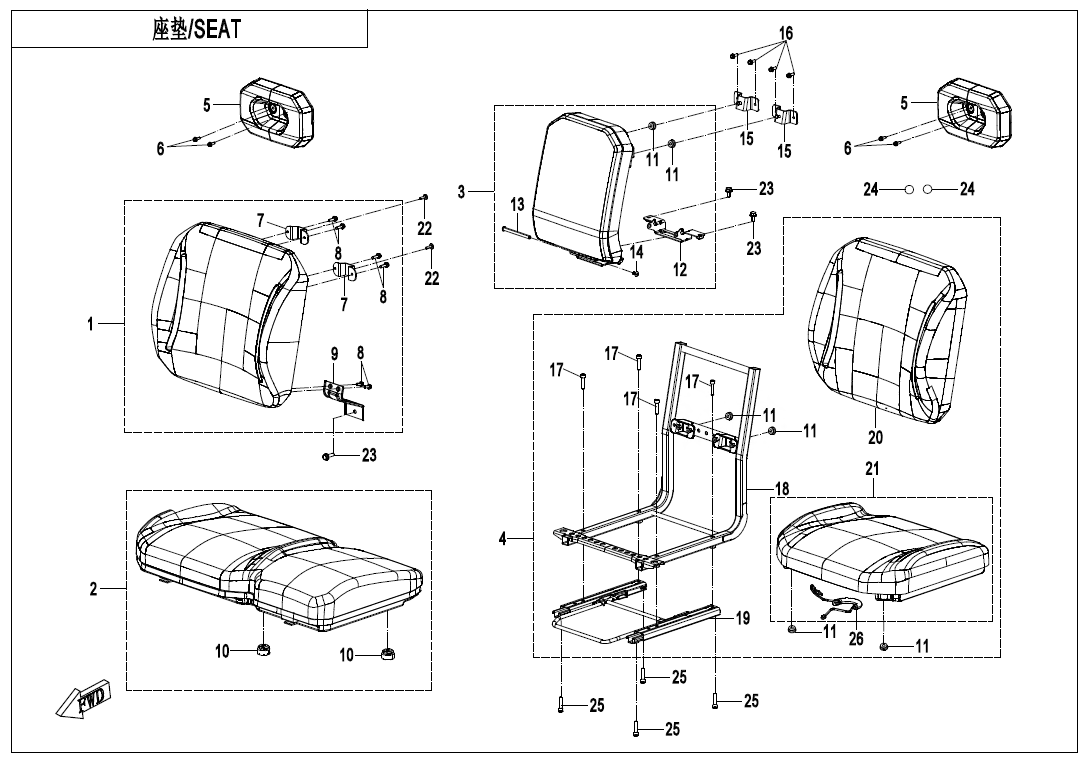

SEAT(WITH HEATING FUNCTION FOR ABS) - F13-B | 2025, UTV,

You are here

No.

P/N (SKU)

Part Name

Price

Your price

1

P/N (SKU): 5HYV-136000-7000

Part Name: PASSENGER BACKREST ASSY

Effective: 2025-03-24

Alternative parts:

Price: 72,30 € : 72,30 €

2

P/N (SKU): 5HYV-132000-9100

Part Name: HEATED PASSENGER SEAT ASSY

Effective: 2025-03-24

Alternative parts:

Price: 142,20 € : 142,20 €

3

P/N (SKU): 5HYV-134000-7000

Part Name: MIDDLE BACKREST ASSY

Effective: 2025-03-24

Alternative parts:

Price: 48,00 € : 48,00 €

4

P/N (SKU): 5HYV-131000-9100

Part Name: HEATED DRIVER SEAT ASSY

Effective: 2025-03-24

Alternative parts:

Price: 199,26 € : 199,26 €

5

P/N (SKU): 5ASV-134000-6000

Part Name: HEAD REST

Effective: 2025-03-24

Alternative parts:

Price: 66,00 € : 66,00 €

6

P/N (SKU): 5HY#-040002-1000

Part Name: BOLT M6x17

Effective: 2025-03-24

Alternative parts:

Price: 1,50 € : 1,50 €

7

P/N (SKU): 5HYV-133300-6001

Part Name: BACKREST UPPER BRACKET

Effective: 2025-03-24

Alternative parts:

Price: 3,50 € : 3,50 €

8

P/N (SKU): 30006-060016870

Part Name: BOLTM6x16

Effective: 2025-03-24

Alternative parts:

Specification: BLACK ZINC-PLATED

Price: 1,50 € : 1,50 €

9

P/N (SKU): 5HYV-133400-6001

Part Name: BACKREST LOWER BRACKET

Effective: 2025-03-24

Alternative parts:

Price: 4,00 € : 4,00 €

10

P/N (SKU): 7020-130001

Part Name: SEAT LOCATING RUBBER SLEEVE

Effective: 2025-03-24

Alternative parts:

Price: 2,50 € : 2,50 €

11

P/N (SKU): 5HY#-130002-1000

Part Name: BACKREST DAMPING MAT

Effective: 2025-03-24

Alternative parts:

Price: 1,50 € : 1,50 €

12

P/N (SKU): 5HYV-134100-6001

Part Name: MIDDLE BACKREST BRACKET

Effective: 2025-03-24

Alternative parts:

Price: 4,50 € : 4,50 €

13

P/N (SKU): 5HYV-134000-6000-24

Part Name: PIN SHAFT

Effective: 2025-03-24

Alternative parts:

Price: 3,00 € : 3,00 €

14

P/N (SKU): 5HYV-134000-6000-25

Part Name: TWIN SCREW ASSY

Effective: 2025-03-24

Alternative parts:

Specification: M6Ã104

Price: 1,50 € : 1,50 €

15

P/N (SKU): 5HY#-133001-1000

Part Name: REAR BRACKET

Effective: 2025-03-24

Alternative parts:

Price: 6,00 € : 6,00 €

16

P/N (SKU): 30006-060016870

Part Name: BOLTM6x16

Effective: 2025-03-24

Alternative parts:

Specification: BLACK ZINC-PLATED

Price: 1,50 € : 1,50 €

17

P/N (SKU): 30102-080035810

Part Name: SCREW

Effective: 2025-03-24

Alternative parts:

Specification: M8x35

Price: 1,50 € : 1,50 €

18

P/N (SKU): 5HYV-131310-6001

Part Name: DRIVER SEAT FRAME ASSY

Effective: 2025-03-24

Alternative parts:

Price: 77,00 € : 77,00 €

19

P/N (SKU): 5HYV-131320-6001

Part Name: SLIDE RAIL ASSY

Effective: 2025-03-24

Alternative parts:

Price: 46,00 € : 46,00 €

20

P/N (SKU): 5HYV-131300-7000

Part Name: DRIVER BACKREST ASSY

Effective: 2025-03-24

Alternative parts:

Price: 75,21 € : 75,21 €

21

P/N (SKU): 5HYV-131100-9100

Part Name: DRIVER HEATING SEAT ASSY

Effective: 2025-03-25

Alternative parts:

Price: 199,26 € : 199,26 €

22

P/N (SKU): 30006-060025870

Part Name: BOLTM6x25

Effective: 2025-03-24

Alternative parts:

Specification: BLACK ZINC-PLATED

Price: 1,50 € : 1,50 €

23

P/N (SKU): 30006-080016870

Part Name: BOLTM8x16

Effective: 2025-03-24

Alternative parts:

Specification: BLACK ZINC-PLATED

Price: 1,50 € : 1,50 €

24

P/N (SKU): 5HYV-190026-6000

Part Name: PLUG PATCH 1

Effective: 2025-03-24

Alternative parts:

Price: 2,00 € : 2,00 €

25

P/N (SKU): 30102-080025810

Part Name: SCREW

Effective: 2025-03-24

Alternative parts:

Specification: M8Ã25

Price: 1,50 € : 1,50 €

26

P/N (SKU): 5HYV-137110-7000

Part Name: PRESSURE SENSOR

Effective: 2025-03-24

Alternative parts:

Price: 20,00 € : 20,00 €
