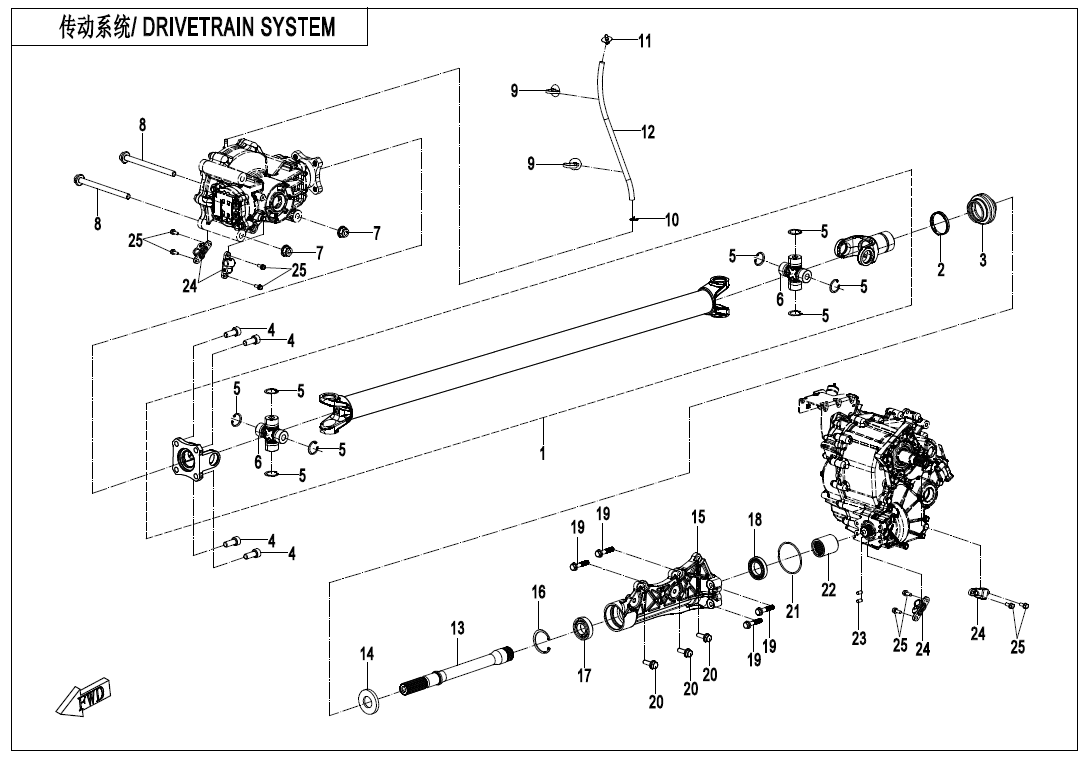

DRIVETRAIN SYSTEM - F30

DRIVETRAIN SYSTEM - F30

No.

1
P/N (SKU): 5HYV-290100-6000
Part Name: FRONT DRIVE SHAFT
Effective: 2024-07-05
Alternative parts: 5HYV-290100-6001
Price: 123,00 € : 123,00 €
-+
1
P/N (SKU): 5HYV-290100-6001
Part Name: FRONT DRIVE SHAFT
Effective: 2025-07-25
Alternative parts:
Price: 126,90 € : 126,90 €
-+
2
P/N (SKU): 9GQ0-290104
Part Name: BIG CLAMP
Effective: 2024-07-05
Alternative parts:
Price: 2,50 € : 2,50 €
-+
3
P/N (SKU): 5HYV-290101-6000
Part Name: SLEEVE
Effective: 2024-07-05
Alternative parts:
Price: 2,50 € : 2,50 €
-+
4
P/N (SKU): 30102-102025810
Part Name: SCREW
Effective: 2024-07-05
Alternative parts:
Specification: M10x1.25x25@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 30800-02505
Part Name: CIRCLIP FOR HOLE A-D25
Effective: 2024-07-05
Alternative parts:
Specification: 25
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 7020-290130-10000
Part Name: UNIVERSAL JOINT Dia 25x64
Effective: 2024-07-05
Alternative parts:
Specification: Dia 25x64
Price: 19,00 € : 19,00 €
-+
7
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2024-07-05
Alternative parts:
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
8
P/N (SKU): 30006-102130810
Part Name: BOLT
Effective: 2024-07-05
Alternative parts:
Specification: M10x1.25x130@COLOR ZINC TRIVALENT CHROMIUM
Price: 4,00 € : 4,00 €
-+
9
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2024-07-05
Alternative parts:
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 30601-108010
Part Name: CLAMP
Effective: 2024-07-05
Alternative parts:
Specification: A8@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 9AWV-315001-8000
Part Name: BREATHER HOSE CONNECTOR
Effective: 2024-07-05
Alternative parts:
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): 9010-310001
Part Name: FRONT GEAR CASE BREATHER HOSE
Effective: 2024-07-05
Alternative parts:
Price: 5,00 € : 5,00 €
-+
13
P/N (SKU): 0NYV-069609-1001
Part Name: OUTPUT SPLINE SHAFT
Effective: 2024-07-05
Alternative parts:
Price: 55,00 € : 55,00 €
-+
14
P/N (SKU): 0NYV-069607-1000
Part Name: OIL SEAL
Effective: 2024-07-05
Alternative parts:
Specification: 25×52×7
Price: 7,50 € : 7,50 €
-+
15
P/N (SKU): 0NYV-069601-1000
Part Name: GEARBOX BRACKET 1
Effective: 2024-07-05
Alternative parts: 0NYV-069601-1001
Price: 57,00 € : 57,00 €
-+
15
P/N (SKU): 0NYV-069601-1001
Part Name: GEARBOX BRACKET 1
Effective: 2025-04-21
Alternative parts:
Price: 66,00 € : 66,00 €
-+
16
P/N (SKU): 30803-04705
Part Name: CIRCLIP FOR HOLE 47
Effective: 2024-07-05
Alternative parts: 30800-04705
Price: 1,50 € : 1,50 €
17
P/N (SKU): 0NYV-069603-1000
Part Name: BEARING 6005
Effective: 2024-07-05
Alternative parts:
Price: 11,00 € : 11,00 €
-+
18
P/N (SKU): 0NYV-069604-1000
Part Name: BEARING 61906
Effective: 2024-07-05
Alternative parts:
Price: 18,00 € : 18,00 €
-+
19
P/N (SKU): 0110-060010-0030
Part Name: BOLT M8x38
Effective: 2024-07-05
Alternative parts:
Specification: M8X38
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): 0130-011114-00001
Part Name: BOLT
Effective: 2024-07-05
Alternative parts:
Price: 2,00 € : 2,00 €
-+
21
P/N (SKU): 0800-014003
Part Name: O-RING
Effective: 2024-07-05
Alternative parts:
Specification: 63x2.5
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 0NYV-069608-1000
Part Name: OUTPUT SPLINE SLEEVE
Effective: 2024-07-05
Alternative parts:
Price: 11,00 € : 11,00 €
-+
23
P/N (SKU): 01A0-056004
Part Name: DOWEL PIN Φ6×12
Effective: 2024-07-05
Alternative parts:
Specification: 6x12
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): Q850-330005
Part Name: MOUNTING BRACKET, ABS SENSOR
Effective: 2025-01-20
Alternative parts:
Price: 5,00 € : 5,00 €
-+
25
P/N (SKU): 30006-050012810
Part Name: BOLT
Effective: 2025-01-20
Alternative parts:
Specification: M5×12
Price: 1,50 € : 1,50 €
-+
