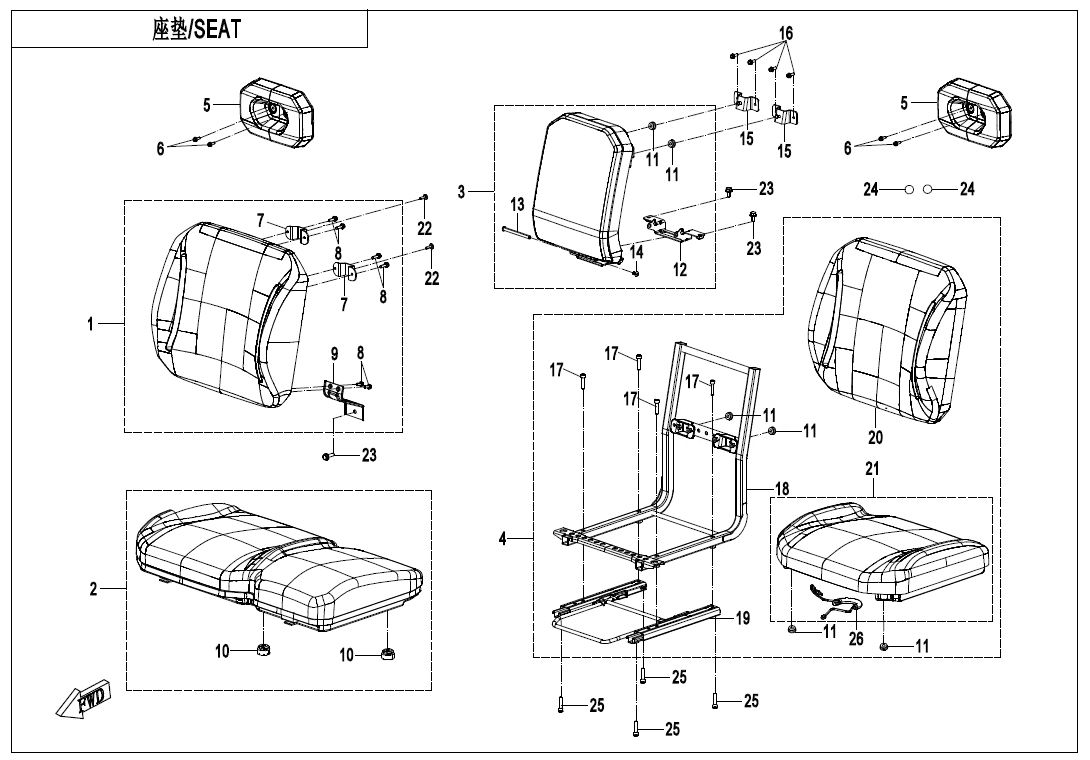

SEAT(BROWN LEATHER) - F13-V1

SEAT(BROWN LEATHER) - F13-V1

No.

1
P/N (SKU): 5HYV-136000-6000
Part Name: PASSENGER BACKREST ASSY
Effective: 2024-07-05
Alternative parts: 5HYV-136000-6001
Price: 67,00 € : 67,00 €
-+
1
P/N (SKU): 5HYV-136000-6001
Part Name: PASSENGER BACKREST ASSY
Effective: 2024-11-25
Alternative parts:
Price: 82,00 € : 82,00 €
-+
2
P/N (SKU): 5HYV-132000-6000
Part Name: PASSENGER SEAT ASSY
Effective: 2024-07-05
Alternative parts:
Price: 105,00 € : 105,00 €
-+
3
P/N (SKU): 5HYV-134000-6000
Part Name: MIDDEL BACKREST ASSY
Effective: 2024-07-05
Alternative parts:
Price: 66,00 € : 66,00 €
-+
3
P/N (SKU): 5HYV-134000-6001
Part Name: MIDDLE BACKREST ASSY
Effective: 2024-11-25
Alternative parts:
Price: 70,00 € : 70,00 €
-+
4
P/N (SKU): 5HYV-137000-7001
Part Name: DRIVER SEAT ASSY
Effective: 2024-07-05
Alternative parts:
Price: 175,00 € : 175,00 €
-+
5
P/N (SKU): 5ASV-134000-6000
Part Name: HEAD REST
Effective: 2024-07-05
Alternative parts:
Price: 66,00 € : 66,00 €
-+
6
P/N (SKU): 5HY#-040002-1000
Part Name: BOLT M6x17
Effective: 2024-07-05
Alternative parts:
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 5HYV-133300-6000
Part Name: BACKREST UPPER BRACKET
Effective: 2024-07-05
Alternative parts:
Price: 3,50 € : 3,50 €
-+
7
P/N (SKU): 5HYV-133300-6001
Part Name: BACKREST UPPER BRACKET
Effective: 2024-11-27
Alternative parts:
Price: 3,50 € : 3,50 €
-+
8
P/N (SKU): 0010-023010
Part Name: HEX FLANGE BOLT
Effective: 2024-07-05
Alternative parts: 0010-023010-0010
Specification: M6x16
Price: 1,50 € : 1,50 €
9
P/N (SKU): 5HYV-133400-6000
Part Name: BACKREST LOWER BRACKET
Effective: 2024-07-05
Alternative parts:
Price: 6,00 € : 6,00 €
-+
10
P/N (SKU): 7020-130001
Part Name: SEAT LOCATING RUBBER SLEEVE
Effective: 2024-07-05
Alternative parts:
Price: 2,50 € : 2,50 €
-+
11
P/N (SKU): 5HY#-130002-1000
Part Name: BACKREST DAMPING MAT
Effective: 2024-07-05
Alternative parts:
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 5HYV-134100-6000
Part Name: MIDDLE BACKREST BRACKET
Effective: 2024-07-05
Alternative parts:
Price: 4,00 € : 4,00 €
-+
12
P/N (SKU): 5HYV-134100-6001
Part Name: MIDDLE BACKREST BRACKET
Effective: 2024-11-25
Alternative parts:
Price: 4,50 € : 4,50 €
-+
13
P/N (SKU): 5HYV-134000-6000-24
Part Name: PIN SHAFT
Effective: 2024-07-05
Alternative parts:
Price: 3,00 € : 3,00 €
-+
14
P/N (SKU): 5HYV-134000-6000-25
Part Name: TWIN SCREW ASSY
Effective: 2024-07-05
Alternative parts:
Specification: M6×104
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 5HY#-133001-1000
Part Name: REAR BRACKET
Effective: 2024-07-05
Alternative parts:
Price: 6,00 € : 6,00 €
-+
16
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2024-07-05
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 30102-080035810
Part Name: SCREW
Effective: 2024-07-05
Alternative parts:
Specification: M8x35
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 5HYV-131310-6000
Part Name: DRIVER SEAT FRAME ASSY
Effective: 2024-07-05
Alternative parts:
Price: 70,00 € : 70,00 €
-+
19
P/N (SKU): 5HYV-131320-6000
Part Name: SLIDE RAIL ASSY
Effective: 2024-07-05
Alternative parts:
Price: 47,00 € : 47,00 €
-+
20
P/N (SKU): 5HYV-131400-6000
Part Name: DRIVER BACK CUSHION ASSY
Effective: 2024-07-05
Alternative parts:
Price: 60,00 € : 60,00 €
-+
21
P/N (SKU): 5HYV-137100-7001
Part Name: DRIVER SEAT ASSY
Effective: 2024-07-05
Alternative parts:
Price: 98,00 € : 98,00 €
-+
22
P/N (SKU): 30102-060025870
Part Name: SCREW
Effective: 2024-07-05
Alternative parts:
Specification: M6x25
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2024-07-05
Alternative parts:
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 5HYV-190026-6000
Part Name: PLUG PATCH 1
Effective: 2024-07-05
Alternative parts:
Price: 2,00 € : 2,00 €
-+
25
P/N (SKU): 30102-080025810
Part Name: SCREW
Effective: 2024-07-05
Alternative parts:
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 5HYV-137110-7000
Part Name: PRESSURE SENSOR
Effective: 2024-08-30
Alternative parts:
Price: 20,00 € : 20,00 €
-+
