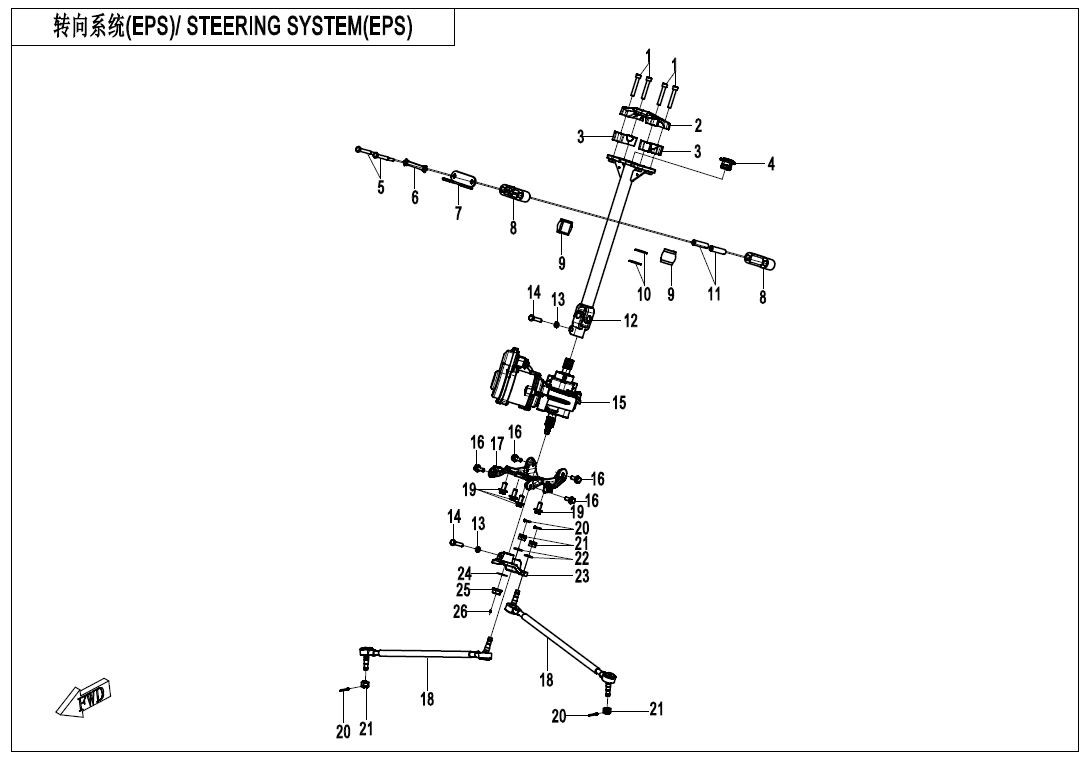

STEERING SYSTEM(EPS) - F10-2-V3

STEERING SYSTEM(EPS) - F10-2-V3

No.

1
P/N (SKU): 30102-080050810
Part Name: INNER HEX SCREW
Effective: 2025-09-08
Alternative parts: 30102-080050840
Specification: M8x50@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
2
P/N (SKU): 9AWV-100001-8001
Part Name: HANDLEBAR UPPER PRESS COVER
Effective: 2025-09-08
Alternative parts:
Price: 37,00 € : 37,00 €
-+
3
P/N (SKU): 9AWV-100003-8001
Part Name: HANDLEBAR LOWER PRESS COVER
Effective: 2025-09-08
Alternative parts:
Price: 37,00 € : 37,00 €
-+
4
P/N (SKU): 9AWV-100004-8000
Part Name: STEERING SHAFT DECO COVER
Effective: 2025-09-08
Alternative parts:
Price: 2,00 € : 2,00 €
-+
5
P/N (SKU): 30003-080075810
Part Name: BOLT M8x75
Effective: 2025-09-08
Alternative parts:
Specification: M8x75
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 7020-100603
Part Name: LOCKING PIECE
Effective: 2025-09-08
Alternative parts:
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 7020-100610-10000
Part Name: LINKING PLATE ASSY
Effective: 2025-09-08
Alternative parts:
Price: 3,00 € : 3,00 €
-+
8
P/N (SKU): 7020-100601-00001
Part Name: OUTER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2025-09-08
Alternative parts:
Price: 5,00 € : 5,00 €
-+
9
P/N (SKU): 7020-100602
Part Name: INNER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2025-09-08
Alternative parts:
Price: 9,00 € : 9,00 €
-+
10
P/N (SKU): 30502-032800N
Part Name: O-RING
Effective: 2025-09-08
Alternative parts:
Specification: 32x1.8
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 7020-100604-00001
Part Name: BUSHING
Effective: 2025-09-08
Alternative parts:
Price: 3,00 € : 3,00 €
-+
12
P/N (SKU): 9AWV-102100-8001
Part Name: STEERING SHAFT ASSY
Effective: 2025-09-08
Alternative parts:
Price: 48,40 € : 48,40 €
-+
13
P/N (SKU): 30303-080112
Part Name: WASHER
Effective: 2025-09-08
Alternative parts:
Specification: φ8@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 9CR6-102003
Part Name: BOLT M8x35
Effective: 2025-09-08
Alternative parts:
Specification: M8x35
Price: 3,00 € : 3,00 €
-+
15
P/N (SKU): 9AWV-150800-1501
Part Name: EPS ASSY
Effective: 2025-09-08
Alternative parts:
Price: 568,75 € : 568,75 €
-+
16
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2025-09-08
Alternative parts:
Specification: M8x20@COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 9AWV-100002-8000
Part Name: MOUNTING PLATE, STEERING SEAT
Effective: 2025-09-08
Alternative parts:
Price: 60,00 € : 60,00 €
-+
18
P/N (SKU): 9AWV-104100-8000-M2
Part Name: STEERING ROD ASSY
Effective: 2025-09-08
Alternative parts: 9AWV-104100-8001-M2
Price: 69,00 € : 69,00 €
-+
19
P/N (SKU): 30006-100020810
Part Name: BOLT M10x20
Effective: 2025-09-08
Alternative parts: 30006-103020810
Specification: M10x20
Price: 2,00 € : 2,00 €
20
P/N (SKU): 30903-0252010
Part Name: COTTER PIN
Effective: 2025-09-08
Alternative parts:
Specification: 2.5x20
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2025-09-08
Alternative parts:
Specification: M10x1.25
Price: 2,00 € : 2,00 €
-+
22
P/N (SKU): 30306-100112
Part Name: WASHER
Effective: 2025-09-08
Alternative parts:
Specification: φ10
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 9AWA-100001-20000
Part Name: STEERING ARM
Effective: 2025-09-08
Alternative parts:
Price: 21,00 € : 21,00 €
-+
24
P/N (SKU): 30306-140112
Part Name: WASHER
Effective: 2025-09-08
Alternative parts:
Specification: φ14
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 30204-122810
Part Name: NUT
Effective: 2025-09-08
Alternative parts:
Specification: M12×1.25
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 30903-0201610
Part Name: COTTER PIN
Effective: 2025-09-08
Alternative parts:
Specification: φ2×16
Price: 1,50 € : 1,50 €
-+
