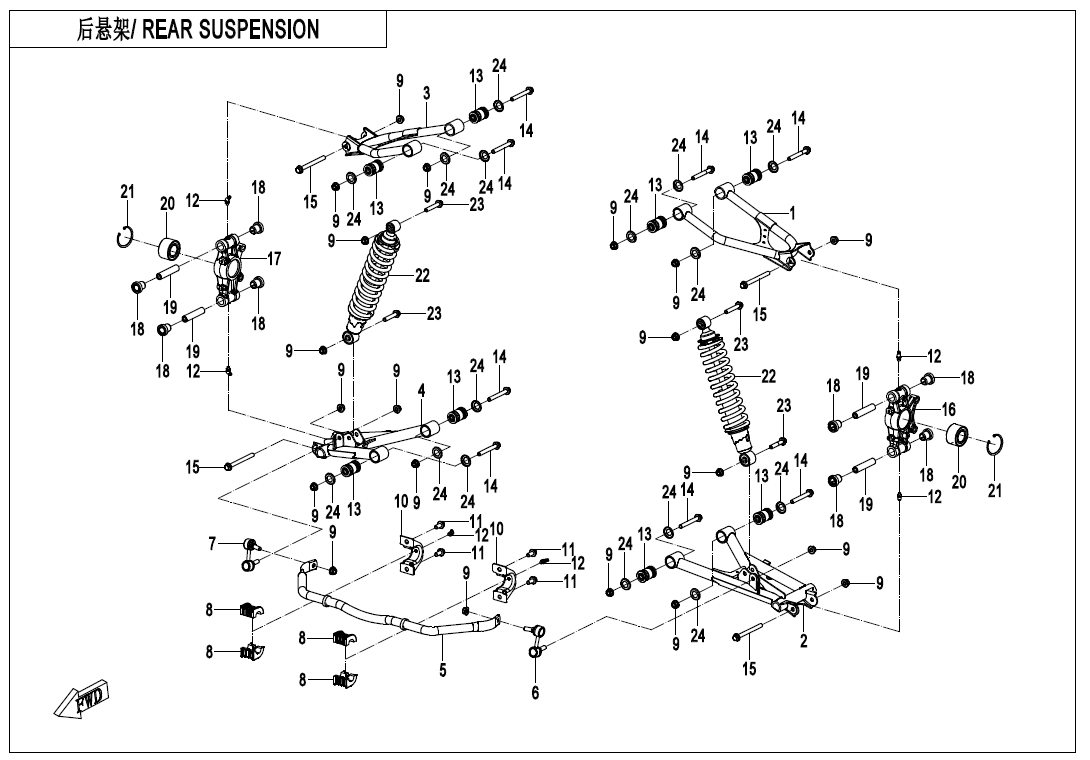

REAR SUSPENSION - F06

REAR SUSPENSION - F06

No.

1
P/N (SKU): 9DQV-060110-1100-0BP00
Part Name: REAR LH UPPER SWING ARM ASSY
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 0,00 € : 0,00 €
2
P/N (SKU): 9DQV-060210-1100-0BP00
Part Name: REAR LH LOWER SWING ARM ASSY
Effective: 2026-02-06
Remarks: null
Alternative parts: 9DQV-060210-1101-0BP00
Specification: MAUD SPIRIT BLACK
Price: 0,00 € : 0,00 €
3
P/N (SKU): 9DQV-060310-1100-0BP00
Part Name: REAR RH UPPER SWING ARM ASSY
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 0,00 € : 0,00 €
4
P/N (SKU): 9DQV-060410-1100-0BP00
Part Name: REAR RH LOWER SWING ARM ASSY
Effective: 2026-02-06
Remarks: null
Alternative parts: 9DQV-060410-1101-0BP00
Specification: MAUD SPIRIT BLACK
Price: 0,00 € : 0,00 €
5
P/N (SKU): 9DQV-060610-1101
Part Name: REAR SWAY BAR ASSY
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
6
P/N (SKU): 9DQV-060700-3000-M2
Part Name: LH BALL PIN ASSY
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Price: 22,00 € : 22,00 €
-+
7
P/N (SKU): 9DQV-060800-3000-M2
Part Name: RH BALL PIN ASSY
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Price: 22,00 € : 22,00 €
-+
8
P/N (SKU): 7000-060003
Part Name: SWAY BAR SEAT
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
9
P/N (SKU): 30204-102110
Part Name: NUT
Effective: 2026-02-06
Remarks: null
Alternative parts: 30204-102810
Specification: M10×1.25
Price: 1,50 € : 1,50 €
10
P/N (SKU): 5GYV-050620-1001
Part Name: SWAY BAR PRESS COVER
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: null
Price: 5,39 € : 5,39 €
11
P/N (SKU): 30006-102020810
Part Name: BOLT M10x1.25x20
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: M10x1.25x20
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): 3121401
Part Name: OIL CUP
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: 45 DEGREE
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 9DQV-050900-3000
Part Name: CUSHION SLEEVE ASSY
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
-+
14
P/N (SKU): 30006-102075810
Part Name: BOLT M10x1.25x75
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: GB5789_M10x1.25x75
Price: 2,50 € : 2,50 €
-+
15
P/N (SKU): 30006-102105110
Part Name: BOLT
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
16
P/N (SKU): 7020-060701
Part Name: LH REAR BEARING CARRIER
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Price: 81,00 € : 81,00 €
17
P/N (SKU): 7020-060801
Part Name: RH REAR BEARING CARRIER
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Price: 81,00 € : 81,00 €
18
P/N (SKU): 5ASV-050002-6001
Part Name: SLEEVE
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
-+
19
P/N (SKU): 7020-060702-00001
Part Name: REAR WHEEL SHAFT BRACKET MIDDLE BUSHING
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
20
P/N (SKU): 9GQ0-050710
Part Name: BEARING, HUB
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Price: 32,00 € : 32,00 €
-+
21
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: BLACK
Price: 2,50 € : 2,50 €
-+
22
P/N (SKU): 9DQV-060500-1100-0RH00
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2026-02-06
Remarks: null
Alternative parts: 9DQV-060500-1101-0RH00
Specification: FORCE RED
Price: 0,00 € : 0,00 €
23
P/N (SKU): 30006-102055810
Part Name: BOLT
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: M10×1.25×55
Price: 2,00 € : 2,00 €
24
P/N (SKU): 9DSV-050900-6K00
Part Name: CUSHION SLEEVE CAP
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
