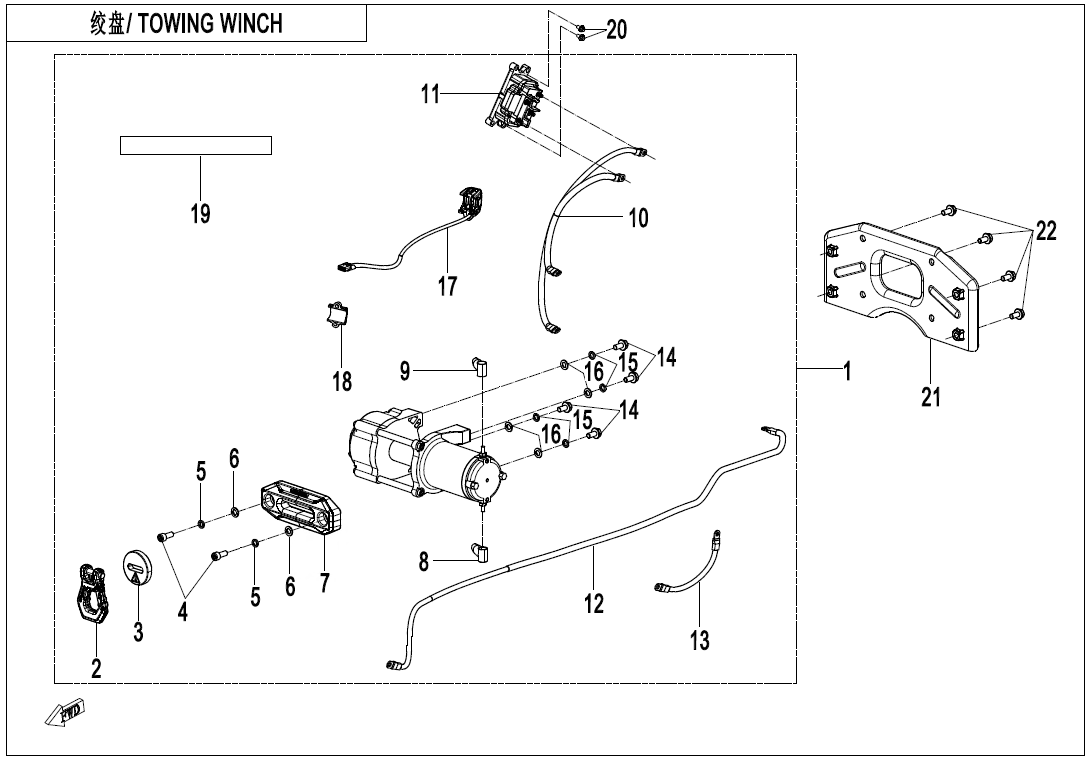

TOWING WINCH - F15-2-V2

TOWING WINCH - F15-2-V2

No.

1
P/N (SKU): 9DQV-150700-1102
Part Name: WINCH ASSY
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: 2500Lbs
Price: 0,00 € : 0,00 €
2
P/N (SKU): 9AYV-150702-8500
Part Name: WINCH HOOK
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: null
Price: 14,00 € : 14,00 €
3
P/N (SKU): 5BYV-150703-6000
Part Name: WINCH RUBBER DAMPER
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
-+
4
P/N (SKU): 30102-102030870
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: M10x1.25x30@BLACK ZINC-PLATED
Price: 2,00 € : 2,00 €
5
P/N (SKU): 9AWV-150700-8000-21
Part Name: GASKET
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
6
P/N (SKU): 9AWV-150700-8000-22
Part Name: PLAIN WASHER
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
7
P/N (SKU): 9AWV-150701-8000
Part Name: HOLDER
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: null
Price: 37,00 € : 37,00 €
-+
8
P/N (SKU): 9DQV-150700-3000-20
Part Name: WINCH MOTOR POSITIVE DUST SLEEVE
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
9
P/N (SKU): 9DQV-150700-3000-21
Part Name: WINCH MOTOR NEGATIVE DUST SLEEVE
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
10
P/N (SKU): 9DQV-150760-1100
Part Name: WINCH MOTOR CABLE
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
11
P/N (SKU): 5HYV-150720-1C00
Part Name: WINCH CONTROL RELAY
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: null
Price: 91,00 € : 91,00 €
-+
12
P/N (SKU): 9DQV-150770-1100
Part Name: WINCH POSITIVE CABLE
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
13
P/N (SKU): 9DQV-150780-1100
Part Name: WINCH NEGATIVE CABLE
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
14
P/N (SKU): 30006-080025810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 30303-080112
Part Name: SPRING COIL SPRING LOCK WASHERS
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: φ8@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 30304-080420
Part Name: PLAIN WASHERS
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
17
P/N (SKU): 9DQV-150730-1100
Part Name: WINCH CONTROL SWITCH
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
18
P/N (SKU): 9DQV-150704-1102
Part Name: HAND BRAKE MASTER CYLINDER PRESS CAP
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
19
P/N (SKU): 5HYV-150710-1C00-22
Part Name: WINCH STRAP
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
20
P/N (SKU): 30006-060020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2026-07-10
Remarks: null
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,50 € : 1,50 €
21
P/N (SKU): 9DQV-402100-1102
Part Name: WINCH BRACKET
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Price: 0,00 € : 0,00 €
22
P/N (SKU): 30006-080016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2026-07-10
Remarks: null
Alternative parts: null
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
