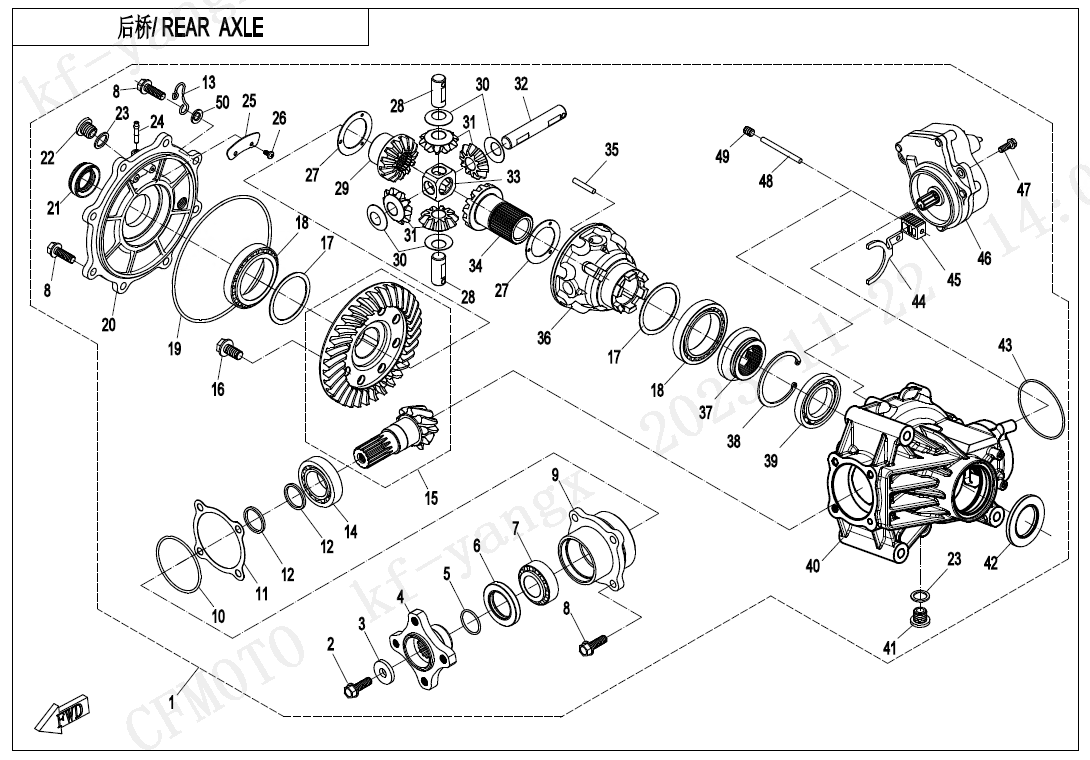

REAR AXLE(WITH DIFFERENTIAL) - F33-B-V2

REAR AXLE(WITH DIFFERENTIAL) - F33-B-V2

No.

01
P/N (SKU): Q820-330000-20002
Part Name: REAR GEAR CASE ASSY
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 916,00 € : 916,00 €
02
P/N (SKU): Q860-331002
Part Name: BOLT
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: M12×1.25×25
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 0180-331008-00001
Part Name: GASKET
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 13x27.5x4
Price: 2,00 € : 2,00 €
-+
04
P/N (SKU): Q850-331002
Part Name: COUPLER
Effective: 2025-05-29
Remarks: null
Alternative parts: Q850-331002-10000
Price: 38,00 € : 38,00 €
-+
05
P/N (SKU): 0800-062205
Part Name: O-RING
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 25x2
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 0800-062204
Part Name: OIL SEAL
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 35x50x7
Price: 6,50 € : 6,50 €
-+
07
P/N (SKU): 30409-02500
Part Name: TAPERED ROLLER BEARING
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: GB/T297 33005_25×47×17
Price: 19,00 € : 19,00 €
-+
08
P/N (SKU): 0110-060011-0010
Part Name: BOLT M8×28
Effective: 2025-05-29
Remarks: null
Alternative parts: 0JYA-062104
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
09
P/N (SKU): Q830-311002-00001
Part Name: BEARING SEAT
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 21,00 € : 21,00 €
-+
10
P/N (SKU): Q830-310006-10000
Part Name: O-RING
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 55×2.5
Price: 3,00 € : 3,00 €
-+
11
P/N (SKU): Q830-310023-00200
Part Name: ADJUSTING WASHER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=0.30
Price: 2,00 € : 2,00 €
-+
11
P/N (SKU): Q830-310023-00100
Part Name: ADJUSTING WASHER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=0.20
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): Q830-311003-00001-00400
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=2.40
Price: 1,80 € : 1,80 €
12
P/N (SKU): Q830-311003-00001-00500
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=2.42
Price: 1,80 € : 1,80 €
12
P/N (SKU): Q830-311003-00001-00600
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=2.44
Price: 1,80 € : 1,80 €
12
P/N (SKU): Q830-311003-00001-00700
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=2.46
Price: 1,80 € : 1,80 €
12
P/N (SKU): Q830-311003-00001-00800
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=2.48
Price: 1,80 € : 1,80 €
12
P/N (SKU): Q830-311003-00001-00900
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=2.50
Price: 1,80 € : 1,80 €
12
P/N (SKU): Q830-311003-00001-01000
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=2.60
Price: 1,80 € : 1,80 €
12
P/N (SKU): Q830-311003-00001-01100
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=2.70
Price: 1,80 € : 1,80 €
12
P/N (SKU): Q830-311003-00001-01200
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=2.80
Price: 1,80 € : 1,80 €
12
P/N (SKU): Q830-311003-00001-01300
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=2.90
Price: 1,80 € : 1,80 €
12
P/N (SKU): Q830-311003-00001-01400
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=3.00
Price: 1,80 € : 1,80 €
12
P/N (SKU): Q830-311003-00001-00100
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=2.10
Price: 1,80 € : 1,80 €
12
P/N (SKU): Q830-311003-00001-00200
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=2.20
Price: 1,80 € : 1,80 €
12
P/N (SKU): Q830-311003-00001-00300
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=2.30
Price: 1,80 € : 1,80 €
13
P/N (SKU): 9CRB-082001
Part Name: REAR RH PARKING CABLE CLIP
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
14
P/N (SKU): 30409-03000
Part Name: TAPERED ROLLER BEARING
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: GB/T297 32006_30×55×17
Price: 17,00 € : 17,00 €
-+
15
P/N (SKU): Q820-3300C0
Part Name: REAR GEAR CASE BEVEL GEAR ASSY
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 144,00 € : 144,00 €
-+
16
P/N (SKU): 0181-313100-0010
Part Name: BOLT ASSY M10x1.25x22
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): Q820-330003-00900
Part Name: ADJUSTING WASHER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 61×50.5@T=1.00
Price: 2,00 € : 2,00 €
-+
17
P/N (SKU): Q820-330003-00800
Part Name: ADJUSTING WASHER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 61×50.5@T=0.98
Price: 2,00 € : 2,00 €
-+
17
P/N (SKU): Q820-330003-00700
Part Name: ADJUSTING WASHER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 61×50.5@T=0.96
Price: 2,00 € : 2,00 €
-+
17
P/N (SKU): Q820-330003-00600
Part Name: ADJUSTING WASHER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 61×50.5@T=0.94
Price: 2,00 € : 2,00 €
-+
17
P/N (SKU): Q820-330003-00500
Part Name: ADJUSTING WASHER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 61×50.5@T=0.92
Price: 2,00 € : 2,00 €
-+
17
P/N (SKU): Q820-330003-00400
Part Name: ADJUSTING WASHER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 61×50.5@T=0.90
Price: 2,00 € : 2,00 €
-+
17
P/N (SKU): Q820-330003-00300
Part Name: ADJUSTING WASHER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 61×50.5@T=0.50
Price: 2,00 € : 2,00 €
-+
17
P/N (SKU): Q820-330003-00200
Part Name: ADJUSTING WASHER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 61×50.5@T=0.30
Price: 2,00 € : 2,00 €
-+
17
P/N (SKU): Q820-330003-00100
Part Name: ADJUSTING WASHER 61×50.5
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=0.10
Price: 2,00 € : 2,00 €
-+
18
P/N (SKU): 30409-05000
Part Name: TAPERED ROLLER BEARING
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: GB/T297 32910 50×72×15
Price: 48,00 € : 48,00 €
-+
19
P/N (SKU): 0180-310005
Part Name: O-RING
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 141×2.4
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): Q820-330002-00001
Part Name: COVER, REAR GEAR CASE
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 31,00 € : 31,00 €
-+
21
P/N (SKU): 0180-311001
Part Name: OIL SEAL
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 24x38x8
Price: 4,50 € : 4,50 €
-+
22
P/N (SKU): 0180-021008-00001
Part Name: BOLT
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: M14×1.25×12
Price: 2,00 € : 2,00 €
-+
23
P/N (SKU): 0180-011006
Part Name: GASKET 14
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 14
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 0180-311004-0020
Part Name: BREATHER HOSE JOINT
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
25
P/N (SKU): Q820-330007-10000
Part Name: OIL BAFFLE
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
26
P/N (SKU): 30105-040008410
Part Name: SCREW M4×8
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: M4x8@TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
27
P/N (SKU): Q820-333003-00200
Part Name: GASKET,SEMIAXIS GEAR
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=1.2
Price: 2,00 € : 2,00 €
-+
27
P/N (SKU): Q820-333003-00100
Part Name: GASKET,SEMIAXIS GEAR
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: T=1.0
Price: 2,00 € : 2,00 €
-+
28
P/N (SKU): Q820-333005
Part Name: SHORT PLANET GEAR SHAFT
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
29
P/N (SKU): Q820-333007
Part Name: RH CV SHAFT GEAR
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 28,00 € : 28,00 €
30
P/N (SKU): 0181-313011
Part Name: WEARING PAD
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
31
P/N (SKU): 0180-313003-00004
Part Name: DIFFERENTIAL CENTER GEAR
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: SURFACE PEENING TREATMENT, THE INNER HOLE TOLERANCE INCREASING
Price: 12,00 € : 12,00 €
-+
32
P/N (SKU): Q820-333006
Part Name: PLANET GEAR SHAFT
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 7,50 € : 7,50 €
-+
33
P/N (SKU): Q820-333008
Part Name: CROSS BUSHING
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
34
P/N (SKU): Q820-333001
Part Name: GEAR, LH SHAFT
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 41,00 € : 41,00 €
-+
35
P/N (SKU): 30906-0503000
Part Name: PIN 5×30
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 5x30
Price: 1,50 € : 1,50 €
-+
36
P/N (SKU): Q820-333002-00001
Part Name: DIFFERENTIAL HOUSING
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 43,00 € : 43,00 €
37
P/N (SKU): Q820-330006
Part Name: RECTANGLUAR SLEEVE
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 15,00 € : 15,00 €
38
P/N (SKU): 30800-06200
Part Name: CIRCLIP FOR HOLE 62
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 62
Price: 1,50 € : 1,50 €
-+
39
P/N (SKU): 30400-03501
Part Name: BEARING
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 16007
Price: 13,00 € : 13,00 €
-+
40
P/N (SKU): Q820-330001-00003
Part Name: REAR GEAR CASE
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 78,00 € : 78,00 €
41
P/N (SKU): 0180-332100
Part Name: MAGNETIC DRAIN BOLT M14×1.25×12
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: M14x1.25x12
Price: 5,50 € : 5,50 €
-+
42
P/N (SKU): 0120-061000
Part Name: OIL SEAL 35x58x5
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 35x58x5
Price: 3,00 € : 3,00 €
-+
43
P/N (SKU): Q830-310012-10000
Part Name: O-SEAL RING 67.5×2
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 67.5x2
Price: 2,50 € : 2,50 €
-+
44
P/N (SKU): Q820-330005
Part Name: SHIFT FORK
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
45
P/N (SKU): Q830-310004
Part Name: RACK
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
46
P/N (SKU): Q830-314000-20000
Part Name: MOTOR ASSY, FRONT GEAR CASE
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: Kaidi PLUG
Price: 84,00 € : 84,00 €
-+
47
P/N (SKU): 0010-023008-00001
Part Name: BOLT
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
48
P/N (SKU): Q820-330004
Part Name: PIN SHAFT
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
49
P/N (SKU): 30130-080010810
Part Name: SCREW
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: M8x10@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
50
P/N (SKU): 30306-080112
Part Name: WASHER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: φ8
Price: 1,50 € : 1,50 €
-+
