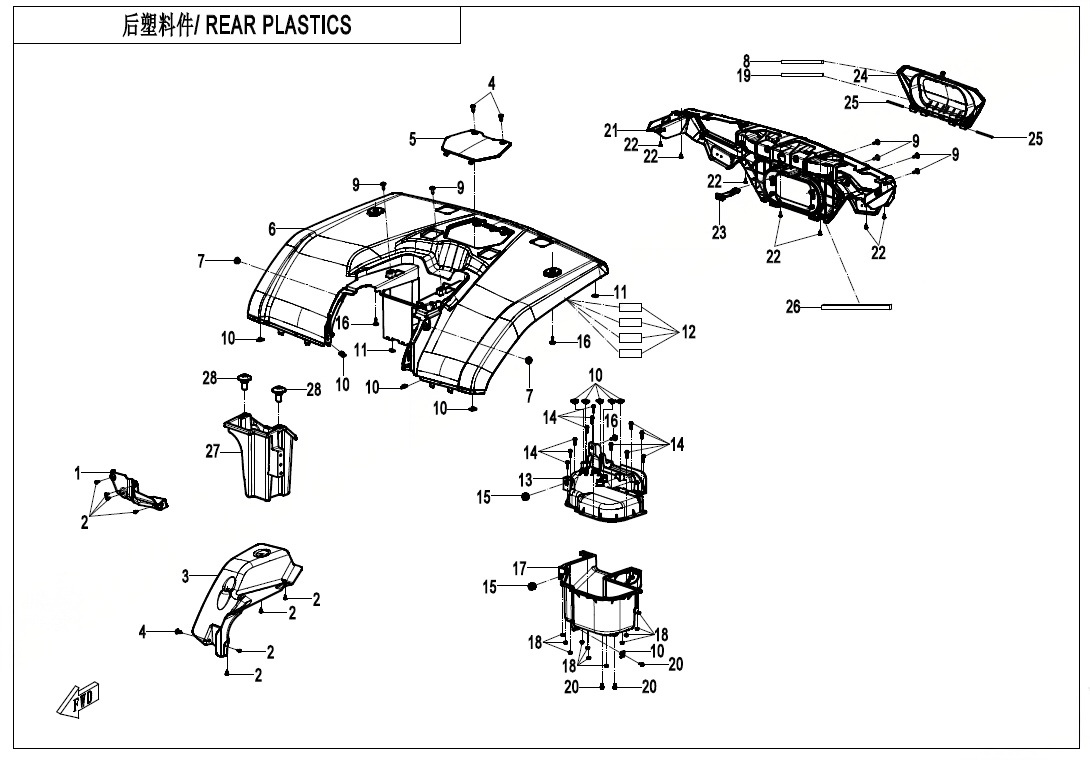

REAR PLASTICS - F04-5

REAR PLASTICS - F04-5

No.

1
P/N (SKU): 9DQV-043024-3000
Part Name: TAIL LIGHT PANEL HEAT INSULATOR
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
2
P/N (SKU): 30110-421130010
Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS
Effective: 2025-05-29
Remarks: null
Alternative parts: 30110-420130070
Specification: ST4.2x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
3
P/N (SKU): 9DQV-043014-3001
Part Name: HEAT INSULATOR, REAR FENDER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 24,00 € : 24,00 €
-+
4
P/N (SKU): 9060-040310
Part Name: CLAMP ASSY
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
5
P/N (SKU): 9DQV-043012-3000-0RM00
Part Name: REAR TOP COVER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: MAGMA RED
Price: 12,00 € : 12,00 €
5
P/N (SKU): 9DQV-043012-3000-0K100
Part Name: REAR TOP COVER
Effective: 2025-05-29
Alternative parts: null
Specification: TRUE TIMBER KANATI
Price: 50,00 € : 50,00 €
5
P/N (SKU): 9DQV-043012-3000-0YD00
Part Name: REAR TOP COVER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: LAVA ORANGE
Price: 12,00 € : 12,00 €
-+
5
P/N (SKU): 9DQV-043012-3000-0P800
Part Name: REAR TOP COVER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: HUNTER GREEN
Price: 12,00 € : 12,00 €
-+
5
P/N (SKU): 9DQV-043012-3000-0BM00
Part Name: REAR TOP COVER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: NEBULA BLACK
Price: 11,00 € : 11,00 €
-+
5
P/N (SKU): 9DQV-043012-3000-0PG02
Part Name: REAR TOP COVER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: JET BLACK
Price: 6,00 € : 6,00 €
6
P/N (SKU): 9DQV-043011-3000-0RM00
Part Name: REAR FENDER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: MAGMA RED
Price: 284,00 € : 284,00 €
-+
6
P/N (SKU): 9DQV-043011-3000-0K100
Part Name: REAR FENDER
Effective: 2025-05-29
Alternative parts: null
Specification: TRUE TIMBER KANATI
Price: 180,75 € : 180,75 €
6
P/N (SKU): 9DQV-043011-3000-0YD00
Part Name: REAR FENDER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: LAVA ORANGE
Price: 223,00 € : 223,00 €
-+
6
P/N (SKU): 9DQV-043011-3000-0P800
Part Name: REAR FENDER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: HUNTER GREEN
Price: 114,00 € : 114,00 €
6
P/N (SKU): 9DQV-043011-3000-0BM00
Part Name: REAR FENDER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: NEBULA BLACK
Price: 178,00 € : 178,00 €
-+
6
P/N (SKU): 9DQV-043011-3000-0PG02
Part Name: REAR FENDER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: JET BLACK
Price: 136,00 € : 136,00 €
-+
7
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
8
P/N (SKU): 9DQV-043027-3000
Part Name: TAIL BOX SEAL STRAP 1
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
9
P/N (SKU): 5BWV-040008-5000
Part Name: INNER HEX BOLT M6x20
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 8030-040800-00001
Part Name: NUT CLIP M6
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 8080-000002
Part Name: CLAMP
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: ST4.8
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): TFQ004
Part Name: HEAT INSULATION SCROLL PAPER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 50x0.062m
Price: 3,00 € : 3,00 €
13
P/N (SKU): 9DQV-044014-3000
Part Name: TAIL BOX UPPER COVER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 18,00 € : 18,00 €
14
P/N (SKU): 30109-050020410
Part Name: SMALL PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2025-05-29
Remarks: null
Alternative parts: 30105-050020410
Specification: M5x20
Price: 2,00 € : 2,00 €
15
P/N (SKU): 5020-031001
Part Name: RUBBER SLEEVE, FRONT LICENSE BRACKET
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
16
P/N (SKU): 5BWV-040007-5000
Part Name: BOLT
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 9DQV-044015-3000
Part Name: TAIL BOX LOWER COVER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 21,00 € : 21,00 €
-+
18
P/N (SKU): 30204-050810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: M5
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 9DQV-043028-3000
Part Name: TAIL BOX SEAL STRAP 2
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
20
P/N (SKU): 30006-060012870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 9DQV-043021-3000
Part Name: TAIL LIGHT PANEL
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 140,00 € : 140,00 €
-+
22
P/N (SKU): 30110-481130010
Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS
Effective: 2025-05-29
Remarks: null
Alternative parts: 30110-480130010
Specification: ST4.8x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 9DQV-042023-3000
Part Name: TIRE STRAP
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
-+
24
P/N (SKU): 9DQV-043013-3000
Part Name: TAIL BOX COVER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 28,00 € : 28,00 €
-+
25
P/N (SKU): 9DQV-040023-3000
Part Name: TAIL BOX MAIN SHAFT
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 2,50 € : 2,50 €
26
P/N (SKU): 9DQV-043026-3000
Part Name: TAIL LIGHT PANEL RUBBER STRAP
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
-+
27
P/N (SKU): 9CQV-044025-3000
Part Name: TOOL BOX
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
28
P/N (SKU): 5BWV-040001-5000
Part Name: INNER HEX BOLT
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
