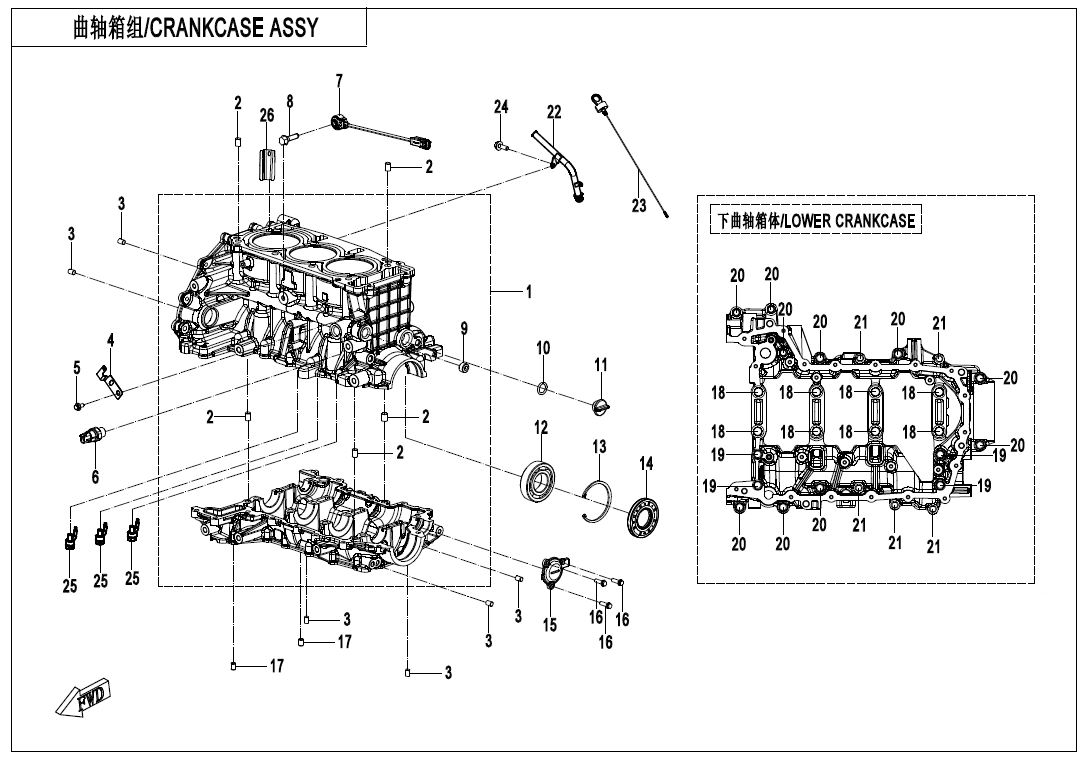

CRANKCASE ASSY - E01-1

CRANKCASE ASSY - E01-1

No.

1
P/N (SKU): 0NYV-01FZ01-4000
Part Name: CRANKCASE ASSY
Effective: 2025-11-04
Alternative parts: 0NYV-01FZ01-4002
Specification: null
Price: 0,00 € : 0,00 €
2
P/N (SKU): 30410-01000
Part Name: CYLINDRICAL ROLLERS
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: 10X14
Price: 2,00 € : 2,00 €
3
P/N (SKU): 30410-00800
Part Name: CYLINDRICAL ROLLERS
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
4
P/N (SKU): 0NYV-011006-3000
Part Name: CABLE BRACKET 3
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
5
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-11-04
Remarks: null
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
6
P/N (SKU): 0SQV-012400-1000
Part Name: OIL PRESSURE SWITCH
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: null
Price: 13,00 € : 13,00 €
-+
7
P/N (SKU): 0NYV-170300-1000
Part Name: KNOCK CONTROL SENSOR
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: null
Price: 30,00 € : 30,00 €
-+
8
P/N (SKU): 0GR0-024003-00001
Part Name: BOLT M8x32
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
9
P/N (SKU): 0700-012105-00001
Part Name: PLUG, MAIN OIL RAIL
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
10
P/N (SKU): 0A70-013006
Part Name: O-SEAL RING 16.8×3.1
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: 16.8x3.1
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 0A70-013005
Part Name: OIL FILLING PORT BOLT PLUG
Effective: 2025-11-04
Remarks: null
Alternative parts: 0A70-013005-00001
Price: 2,00 € : 2,00 €
12
P/N (SKU): 0NYV-061019-1000
Part Name: BEARING
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: 6207
Price: 19,00 € : 19,00 €
-+
13
P/N (SKU): 0NYV-012007-1001
Part Name: CIRCLIP FOR HOLE 72
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): 0NYV-010120-1000
Part Name: OIL SEAL
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: 35×72×8
Price: 11,00 € : 11,00 €
-+
15
P/N (SKU): 0NYV-012102-1000
Part Name: BALANCE SHAFT END COVER
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: null
Price: 8,50 € : 8,50 €
-+
16
P/N (SKU): 0010-023010-0010
Part Name: BOLT M6x20
Effective: 2025-11-04
Remarks: null
Alternative parts: 0JWV-011107-3000
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
17
P/N (SKU): 0DM0-022201-10000
Part Name: DOWEL PIN
Effective: 2025-11-04
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 0NYV-012108-1000
Part Name: MAIN BEARING BOLT
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: null
Price: 2,50 € : 2,50 €
-+
19
P/N (SKU): 0700-012003-00002
Part Name: BOLT
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
20
P/N (SKU): 0JYA-062104
Part Name: BOLT M8x28
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: M8x28
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 0010-021017-0010
Part Name: BOLT M6x25
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 0NYV-077200-2002
Part Name: OIL DIPSTICK TUBE ASSY
Effective: 2025-11-04
Alternative parts: null
Specification: null
Price: 15,00 € : 15,00 €
23
P/N (SKU): 0NYV-077100-2001
Part Name: DIPSTICK ASSY
Effective: 2025-11-04
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
24
P/N (SKU): 1F30-029003
Part Name: BOLT M10x1.25x25
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: M10x1.25x25
Price: 2,00 € : 2,00 €
25
P/N (SKU): 0NYV-070400-1000
Part Name: PISTON COOLING NOZZLE ASSY
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: null
Price: 11,49 € : 11,49 €
26
P/N (SKU): 0NYV-011103-4000
Part Name: WATER JACKET BAFFLE
Effective: 2025-11-26
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
