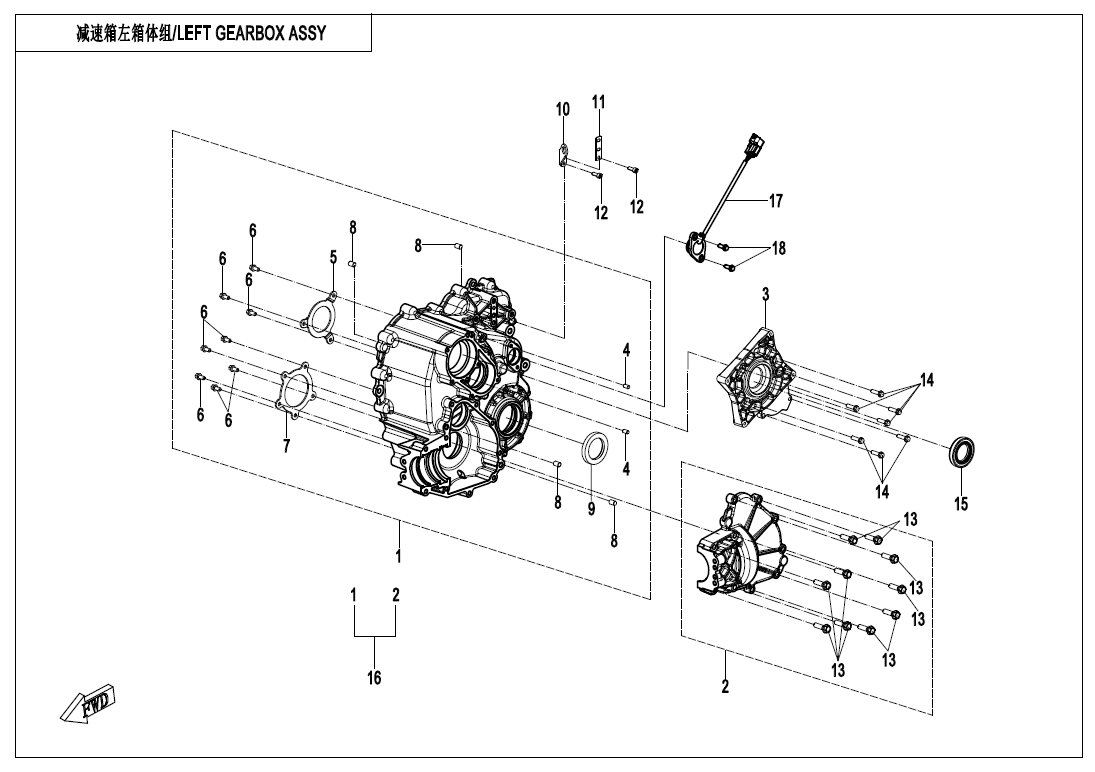

LEFT GEARBOX ASSY - E01-5-V1

LEFT GEARBOX ASSY - E01-5-V1

No.

3
P/N (SKU): 0NYV-069501-1001
Part Name: GEARBOX INPUT SHAFT COVER
Effective: 2025-12-22
Remarks: null
Alternative parts: null
Specification: null
Price: 41,21 € : 41,21 €
4
P/N (SKU): 01A0-056004
Part Name: DOWEL PIN Φ6×12
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: 6x12
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 0NYV-069701-1000
Part Name: BEARING PRESS PLATE
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
-+
6
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 0NYV-069702-1001
Part Name: BEARING PRESS PLATE 1
Effective: 2025-11-04
Alternative parts: null
Specification: null
Price: 8,80 € : 8,80 €
8
P/N (SKU): 30410-00800
Part Name: CYLINDRICAL ROLLERS
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
9
P/N (SKU): 0NYV-069104-4000
Part Name: COUNTERSHAFT OIL SEAL 40x58x8
Effective: 2025-11-04
Alternative parts: null
Specification: null
Price: 6,60 € : 6,60 €
10
P/N (SKU): 0NYV-022038-1001
Part Name: FRONT HOOK
Effective: 2025-11-04
Alternative parts: null
Specification: null
Price: 1,80 € : 1,80 €
11
P/N (SKU): 0NYV-011005-1000
Part Name: CABLE BRACKET 2
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
12
P/N (SKU): 30102-080020810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: M8x20@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 0JYA-062104
Part Name: BOLT M8x28
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: M8x28
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 0010-080013-0010
Part Name: BOLT M6x22
Effective: 2025-11-04
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 0JY0-013103
Part Name: OIL SEAL
Effective: 2025-11-04
Remarks: null
Alternative parts: 0JYV-013103-5000-M1
Specification: 32X55X10
Price: 8,50 € : 8,50 €
-+
16
P/N (SKU): SH-0NYV-0691B0-1001
Part Name: GEARBOX LH CRANKCASE ASSY
Effective: 2025-11-04
Alternative parts: null
Specification: null
Price: 232,50 € : 232,50 €
17
P/N (SKU): 0NYV-012200-1000
Part Name: GEAR SENSOR
Effective: 2025-11-04
Remarks: null
Alternative parts: null
Specification: null
Price: 23,20 € : 23,20 €
18
P/N (SKU): 0010-023008-0010
Part Name: BOLT M6x18
Effective: 2025-11-04
Alternative parts: 0010-023008-00001
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
