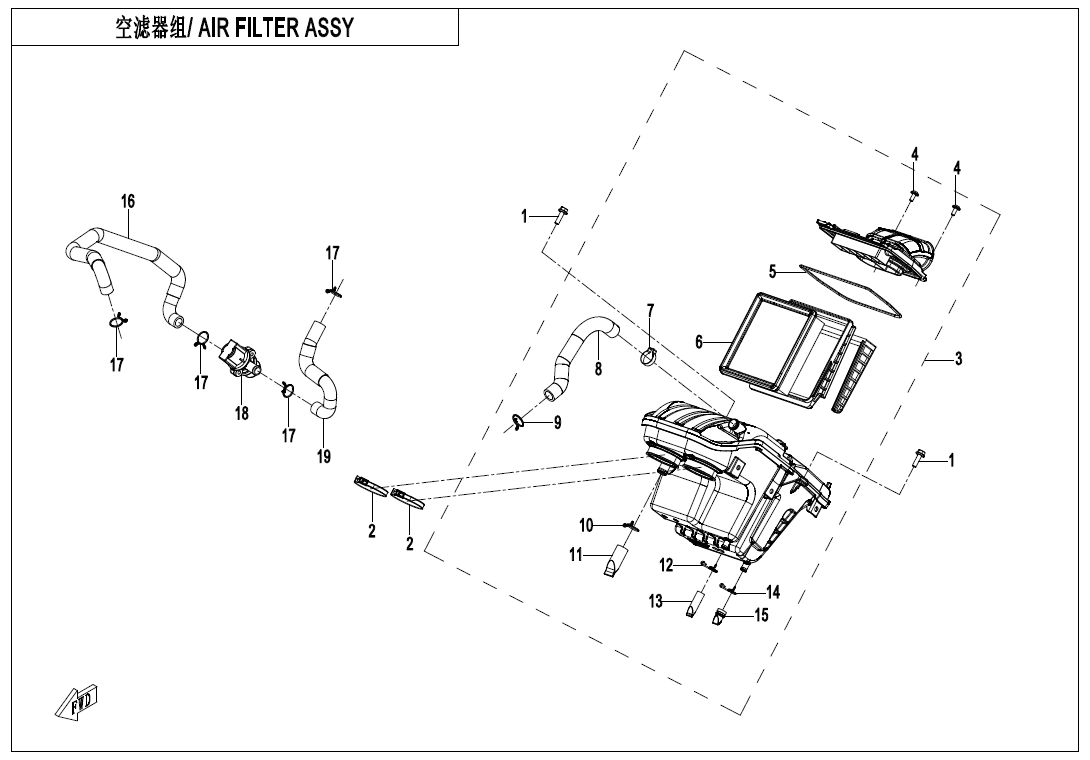

AIR FILTER ASSY - F41-A

AIR FILTER ASSY - F41-A

No.

01
P/N (SKU): 30006-060020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-08-21
Remarks: null
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,50 € : 1,50 €
02
P/N (SKU): 0120-110003
Part Name: CLAMP 52
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
03
P/N (SKU): 0SQV-110000-5002
Part Name: AIR FILTER ASSY
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 76,00 € : 76,00 €
-+
04
P/N (SKU): 6NTA-040202
Part Name: INNER HEX SCREW
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: M5×12
Price: 1,50 € : 1,50 €
05
P/N (SKU): 0SQV-110000-5000-21
Part Name: SEAL RING
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 0SQV-112000-1000
Part Name: FILTER ELEMENT
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
-+
07
P/N (SKU): 0SQV-110000-5000-24
Part Name: CLAMP
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
08
P/N (SKU): 0SQV-110005-5000
Part Name: CRANKCASE BREATHER HOSE
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 8,00 € : 8,00 €
09
P/N (SKU): 0SQV-110000-5000-20
Part Name: CLAMP
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: 19.8
Price: 1,50 € : 1,50 €
10
P/N (SKU): 30601-117010
Part Name: STEEL WIRE ELASTIC RING HOOP
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: A17
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 0SQV-110000-1000-24
Part Name: OIL STORAGE HOSE
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 30601-110010
Part Name: STEEL WIRE ELASTIC RING HOOP
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: A10
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 0SQV-110000-1000-25
Part Name: OIL STORAGE HOSE
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 0SQV-110000-5000-22
Part Name: CLAMP
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: 10.5
Price: 1,50 € : 1,50 €
15
P/N (SKU): 0SQV-110000-1000-21
Part Name: VALVE
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 0SQV-140002-5000
Part Name: SECONDARY AIR SYSTEM OUTLET PIPE
Effective: 2025-09-01
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
-+
17
P/N (SKU): 30601-118010
Part Name: STEEL WIRE ELASTIC RING HOOP
Effective: 2025-09-01
Remarks: null
Alternative parts: null
Specification: A18
Price: 1,50 € : 1,50 €
18
P/N (SKU): 0HUV-179000-1000
Part Name: SAS VALVE
Effective: 2025-09-01
Remarks: null
Alternative parts: null
Specification: null
Price: 34,40 € : 34,40 €
19
P/N (SKU): 0SQV-140001-5000
Part Name: SECONDARY AIR SYSTEM INTAKE PIPE
Effective: 2025-09-01
Remarks: null
Alternative parts: null
Specification: null
Price: 6,00 € : 6,00 €
-+
