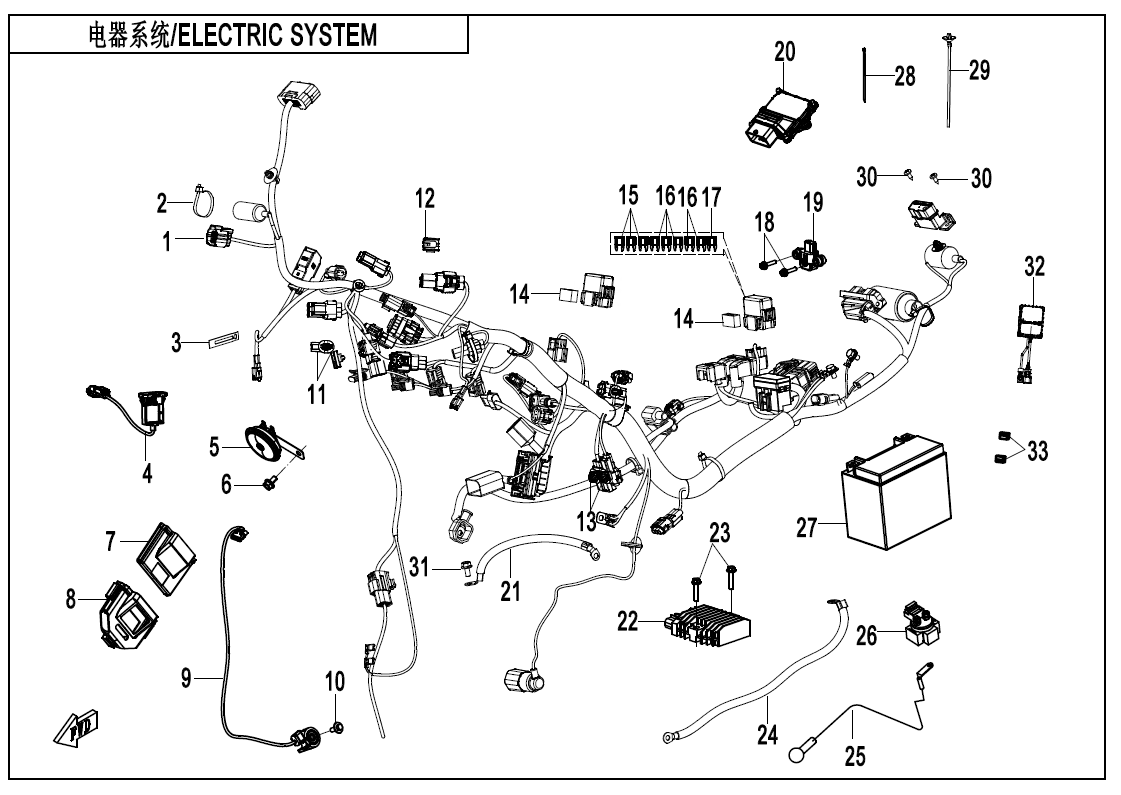

ELECTRIC SYSTEM - F15

ELECTRIC SYSTEM - F15

No.

01
P/N (SKU): 6GUV-150100-3401
Part Name: MAIN CABLE
Effective: 2025-11-27
Alternative parts: 6GUV-150100-3402
Price: 252,00 € : 252,00 €
01
P/N (SKU): 6GUV-150100-3402
Part Name: MAIN CABLE
Effective: 2026-03-17
Alternative parts:
Price: 0,00 € : 0,00 €
-+
02
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2025-11-27
Alternative parts:
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2025-11-27
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 6KWV-151500-1000
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2025-11-27
Alternative parts:
Price: 30,00 € : 30,00 €
-+
05
P/N (SKU): 6FIV-150600-7000
Part Name: HORN
Effective: 2025-11-27
Alternative parts:
Price: 11,00 € : 11,00 €
-+
06
P/N (SKU): 30006-060010810
Part Name: BOLT
Effective: 2025-11-27
Alternative parts:
Specification: M6×10
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 6GUV-151900-5600
Part Name: VEHICLE CONTROL UNIT
Effective: 2025-11-27
Alternative parts:
Price: 124,00 € : 124,00 €
-+
08
P/N (SKU): 6WWV-150420-5000-10
Part Name: VEHICLE CONTROL UNIT BUSHING
Effective: 2025-11-27
Alternative parts:
Price: 6,50 € : 6,50 €
-+
09
P/N (SKU): 6KMV-151500-3000
Part Name: SIDE STAND SWITCH
Effective: 2025-11-27
Alternative parts:
Price: 18,00 € : 18,00 €
-+
10
P/N (SKU): 8010-090005
Part Name: BOLT M6x16
Effective: 2025-11-27
Alternative parts:
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): CFCV-CAC002-2000-M1
Part Name: CLIP
Effective: 2025-11-27
Alternative parts:
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): CFCV-CBC005-2000-M1
Part Name: CLIP
Effective: 2025-11-27
Alternative parts:
Price: 2,00 € : 2,00 €
-+
13
P/N (SKU): 6AQV-150001-1000-M1
Part Name: CLIP
Effective: 2025-11-27
Alternative parts:
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 6100-150500
Part Name: RUBBER SLEEVE, FLASHER
Effective: 2025-11-27
Alternative parts:
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 8010-151301
Part Name: FUSE 5A
Effective: 2025-11-27
Alternative parts:
Specification: 5A
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2025-11-27
Alternative parts:
Specification: 15A
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 806A-151307
Part Name: 25A FUSE
Effective: 2025-11-27
Alternative parts:
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 30006-050020810
Part Name: BOLT
Effective: 2025-11-27
Alternative parts:
Specification: M5×20
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 6KJ0-150600
Part Name: ROLL-OVER SENSOR
Effective: 2025-11-27
Alternative parts:
Price: 20,00 € : 20,00 €
-+
20
P/N (SKU): 6GUV-001000-3400
Part Name: ECM ASSY
Effective: 2025-11-28
Remarks: EU5 ＋ A3
Alternative parts:
Price: 295,00 € : 295,00 €
-+
20
P/N (SKU): 6GUV-001000-5B00
Part Name: ECM ASSY
Effective: 2025-11-28
Remarks: EU5 ＋ A2
Alternative parts:
Price: 197,49 € : 197,49 €
-+
20
P/N (SKU): 6GUV-001000-5700
Part Name: ECM ASSY
Effective: 2026-03-06
Remarks: EU5 ＋ A3
Alternative parts:
Specification: MSE9.0
Price: 226,00 € : 226,00 €
-+
21
P/N (SKU): 6GUV-150320-5600
Part Name: ENGINE GROUND WIRE
Effective: 2025-11-27
Alternative parts:
Price: 10,00 € : 10,00 €
-+
22
P/N (SKU): 6NTV-151000-3000
Part Name: REGULATOR
Effective: 2025-11-27
Alternative parts:
Price: 54,00 € : 54,00 €
-+
23
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2025-11-27
Alternative parts:
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 6GUV-150420-5600
Part Name: BATTERY NEGATIVE CABLE
Effective: 2025-11-27
Alternative parts:
Price: 18,00 € : 18,00 €
-+
25
P/N (SKU): 6GUV-150310-5600
Part Name: STARTER MOTOR POSITIVE CABLE
Effective: 2025-11-27
Alternative parts:
Price: 16,00 € : 16,00 €
-+
26
P/N (SKU): 6GUV-150510-5600
Part Name: STARTER RELAY
Effective: 2025-11-27
Alternative parts:
Price: 14,00 € : 14,00 €
-+
26
P/N (SKU): 6GUV-150510-5601
Part Name: STARTER RELAY
Effective: 2026-03-17
Alternative parts:
Price: 0,00 € : 0,00 €
-+
27
P/N (SKU): 31021100
Part Name: BATTERY
Effective: 2025-11-27
Alternative parts: 6GUV-151600-5600-M1
Price: 105,00 € : 105,00 €
27
P/N (SKU): 6KWV-151600-1201-M1
Part Name: BATTERY
Effective: 2025-11-27
Remarks: with Türkiye Label
Alternative parts:
Price: 0,00 € : 0,00 €
-+
27
P/N (SKU): 6GUV-151600-5600-M1
Part Name: BATTERY
Effective: 2026-02-26
Alternative parts:
Price: 78,80 € : 78,80 €
-+
28
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2025-11-27
Alternative parts:
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG
Effective: 2025-11-27
Alternative parts:
Specification: 4.7x194@ZDG4.7X194
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 30110-420130070
Part Name: SELF-TAPPING SCREW
Effective: 2025-11-27
Alternative parts:
Specification: ST4.2x13@BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2025-11-27
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2025-11-27
Alternative parts:
Specification: @Eurasia and Africa and Australia except Turkey,BN,IN,BD,MN,NP
Price: 420,00 € : 420,00 €
-+
32
P/N (SKU): SN1V-691100-1301-11
Part Name: T-BOX
Effective: 2025-11-27
Alternative parts:
Specification: North Amrica
Price: 420,00 € : 420,00 €
-+
32
P/N (SKU): SN1V-691100-1401-11
Part Name: T-BOX
Effective: 2025-11-27
Alternative parts:
Specification: AllyTech@South America except for Brazil
Price: 420,00 € : 420,00 €
-+
32
P/N (SKU): SN1V-691100-1501-11
Part Name: T-BOX
Effective: 2025-11-27
Alternative parts:
Specification: Turkey
Price: 420,00 € : 420,00 €
-+
32
P/N (SKU): SN1V-691100-1601-11
Part Name: T-BOX
Effective: 2025-11-27
Alternative parts:
Specification: Brazil
Price: 420,00 € : 420,00 €
-+
32
P/N (SKU): SN1V-691100-1900-11
Part Name: T-BOX
Effective: 2025-11-28
Alternative parts:
Price: 198,50 € : 198,50 €
-+
33
P/N (SKU): 6KMV-150901-B002
Part Name: T-BOX RUBBER RING
Effective: 2025-11-27
Alternative parts:
Price: 2,00 € : 2,00 €
-+
