AIR CONDITIONING SYSTEM - F35-1-A

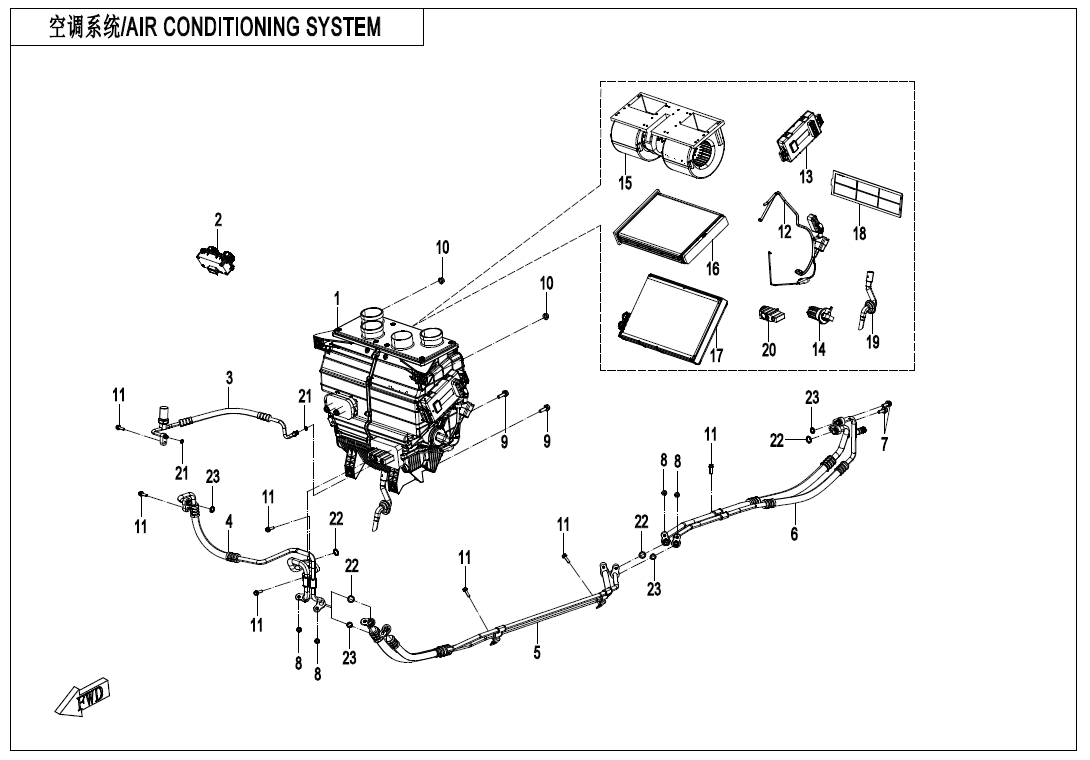

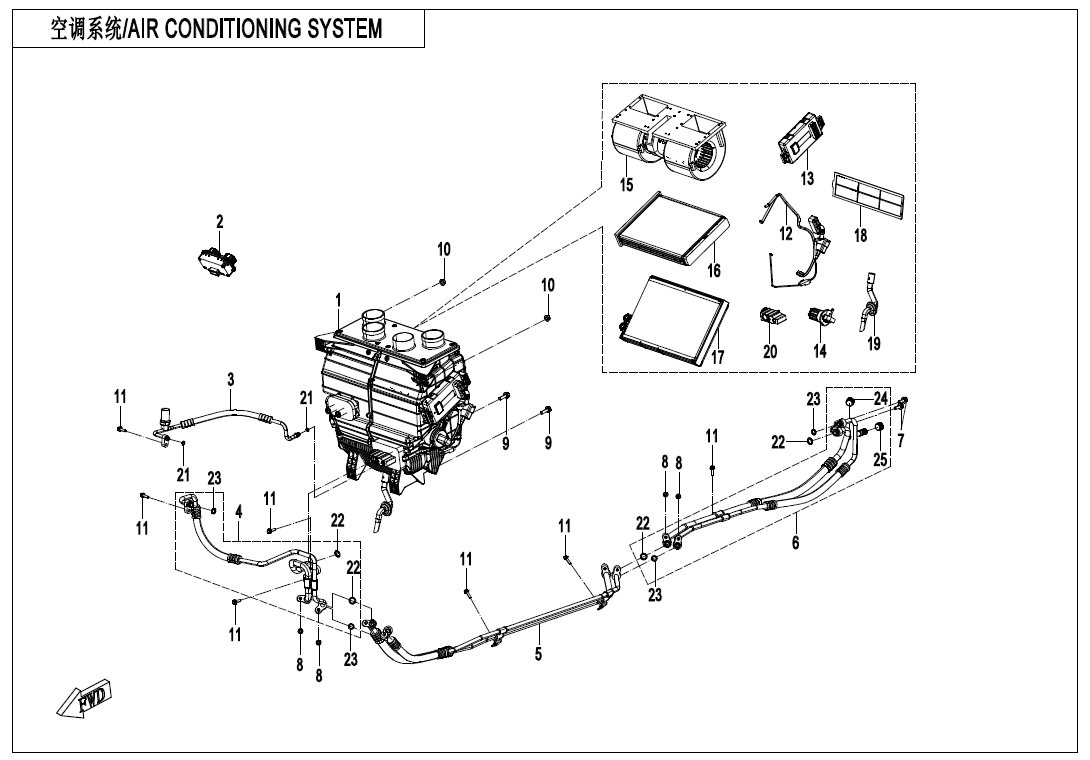

AIR CONDITIONING SYSTEM - F35-1-A

No.

1
P/N (SKU): 5HYV-351100-9001
Part Name: AIR CONDITIONER ASSY
Effective: 2025-04-30
Alternative parts:
Price: 0,00 € : 0,00 €
-+
2
P/N (SKU): 5HYV-354100-9001-0DT00
Part Name: AIR CONDITION CONTROL PANEL
Effective: 2025-04-30
Alternative parts:
Specification: PIANO BLACK
Price: 0,00 € : 0,00 €
-+
3
P/N (SKU): 5HYV-355300-9001
Part Name: FLUID PIPE ASSY
Effective: 2025-04-30
Alternative parts:
Price: 0,00 € : 0,00 €
-+
4
P/N (SKU): 5HYV-355430-9001
Part Name: PRESSURE PIPE ASSY 3
Effective: 2025-04-30
Alternative parts:
Price: 0,00 € : 0,00 €
-+
5
P/N (SKU): 5HYV-355420-9001
Part Name: PRESSURE PIPE ASSY 2
Effective: 2025-04-30
Alternative parts: 5HYV-355420-9002
Price: 0,00 € : 0,00 €
6
P/N (SKU): 5HYV-355410-9001
Part Name: PRESSURE PIPE ASSY 1
Effective: 2025-04-30
Alternative parts:
Price: 0,00 € : 0,00 €
-+
7
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2025-04-30
Alternative parts: 30006-080016810
Specification: M8×20
Price: 1,50 € : 1,50 €
-+
8
P/N (SKU): 30204-060810
Part Name: NUT
Effective: 2025-04-30
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
9
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2025-04-30
Alternative parts:
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2025-04-30
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2025-04-30
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 5HYV-351100-9000-20
Part Name: CABLE ASSY
Effective: 2025-04-30
Alternative parts:
Price: 0,00 € : 0,00 €
-+
13
P/N (SKU): 5HYV-354200-9001
Part Name: AIR CONDITION CONTROLLER
Effective: 2025-04-30
Alternative parts:
Price: 0,00 € : 0,00 €
-+
14
P/N (SKU): 5HYV-351100-9000-22
Part Name: SPEED REGULATION MODULE
Effective: 2025-04-30
Alternative parts:
Price: 0,00 € : 0,00 €
-+
15
P/N (SKU): 5HYV-351100-9001-26
Part Name: EVAPORATOR MOTOR ASSY
Effective: 2025-04-30
Alternative parts:
Price: 0,00 € : 0,00 €
-+
16
P/N (SKU): 5HYV-351100-9000-29
Part Name: HEATER ASSY
Effective: 2025-04-30
Alternative parts:
Price: 0,00 € : 0,00 €
-+
17
P/N (SKU): 5HYV-351100-9000-30
Part Name: EVAPORATOR ASSY
Effective: 2025-04-30
Alternative parts:
Price: 0,00 € : 0,00 €
-+
18
P/N (SKU): 5HYV-351100-9001-31
Part Name: AIR CONDITION FILTER
Effective: 2025-04-30
Alternative parts:
Price: 0,00 € : 0,00 €
-+
19
P/N (SKU): 5HYV-351100-9000-33
Part Name: EXHAUST PIPE
Effective: 2025-04-30
Alternative parts:
Price: 0,00 € : 0,00 €
-+
20
P/N (SKU): 5HYV-351100-9001-34
Part Name: EXPANSION VALVE
Effective: 2025-04-30
Alternative parts:
Price: 0,00 € : 0,00 €
-+
21
P/N (SKU): 5HYV-355300-9000-27
Part Name: O-RING
Effective: 2025-04-30
Alternative parts:
Price: 0,00 € : 0,00 €
-+
22
P/N (SKU): 5HYV-355410-9000-37
Part Name: O-RING
Effective: 2025-04-30
Alternative parts:
Price: 0,00 € : 0,00 €
-+
23
P/N (SKU): 5HYV-355410-9000-38
Part Name: O-RING
Effective: 2025-04-30
Alternative parts:
Price: 0,00 € : 0,00 €
-+
