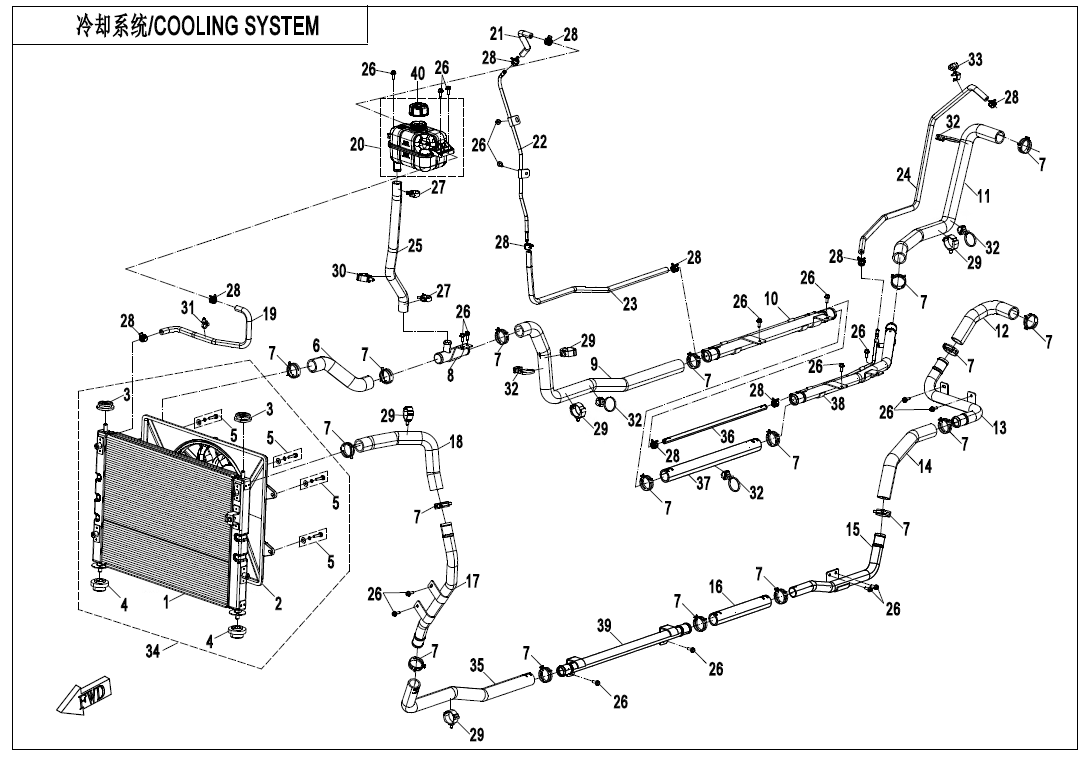

COOLING SYSTEM - F18-V3

COOLING SYSTEM - F18-V3

No.

1
P/N (SKU): 5HYV-181120-6001
Part Name: RADIATOR
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 77,00 € : 77,00 €
2
P/N (SKU): 5HYV-181130-6001
Part Name: FAN
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 66,00 € : 66,00 €
3
P/N (SKU): 5HYV-181140-6000
Part Name: UPPER INSULATION
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 19,00 € : 19,00 €
-+
4
P/N (SKU): 5HYV-181150-6000
Part Name: LOWER INSULATION
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 19,00 € : 19,00 €
-+
5
P/N (SKU): 5HYV-181100-6000-20
Part Name: BOLT ASSY
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
6
P/N (SKU): 5HYV-182040-6000
Part Name: RADIATOR INLET PIPE
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 8,50 € : 8,50 €
7
P/N (SKU): 5HYV-187002-6000
Part Name: CLAMP B38
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
8
P/N (SKU): 5HYV-185070-6000
Part Name: T-JOINT
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 8,50 € : 8,50 €
9
P/N (SKU): 5HYV-182500-6001
Part Name: CONNECTING TUBE 1
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: @
Price: 0,00 € : 0,00 €
10
P/N (SKU): 5SYV-183510-8001
Part Name: CONNECTING AL PIPE 2
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: @
Price: 0,00 € : 0,00 €
11
P/N (SKU): 5HYV-182050-6000
Part Name: ENGINE WATER INTLET PIPE
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 19,00 € : 19,00 €
12
P/N (SKU): 5HYV-182060-6000
Part Name: ENGINE WATER OUTLET PIPE
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 9,00 € : 9,00 €
13
P/N (SKU): 5HYV-183500-6000
Part Name: CONNECTING ALUM PIPE 1
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 14,00 € : 14,00 €
14
P/N (SKU): 5HYV-182510-6000
Part Name: CONNECTING TUBE 2
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
15
P/N (SKU): 5SYV-183060-8000
Part Name: ENGINE OUTLET ALUM PIPE
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 13,00 € : 13,00 €
16
P/N (SKU): 5SYV-182560-8000
Part Name: CONNECTING TUBE 7
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 6,50 € : 6,50 €
17
P/N (SKU): 5HYV-183030-6000
Part Name: RADIATOR INLET ALUM PIPE
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 16,00 € : 16,00 €
-+
18
P/N (SKU): 5HYV-182030-6000
Part Name: RADIATOR INLET PIPE
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
-+
19
P/N (SKU): 5HYV-182400-6001
Part Name: RADIATOR AIR REMOVAL PIPE
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 7,00 € : 7,00 €
20
P/N (SKU): 5HYV-184030-6000
Part Name: ENGINE EXPANSION BOX
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 26,00 € : 26,00 €
21
P/N (SKU): 5HYV-182530-6001
Part Name: CONNECTING TUBE 4
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
22
P/N (SKU): 5HYV-183420-6000
Part Name: ENGINE REMOVAL ALUM PIPE
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 9,00 € : 9,00 €
23
P/N (SKU): 5HYV-182540-6002
Part Name: CONNECTING TUBE 5
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: @
Price: 0,00 € : 0,00 €
24
P/N (SKU): 5HYV-182420-6001
Part Name: ENGINE REMOVAL PIPE
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
25
P/N (SKU): 5HYV-182410-6000
Part Name: ENGINE FEED PIPE
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
26
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 6KM0-180004
Part Name: CLAMP B28
Effective: 2026-03-30
Remarks: null
Alternative parts: 30605-127060
Price: 3,00 € : 3,00 €
28
P/N (SKU): 30605-114060
Part Name: SPRING BAND HOSE CLAMPS
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
29
P/N (SKU): 5HYV-188003-6000
Part Name: CLASP 37
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
30
P/N (SKU): 5HYV-188002-6000
Part Name: CLASP 27
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
31
P/N (SKU): 5HYV-188001-6000
Part Name: CLASP 15
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
32
P/N (SKU): 5HYV-188004-6000
Part Name: CLIP 15-37
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
33
P/N (SKU): 5HYV-188005-6000
Part Name: CLIP 15-20
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
34
P/N (SKU): 5HYV-181100-6001
Part Name: COOLING MODULE
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 331,00 € : 331,00 €
35
P/N (SKU): 5SYV-182520-8000
Part Name: CONNECTING TUBE 3
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 17,00 € : 17,00 €
36
P/N (SKU): 5SYV-182570-8001
Part Name: CONNECTING TUBE 8
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 5,50 € : 5,50 €
37
P/N (SKU): 5SYV-182550-8000
Part Name: CONNECTING TUBE 6
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
38
P/N (SKU): 5HYV-183050-6001
Part Name: ENGINE INLET AL PIPE
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: @
Price: 0,00 € : 0,00 €
39
P/N (SKU): 5SYV-183520-8001
Part Name: CONNECTING AL PIPE 3
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: @
Price: 0,00 € : 0,00 €
40
P/N (SKU): 5HYV-184032-6000-21
Part Name: PRESSURE CAP
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 10,45 € : 10,45 €
