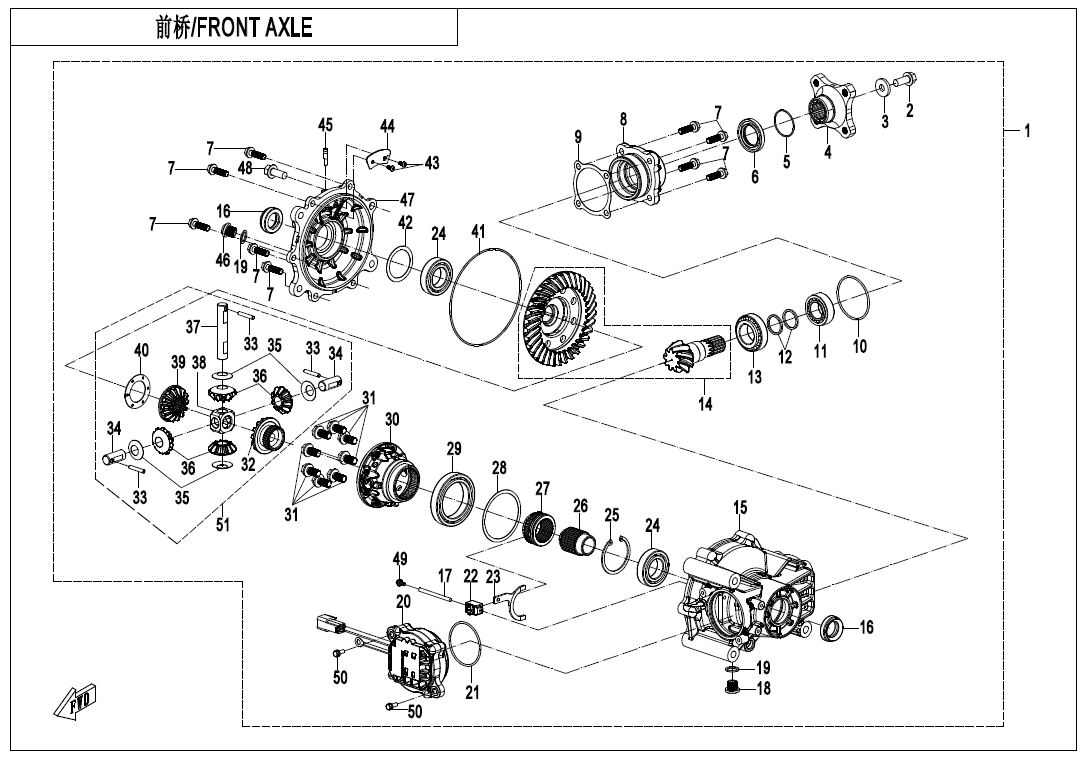

FRONT AXLE - F31

FRONT AXLE - F31

No.

01
P/N (SKU): Q890-310000-40001
Part Name: FRONT GEAR CASE ASSY
Effective: 2024-12-26
Alternative parts:
Price: 483,00 € : 483,00 €
-+
02
P/N (SKU): 0GR0-062203
Part Name: BOLT
Effective: 2024-12-26
Alternative parts:
Specification: M10×1.25×20
Price: 2,00 € : 2,00 €
-+
03
P/N (SKU): 0GR0-062204
Part Name: WASHER
Effective: 2024-12-26
Alternative parts:
Specification: 10x27.5x4
Price: 2,50 € : 2,50 €
-+
04
P/N (SKU): Q850-331002
Part Name: COUPLER
Effective: 2024-12-26
Alternative parts: Q850-331002-10000
Price: 38,00 € : 38,00 €
-+
05
P/N (SKU): 0800-062205
Part Name: O-RING
Effective: 2024-12-26
Alternative parts:
Specification: 25x2
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 0800-062204
Part Name: OIL SEAL
Effective: 2024-12-26
Alternative parts:
Specification: 35x50x7
Price: 6,50 € : 6,50 €
-+
07
P/N (SKU): 0110-060011-0010
Part Name: BOLT M8×28
Effective: 2024-12-26
Alternative parts: 0JYA-062104
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
08
P/N (SKU): Q830-311002-00001
Part Name: BEARING SEAT
Effective: 2024-12-26
Alternative parts:
Price: 21,00 € : 21,00 €
-+
09
P/N (SKU): Q830-310023-00100
Part Name: ADJUSTING WASHER
Effective: 2024-12-26
Alternative parts:
Specification: T=0.20
Price: 2,00 € : 2,00 €
-+
09
P/N (SKU): Q830-310023-00200
Part Name: ADJUSTING WASHER
Effective: 2024-12-26
Alternative parts:
Specification: T=0.30
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): Q830-310006-10000
Part Name: O-RING
Effective: 2024-12-26
Alternative parts:
Specification: 55×2.5
Price: 3,00 € : 3,00 €
-+
11
P/N (SKU): 30409-02500
Part Name: TAPERED ROLLER BEARING
Effective: 2024-12-26
Alternative parts:
Specification: GB/T297 33005_25×47×17
Price: 19,00 € : 19,00 €
-+
12
P/N (SKU): Q830-311003-00001-00100
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2024-12-26
Alternative parts:
Specification: T=2.10
Price: 1,80 € : 1,80 €
-+
12
P/N (SKU): Q830-311003-00001-00200
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2024-12-26
Alternative parts:
Specification: T=2.20
Price: 1,80 € : 1,80 €
-+
12
P/N (SKU): Q830-311003-00001-00300
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2024-12-26
Alternative parts:
Specification: T=2.30
Price: 1,80 € : 1,80 €
-+
12
P/N (SKU): Q830-311003-00001-00400
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2024-12-26
Alternative parts:
Specification: T=2.40
Price: 1,80 € : 1,80 €
-+
12
P/N (SKU): Q830-311003-00001-00500
Part Name: ADJUSTING WASHER
Effective: 2024-12-26
Alternative parts:
Specification: 32x25.4x2.42
Price: 1,80 € : 1,80 €
-+
12
P/N (SKU): Q830-311003-00001-00600
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2024-12-26
Alternative parts:
Specification: T=2.44
Price: 1,80 € : 1,80 €
-+
12
P/N (SKU): Q830-311003-00001-00700
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2024-12-26
Alternative parts:
Specification: T=2.46
Price: 1,80 € : 1,80 €
-+
12
P/N (SKU): Q830-311003-00001-00800
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2024-12-26
Alternative parts:
Specification: T=2.48
Price: 1,80 € : 1,80 €
-+
12
P/N (SKU): Q830-311003-00001-00900
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2024-12-26
Alternative parts:
Specification: T=2.50
Price: 1,80 € : 1,80 €
-+
12
P/N (SKU): Q830-311003-00001-01000
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2024-12-26
Alternative parts:
Specification: T=2.60
Price: 1,80 € : 1,80 €
-+
12
P/N (SKU): Q830-311003-00001-01100
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2024-12-26
Alternative parts:
Specification: T=2.70
Price: 1,80 € : 1,80 €
-+
12
P/N (SKU): Q830-311003-00001-01200
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2024-12-26
Alternative parts:
Specification: T=2.80
Price: 1,80 € : 1,80 €
-+
12
P/N (SKU): Q830-311003-00001-01300
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2024-12-26
Alternative parts:
Specification: T=2.90
Price: 1,80 € : 1,80 €
-+
12
P/N (SKU): Q830-311003-00001-01400
Part Name: ADJUSTING WASHER 32×25.4
Effective: 2024-12-26
Alternative parts:
Specification: T=3.00
Price: 1,80 € : 1,80 €
-+
13
P/N (SKU): 30409-03000
Part Name: TAPERED ROLLER BEARING
Effective: 2024-12-26
Alternative parts:
Specification: GB/T297 32006_30×55×17
Price: 17,00 € : 17,00 €
-+
14
P/N (SKU): Q890-3100A0
Part Name: BEVEL GEAR ASSY, FRONT GEAR CASE
Effective: 2024-12-26
Alternative parts:
Price: 139,00 € : 139,00 €
-+
15
P/N (SKU): Q890-310001-00001
Part Name: FRONT GEAR CASE
Effective: 2024-12-26
Alternative parts:
Price: 69,00 € : 69,00 €
-+
16
P/N (SKU): 0180-311001
Part Name: OIL SEAL
Effective: 2024-12-26
Alternative parts:
Specification: 24x38x8
Price: 4,50 € : 4,50 €
-+
17
P/N (SKU): Q830-310003
Part Name: PIN SHAFT
Effective: 2024-12-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
18
P/N (SKU): 0180-332100
Part Name: MAGNETIC DRAIN BOLT M14×1.25×12
Effective: 2024-12-26
Alternative parts:
Specification: M14x1.25x12
Price: 5,50 € : 5,50 €
-+
19
P/N (SKU): 0180-011006
Part Name: GASKET 14
Effective: 2024-12-26
Alternative parts:
Specification: 14
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 9AWV-152900-8000
Part Name: ELECTRICAL FRONT GEAR CASE MOTOR
Effective: 2024-12-26
Alternative parts:
Price: 178,00 € : 178,00 €
-+
21
P/N (SKU): Q830-310012-10000
Part Name: O-SEAL RING 67.5×2
Effective: 2024-12-26
Alternative parts:
Specification: 67.5x2
Price: 2,50 € : 2,50 €
-+
22
P/N (SKU): Q890-310010
Part Name: BLOCK ASSY
Effective: 2024-12-26
Alternative parts:
Price: 24,00 € : 24,00 €
-+
23
P/N (SKU): Q890-310003
Part Name: SHIFT FORK
Effective: 2024-12-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
24
P/N (SKU): 30400-03001
Part Name: ROLLER BEARING
Effective: 2024-12-26
Alternative parts:
Specification: 30×55×13
Price: 10,00 € : 10,00 €
-+
25
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE
Effective: 2024-12-26
Alternative parts:
Specification: BLACK
Price: 2,50 € : 2,50 €
-+
26
P/N (SKU): Q830-310014
Part Name: SPLINE SLEEVE
Effective: 2024-12-26
Alternative parts:
Price: 19,00 € : 19,00 €
-+
27
P/N (SKU): Q830-310013
Part Name: SPLINE BUSHING
Effective: 2024-12-26
Alternative parts:
Price: 16,00 € : 16,00 €
-+
28
P/N (SKU): Q830-310015-00100
Part Name: ADJUSTING WASHER 79.5x68
Effective: 2024-12-26
Alternative parts:
Specification: T=0.10
Price: 2,00 € : 2,00 €
-+
28
P/N (SKU): Q830-310015-00200
Part Name: ADJUSTING WASHER 79.5x68
Effective: 2024-12-26
Alternative parts:
Specification: T=0.20
Price: 2,00 € : 2,00 €
-+
28
P/N (SKU): Q830-310015-00300
Part Name: ADJUSTING WASHER 79.5x68
Effective: 2024-12-26
Alternative parts:
Specification: T=0.30
Price: 2,00 € : 2,00 €
-+
28
P/N (SKU): Q830-310015-00400
Part Name: ADJUSTING WASHER 79.5x68
Effective: 2024-12-26
Alternative parts:
Specification: T=0.40
Price: 2,00 € : 2,00 €
-+
28
P/N (SKU): Q830-310015-00500
Part Name: ADJUSTING WASHER 79.5x68
Effective: 2024-12-26
Alternative parts:
Specification: T=0.50
Price: 2,00 € : 2,00 €
-+
28
P/N (SKU): Q830-310015-00600
Part Name: ADJUSTING WASHER 79.5x68
Effective: 2024-12-26
Alternative parts:
Specification: T=1.00
Price: 2,00 € : 2,00 €
-+
29
P/N (SKU): 30400-05500
Part Name: ROLLER BEARING
Effective: 2024-12-26
Alternative parts:
Specification: 61911
Price: 24,00 € : 24,00 €
-+
30
P/N (SKU): Q890-313002
Part Name: DIFFERENTIAL HOUSING
Effective: 2024-12-26
Alternative parts:
Price: 54,00 € : 54,00 €
-+
31
P/N (SKU): 0181-313100
Part Name: BOLT M10x1.25x22
Effective: 2024-12-26
Alternative parts: 0181-313100-0010
Price: 2,00 € : 2,00 €
32
P/N (SKU): Q830-313004
Part Name: CV SHAFT GEAR
Effective: 2024-12-26
Alternative parts:
Price: 47,00 € : 47,00 €
-+
33
P/N (SKU): 30906-0503000
Part Name: PIN 5×30
Effective: 2024-12-26
Alternative parts:
Specification: 5x30
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): Q820-333005
Part Name: SHORT PLANET GEAR SHAFT
Effective: 2024-12-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
35
P/N (SKU): 0181-313011
Part Name: WEARING PAD
Effective: 2024-12-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
36
P/N (SKU): 0180-313003-00004
Part Name: DIFFERENTIAL CENTER GEAR
Effective: 2024-12-26
Alternative parts:
Specification: SURFACE PEENING TREATMENT, THE INNER HOLE TOLERANCE INCREASING
Price: 12,00 € : 12,00 €
-+
37
P/N (SKU): Q820-333006
Part Name: PLANET GEAR SHAFT
Effective: 2024-12-26
Alternative parts:
Price: 7,50 € : 7,50 €
-+
38
P/N (SKU): Q820-333008
Part Name: CROSS BUSHING
Effective: 2024-12-26
Alternative parts:
Price: 11,00 € : 11,00 €
-+
39
P/N (SKU): 0180-313006-00001
Part Name: DIFFERENTIAL DRIVEN GEAR
Effective: 2024-12-26
Alternative parts:
Price: 24,00 € : 24,00 €
-+
40
P/N (SKU): Q800-313005-00100
Part Name: GEAR WASHER 33.5×51.5
Effective: 2024-12-26
Alternative parts:
Specification: T=1.00
Price: 2,00 € : 2,00 €
-+
40
P/N (SKU): Q800-313005-00200
Part Name: GEAR WASHER 33.5×51.5
Effective: 2024-12-26
Alternative parts:
Specification: T=1.20
Price: 2,00 € : 2,00 €
-+
41
P/N (SKU): 0180-310005
Part Name: O-RING
Effective: 2024-12-26
Alternative parts:
Specification: 141×2.4
Price: 2,00 € : 2,00 €
-+
42
P/N (SKU): Q830-310009-00100
Part Name: ADJUSTING WASHER 54.5x43 T=0.10
Effective: 2024-12-26
Alternative parts:
Specification: T=0.10
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): Q830-310009-00200
Part Name: ADJUSTING WASHER 54.5x43 T=0.20
Effective: 2024-12-26
Alternative parts:
Specification: T=0.20
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): Q830-310009-00300
Part Name: ADJUSTING WASHER 54.5x43 T=0.30
Effective: 2024-12-26
Alternative parts:
Specification: T=0.30
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): Q830-310009-00400
Part Name: ADJUSTING WASHER 54.5x43 T=0.40
Effective: 2024-12-26
Alternative parts:
Specification: T=0.40
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): Q830-310009-00500
Part Name: ADJUSTING WASHER 54.5x43 T=0.50
Effective: 2024-12-26
Alternative parts:
Specification: T=0.50
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): Q830-310009-00600
Part Name: ADJUSTING WASHER 54.5x43 T=1.00
Effective: 2024-12-26
Alternative parts:
Specification: T=1.00
Price: 1,50 € : 1,50 €
-+
43
P/N (SKU): 30105-040008410
Part Name: SCREW M4×8
Effective: 2024-12-26
Alternative parts:
Specification: M4x8@TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
44
P/N (SKU): Q820-330007-10000
Part Name: OIL BAFFLE
Effective: 2024-12-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
45
P/N (SKU): 0180-311004-0020
Part Name: BREATHER HOSE JOINT
Effective: 2024-12-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
46
P/N (SKU): 0180-021008-00001
Part Name: BOLT
Effective: 2024-12-26
Alternative parts:
Specification: M14×1.25×12
Price: 2,00 € : 2,00 €
-+
47
P/N (SKU): Q890-310002
Part Name: FRONT GEAR CASE COVER
Effective: 2024-12-26
Alternative parts:
Price: 25,00 € : 25,00 €
-+
48
P/N (SKU): 0180-330004-0010
Part Name: BOLT M10x1.25x25
Effective: 2024-12-26
Alternative parts: 30001-102025810
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
49
P/N (SKU): 30130-080010820
Part Name: INNER HEX SCREW M8x10
Effective: 2024-12-26
Alternative parts: 30130-080010810
Specification: M8x10
Price: 1,50 € : 1,50 €
-+
50
P/N (SKU): 0010-023008-0010
Part Name: BOLT M6x18
Effective: 2024-12-26
Alternative parts: 0010-023008-00001
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
51
P/N (SKU): Q830-3130A0
Part Name: DIFFERENTIAL ASSY
Effective: 2024-12-26
Alternative parts:
Price: 83,00 € : 83,00 €
-+
