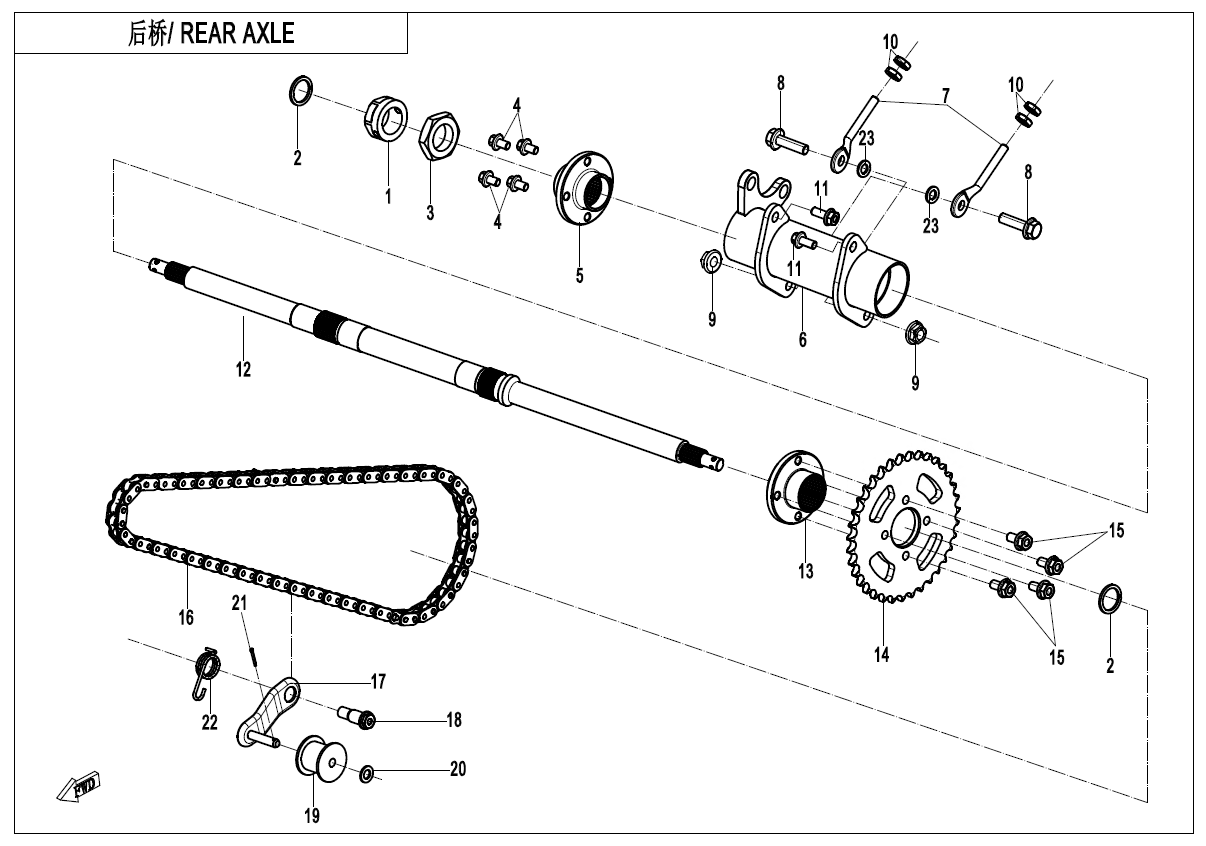

REAR AXLE(BOLT REGULATING) - F33-B-V2

REAR AXLE(BOLT REGULATING) - F33-B-V2

No.

1
P/N (SKU): 9RHV-330104-1001
Part Name: LOCK NUT 2
Effective: 2023-08-02
Alternative parts:
Price: 6,00 € : 6,00 €
-+
2
P/N (SKU): 9RHV-330108-1000
Part Name: LIMIT WASHER
Effective: 2023-08-02
Alternative parts: 9RHV-330108-1001
Price: 3,00 € : 3,00 €
2
P/N (SKU): 9RHV-330108-1001
Part Name: LIMIT WASHER
Effective: 2024-03-13
Alternative parts:
Price: 2,00 € : 2,00 €
-+
3
P/N (SKU): 9RHV-330102-1000
Part Name: LOCK NUT 1
Effective: 2023-08-02
Alternative parts:
Price: 3,50 € : 3,50 €
-+
4
P/N (SKU): 30023-080012810
Part Name: BOLT
Effective: 2023-08-02
Alternative parts:
Specification: M8×12
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 9RHV-330105-1000
Part Name: DISC BRAKE BRACKET
Effective: 2023-08-02
Alternative parts:
Price: 18,00 € : 18,00 €
-+
6
P/N (SKU): 9RHV-330200-1200
Part Name: REAR GEAR CASE ASSY
Effective: 2023-08-02
Alternative parts:
Price: 48,40 € : 48,40 €
-+
7
P/N (SKU): 9RHV-330115-1200
Part Name: CHAIN ADJUSTER
Effective: 2023-08-02
Alternative parts:
Price: 4,20 € : 4,20 €
-+
8
P/N (SKU): 30006-102030810
Part Name: BOLT
Effective: 2023-08-02
Alternative parts:
Specification: M10×1.25×30
Price: 1,50 € : 1,50 €
-+
9
P/N (SKU): 30204-102110
Part Name: NUT
Effective: 2023-08-02
Alternative parts: 30204-102810
Specification: M10×1.25
Price: 1,50 € : 1,50 €
10
P/N (SKU): 30200-080810
Part Name: NUT
Effective: 2023-08-02
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 30006-102025810
Part Name: BOLT
Effective: 2023-08-02
Alternative parts:
Specification: M10×1.25×25
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9RHV-330103-1200
Part Name: REAR GEAR CASE CORE SHAFT
Effective: 2023-08-02
Alternative parts:
Price: 77,10 € : 77,10 €
-+
13
P/N (SKU): 9RHV-330107-1000
Part Name: SPROCKET BRACKET
Effective: 2023-08-02
Alternative parts:
Price: 18,00 € : 18,00 €
-+
14
P/N (SKU): 9RHV-332001-1200
Part Name: BIG SPROCKET
Effective: 2023-08-02
Alternative parts:
Price: 24,00 € : 24,00 €
-+
15
P/N (SKU): 30023-080016810
Part Name: BOLT
Effective: 2023-08-02
Alternative parts:
Specification: M8×16
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 3120948
Part Name: CHAIN
Effective: 2023-08-02
Alternative parts:
Price: 19,00 € : 19,00 €
-+
17
P/N (SKU): 9RHV-332110-1000
Part Name: TENSIONER BRACKET
Effective: 2023-08-02
Alternative parts:
Price: 11,00 € : 11,00 €
-+
18
P/N (SKU): A000-030006
Part Name: SIDE STAND BOLT
Effective: 2023-08-02
Alternative parts:
Price: 2,50 € : 2,50 €
-+
19
P/N (SKU): 9RHV-332100-1200
Part Name: TENSION WHEEL ASSY
Effective: 2023-08-02
Alternative parts:
Price: 6,00 € : 6,00 €
-+
20
P/N (SKU): 30306-080112
Part Name: WASHER
Effective: 2023-08-02
Alternative parts:
Specification: φ8
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 30903-0201610
Part Name: COTTER PIN
Effective: 2023-08-02
Alternative parts:
Specification: φ2×16
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 9RHV-332102-1000
Part Name: TENSIONER SPRING
Effective: 2023-08-02
Alternative parts:
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 30303-100112
Part Name: WASHER
Effective: 2024-06-21
Alternative parts:
Specification: φ10
Price: 1,50 € : 1,50 €
-+
