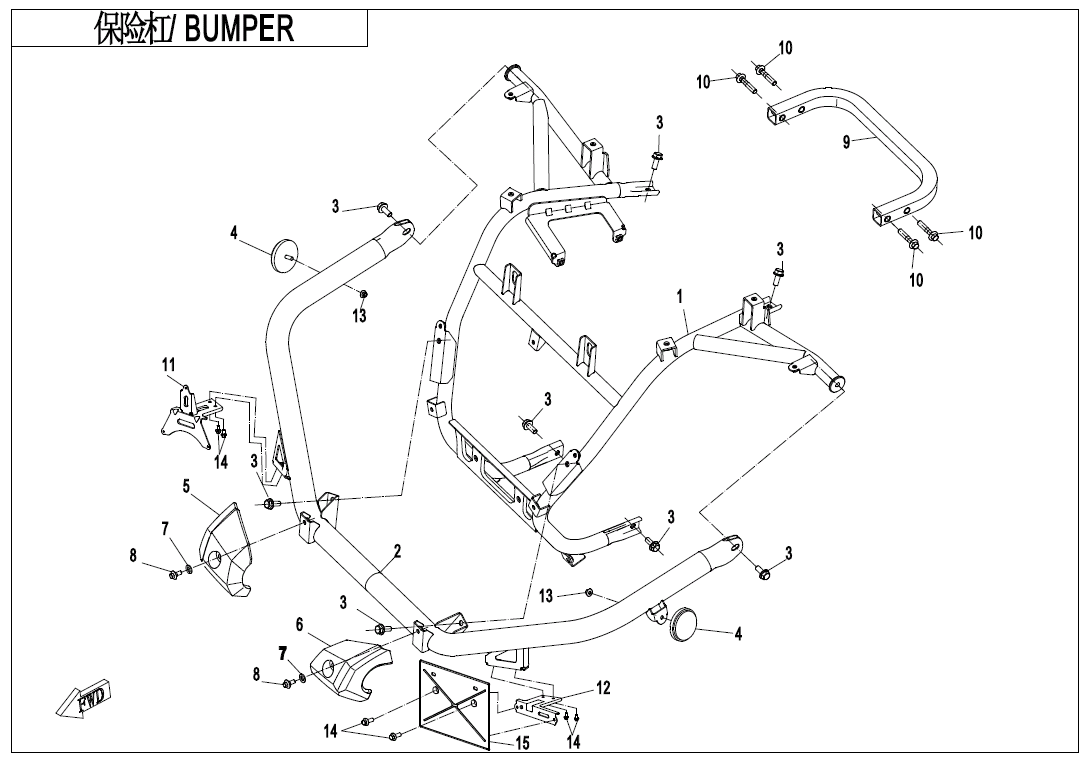

BUMPER - F23

BUMPER - F23

No.

01
P/N (SKU): 9GQV-033000-1500
Part Name: FRONT BRACKET ASSY
Effective: 2021-07-08
Alternative parts: 9GQV-033000-1501
Price: 135,00 € : 135,00 €
01
P/N (SKU): 9GQV-033000-1501
Part Name: FRONT BRACKET ASSY
Effective: 2022-02-09
Alternative parts: 9GQV-033000-1502
Price: 100,00 € : 100,00 €
02
P/N (SKU): 9GQA-231000
Part Name: FRONT BUMPER ASSY
Effective: 2021-07-08
Alternative parts:
Specification: PLASTIC POWDER
Price: 69,00 € : 69,00 €
-+
03
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2021-07-08
Alternative parts: 30006-080020810
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
04
P/N (SKU): 9DQV-160920-6001-M1
Part Name: FRONT SIDE REFLECTOR
Effective: 2021-07-08
Alternative parts:
Price: 2,50 € : 2,50 €
-+
05
P/N (SKU): 9GQ0-041042-10000
Part Name: LH DAMPER
Effective: 2021-07-08
Alternative parts:
Price: 6,50 € : 6,50 €
-+
06
P/N (SKU): 9GQ0-041043-10000
Part Name: RH DAMPER
Effective: 2021-07-08
Alternative parts:
Price: 7,00 € : 7,00 €
-+
07
P/N (SKU): 30306-100110
Part Name: WASHER
Effective: 2021-07-08
Alternative parts: 30306-100112
Specification: 10
Price: 2,00 € : 2,00 €
08
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2021-07-08
Alternative parts:
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 9GQ0-232000-30000
Part Name: REAR BUMPER ASSY
Effective: 2021-07-08
Remarks: LOF
Alternative parts:
Price: 27,00 € : 27,00 €
-+
09
P/N (SKU): 9GQ0-232000
Part Name: REAR BUMPER ASSY
Effective: 2021-07-08
Alternative parts: 9GQ0-232000-20000
Price: 20,00 € : 20,00 €
10
P/N (SKU): 30006-080040810
Part Name: BOLT
Effective: 2021-07-08
Alternative parts:
Specification: M8×40
Price: 2,00 € : 2,00 €
-+
11
P/N (SKU): 9GQA-230010
Part Name: BRACKET ASSY, SPEED LIMIT SIGN
Effective: 2021-07-08
Alternative parts:
Price: 8,50 € : 8,50 €
-+
12
P/N (SKU): 9GQA-233010
Part Name: BRACKET, LICENSE PLATE
Effective: 2021-07-08
Alternative parts:
Price: 60,00 € : 60,00 €
-+
13
P/N (SKU): 30204-060810
Part Name: NUT
Effective: 2021-07-08
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-07-08
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 7000-044601
Part Name: BASE PLATE, FRONT LICENSE
Effective: 2021-07-08
Alternative parts:
Price: 8,00 € : 8,00 €
-+
